Legend Valve 301-107PNL 1-1/2 FNPT x PRESS P-571NL Dielectric Union

Product Description

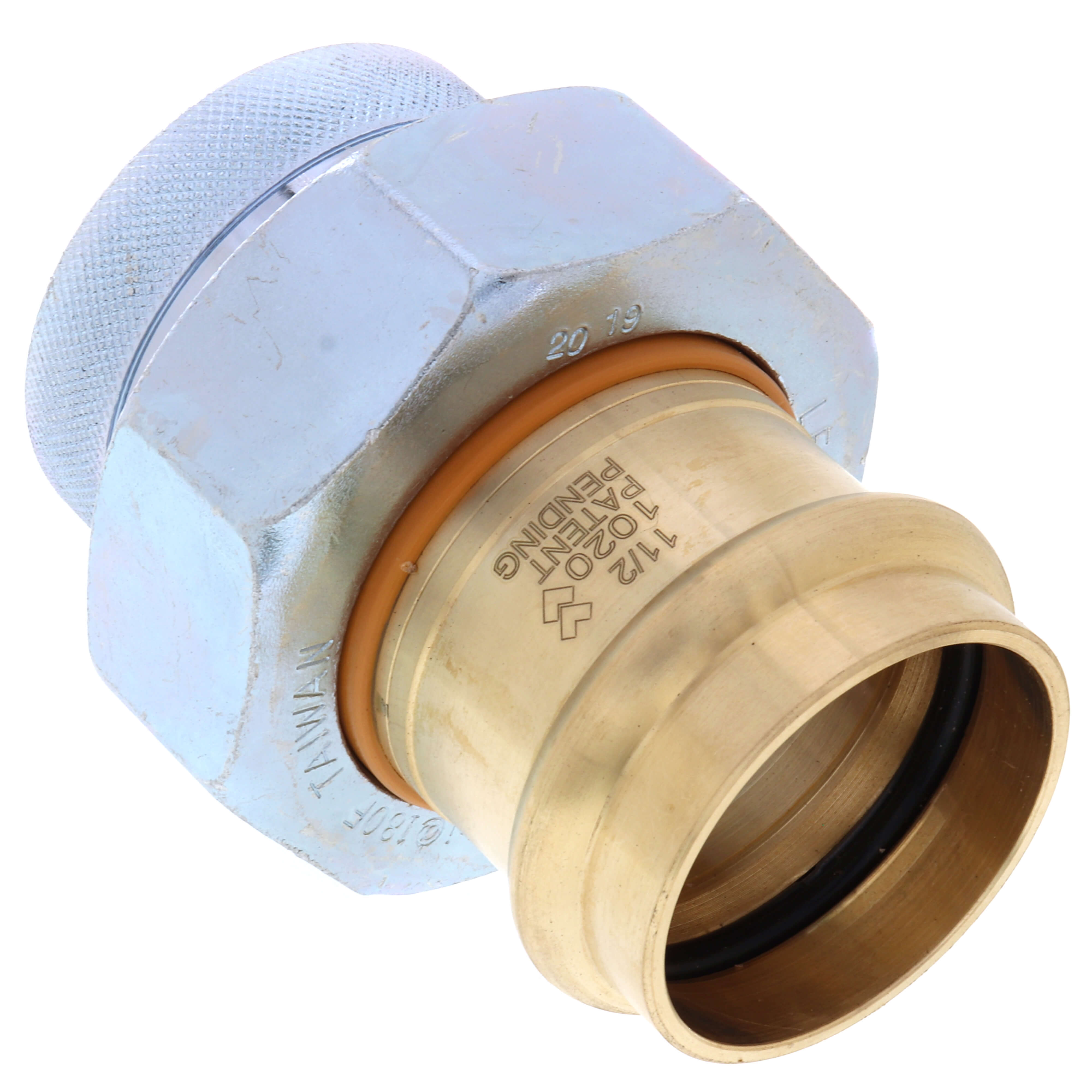

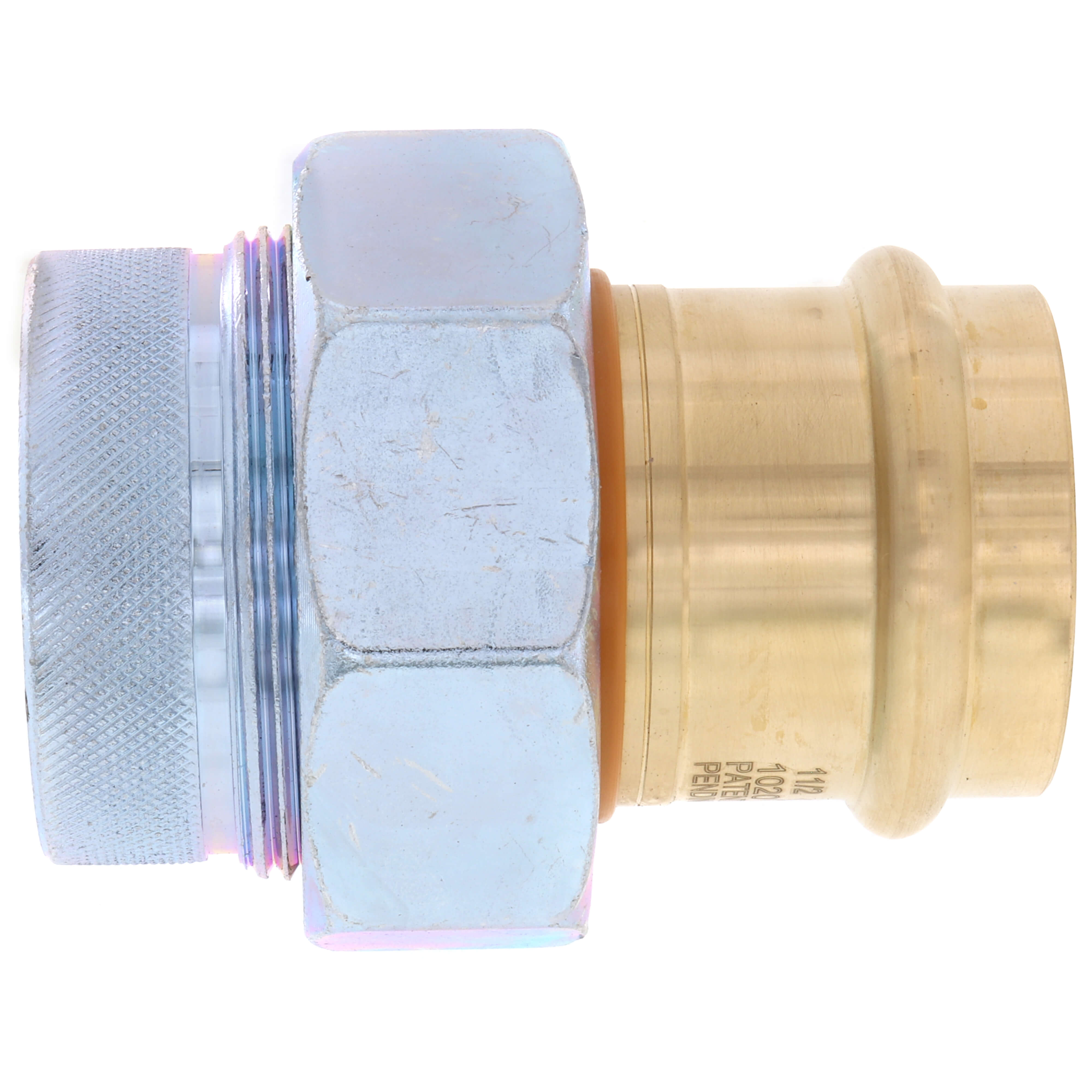

The Legend Valve model 301-107PNL is a 1-1/2 FNPT by PRESS P-571NL dielectric union. This fitting is suitable for both residential and commercial plumbing applications, meeting lead-free standards for potable water systems.

• Lead-free construction for potable water compliance.
• Designed for reducing galvanic corrosion and stray current.
• Galvanized forged steel for durability and strength.

Product Highlights

The P-571NL dielectric union is crafted to connect dissimilar metals while ensuring a positive seal through its unique gasket design.

Product Information

Standard Information

• Nominal Size: 1-1/2 inches
• Material: Forged steel, lead-free

Technical Specifications

• Connection Type: FNPT x PRESS
• Cold Working Pressure: 200 psi up to 180 degrees Fahrenheit
• Dimensions: 3.51 inches height
• Finish: Hot dipped galvanized
• Manufacturer: Legend Valve
• Method of Manufacture: Forged
• Standards/Approvals: NSF/ANSI 61, NSP/ANSI 372, ANSI/ASME B16.51
