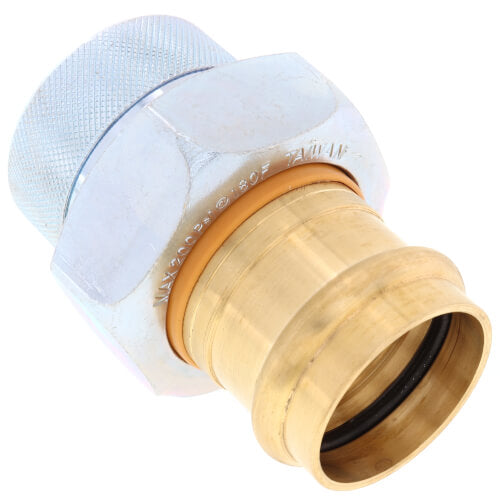

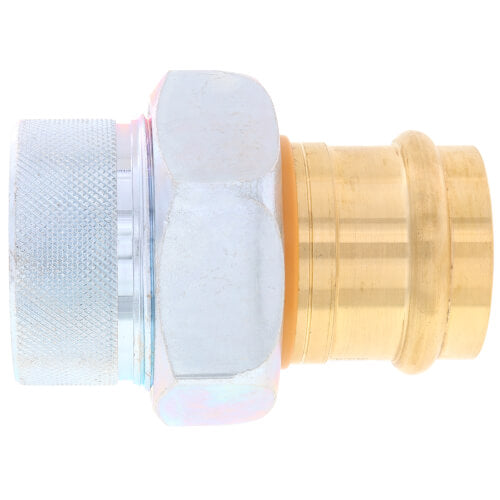

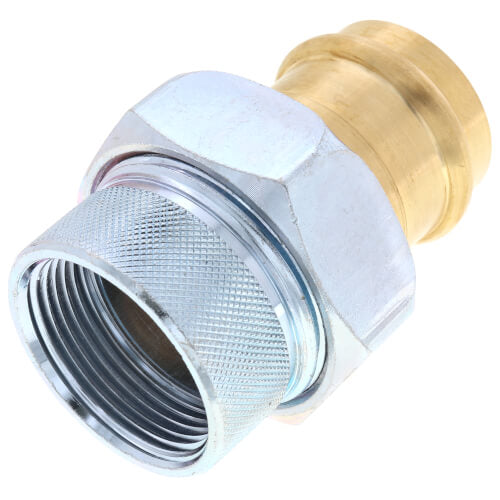

Legend Valve 301-106PNL 1-1/4 FNPT x Press P-571NL Dielectric Union

Product Description

The Legend Valve 301-106PNL Dielectric Union is designed to provide a secure connection in plumbing applications. Featuring a 1-1/4 inch FNPT x Press connection, this model P-571NL is optimized for both residential and commercial use.

• Constructed from galvanized forged steel
• Lead-free, compliant with National plumbing law
• Designed for installation on ASTM B88 types K, L, and M copper tubing

Product Highlights

This dielectric union is crafted to prevent galvanic corrosion between dissimilar metals. It is equipped with a self-aligning, non-conductive elastomer gasket and thermoplastic insert that ensures complete isolation between tubing and piping ends. Suitable for use in potable water systems, the P-571NL can handle up to 200 psi and temperatures up to 180 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 301-106PNL

Technical Specifications

• Nominal Size: 1-1/4 inches
• Connection Type: FNPT x Press
• Material: Galvanized forged steel
• Pressure Rating: 200 psi CWP
• Temperature Rating: Up to 180 degrees Fahrenheit
• Length: 3.24 inches
• Height: 2.75 inches
• Domestic/Import: Import
• Series: P-571NL
