Legend Valve 301-106NL 1-1/4 inches - FIP x Sweat Dielectric Union

Product Description

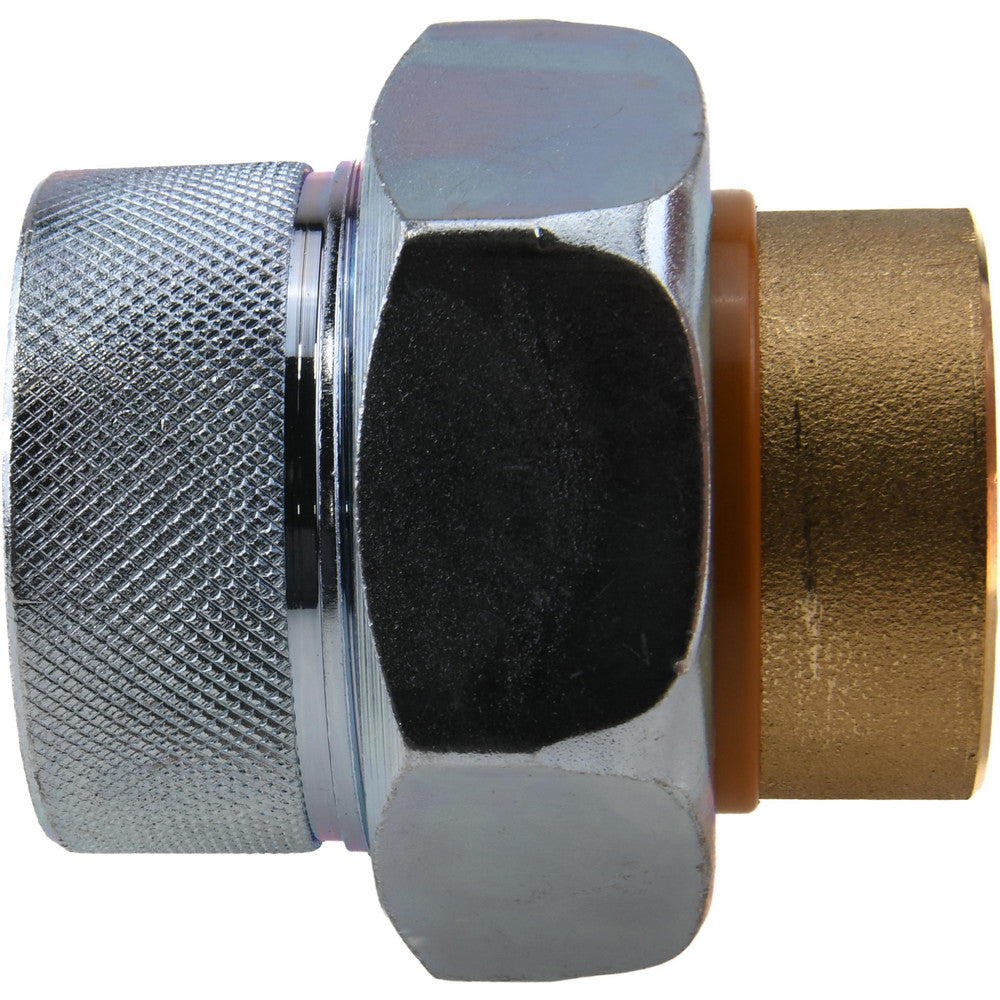

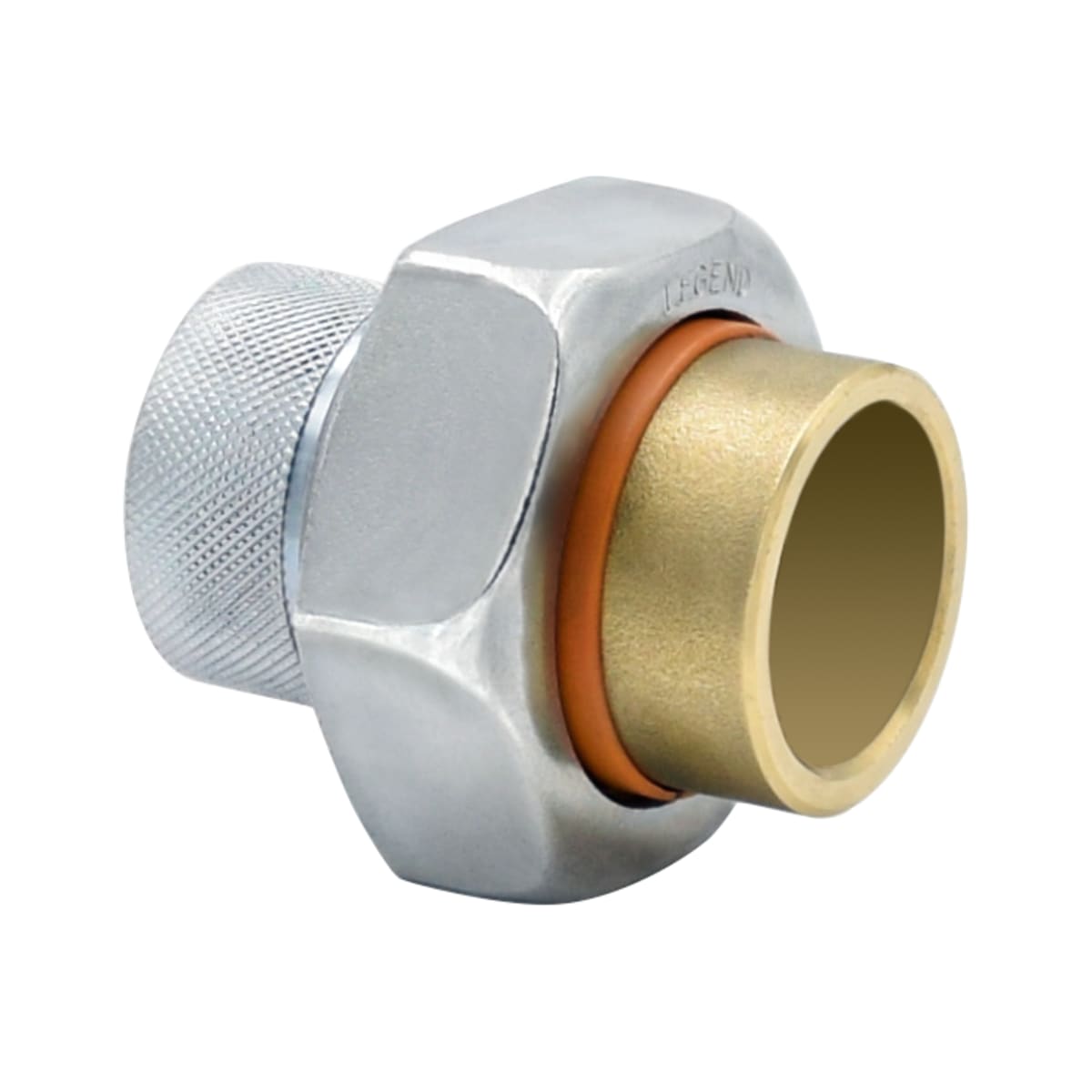

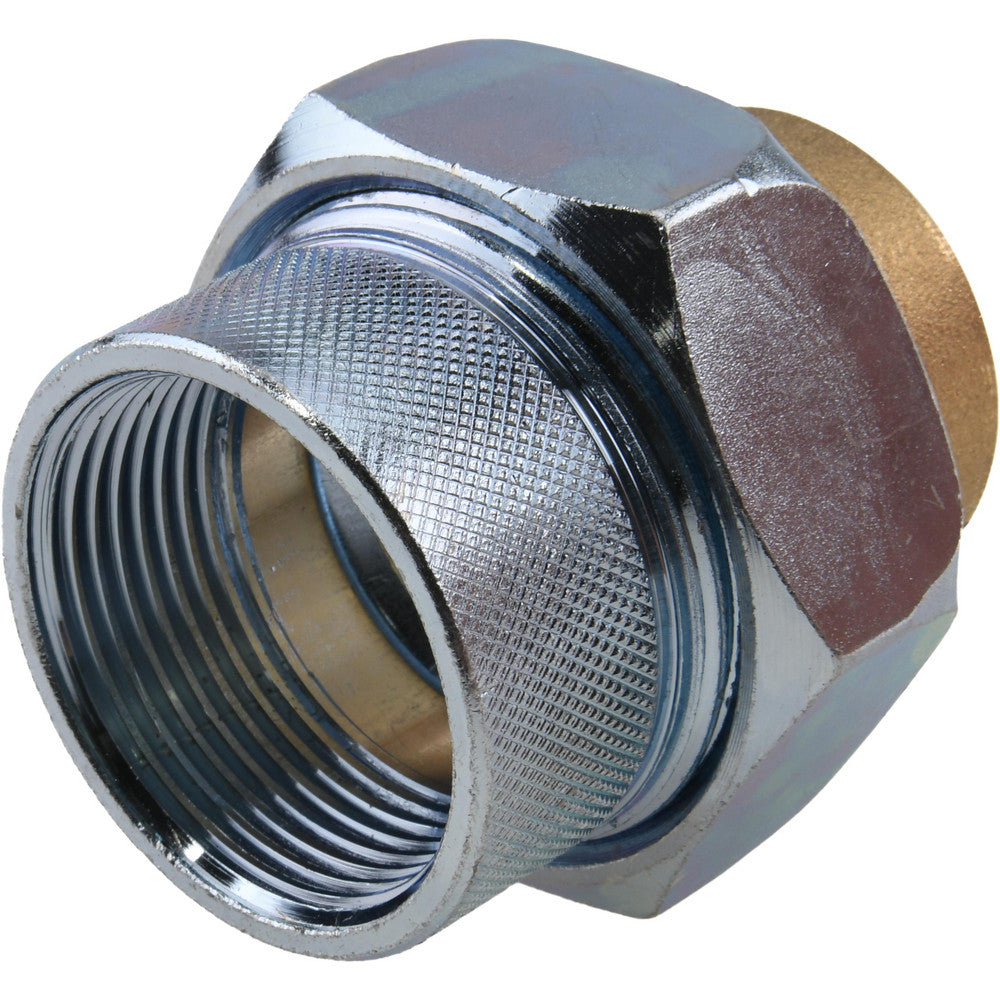

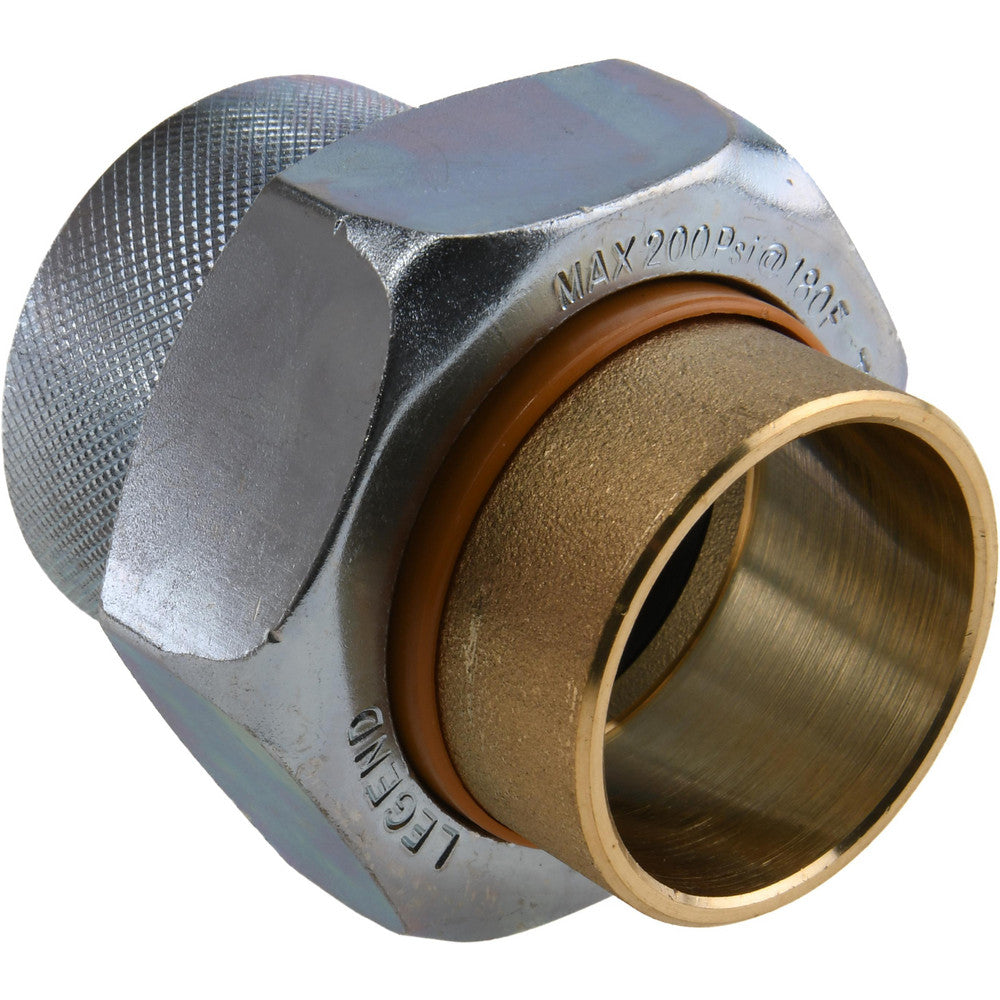

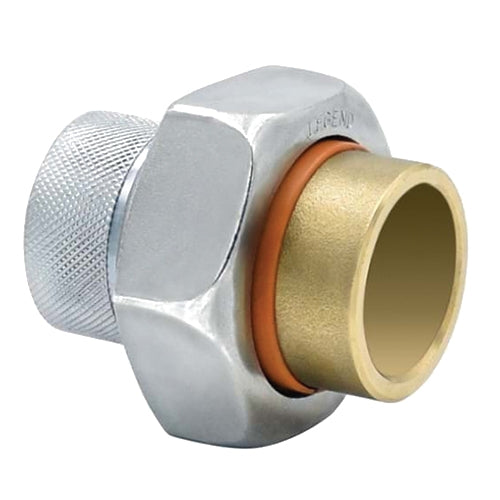

The Legend Valve 301-106NL is a 1-1/4" - FIP x Sweat Dielectric Union. Designed to reduce stray current and galvanic corrosion where two dissimilar metals are joined. It is constructed of forged carbon steel with a galvanized finish and includes a lead free forged brass solder adapter, EPDM rubber gasket and ABS resin insert insulator. Suitable for potable water applications.

• Designed to reduce stray current and galvanic corrosion
• Forged carbon steel, galvanized body
• Suitable for potable water applications

Product Highlights

The Legend Valve 301-106NL Dielectric Union is ideal for residential and commercial applications. It is designed to prevent corrosion caused by galvanic action.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 301-106NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• MPN: 301-106NL
• Brand: Legend Valve
• Size: 1-1/4"
• Type: Union
• Connection_Type: FIP x Sweat
• Domestic/Import: Import
• End Style: FNPT x C
• Finish: Galvanized
• Length: 2.48 in
• Material: Forged Carbon Steel
• Nominal Size: 1-1/4 in
• Pressure Rating: 200 psi CWP
• Series: T-571NL
• Temperature Rating: 180 deg F
• Connection Size: 1-1/4 in
• Connection Type: FNPT x Sweat
• Item Name: Dielectric Union
• Method of Manufacturer: Forged
• Model: T-571NL
• Application: For Potable Water Applications
• Standards and Approvals: ANSI/ASME B1.20.1/B16.39/B16.18 | NSF 372 | U.S. Federal Public Law 111-380
• Sweat Size: 1.250
• Pipe Size: 1.25 in
• End Connection: FNPT
• Threaded: Threaded
• Maximum Working Pressure: 200 psi
• Maximum Working Temperature: 180 F
• Lead Free: No
• Standards: ANSI; ASME B1.20.1
• UNSPSC Code: 40173300
• CONFIGURATION: FNPT x Sweat
