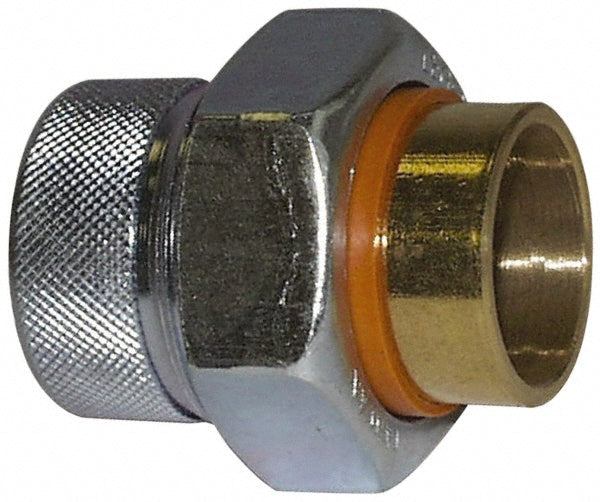

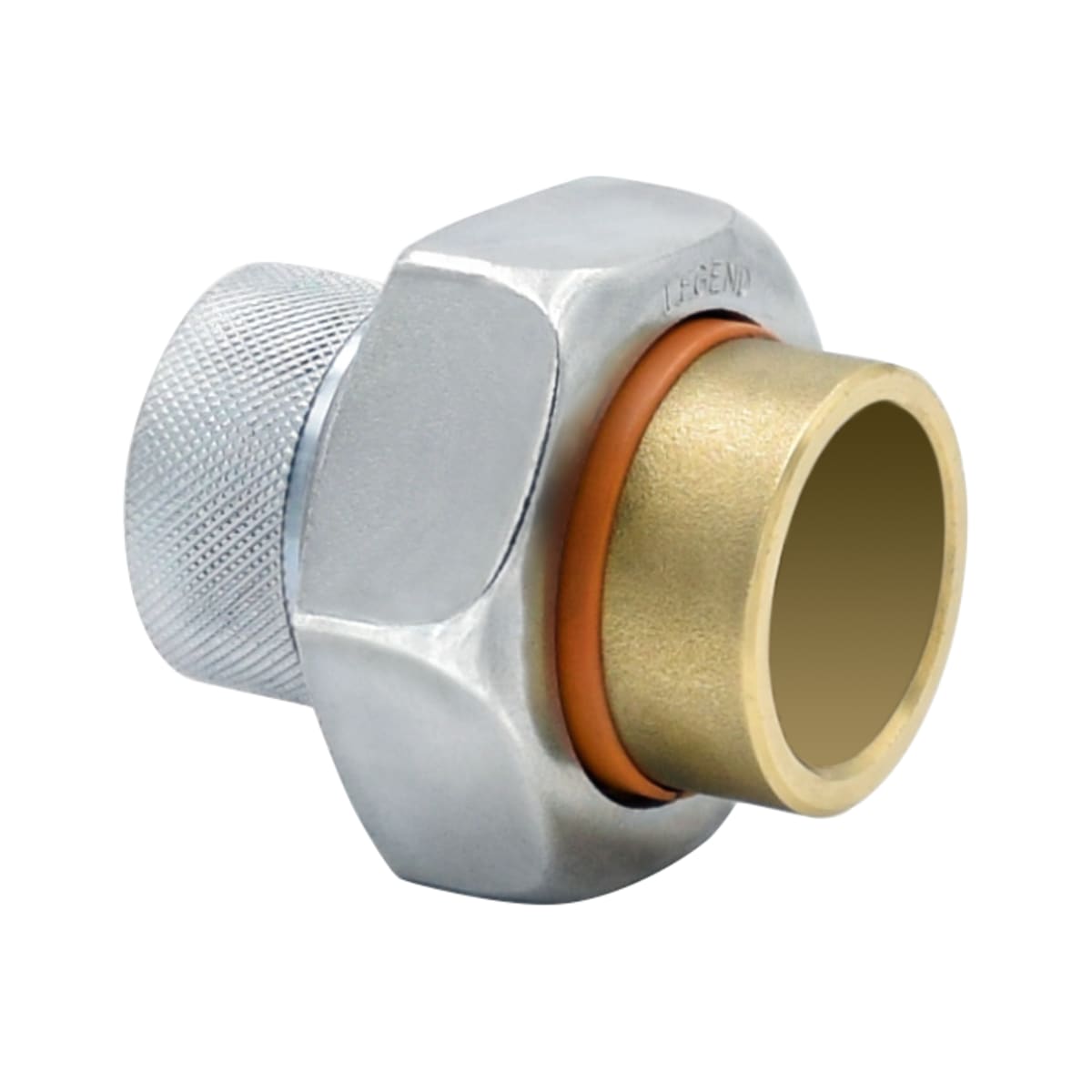

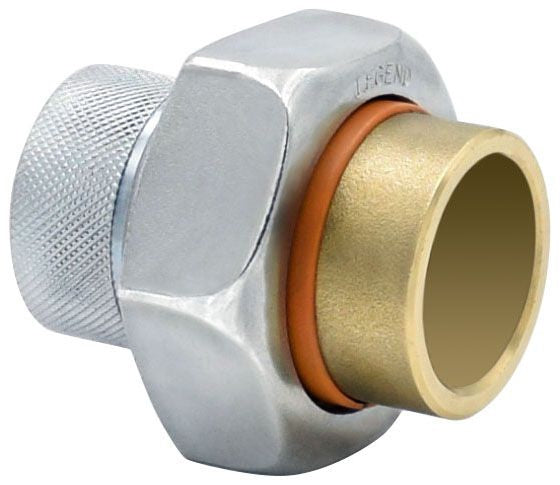

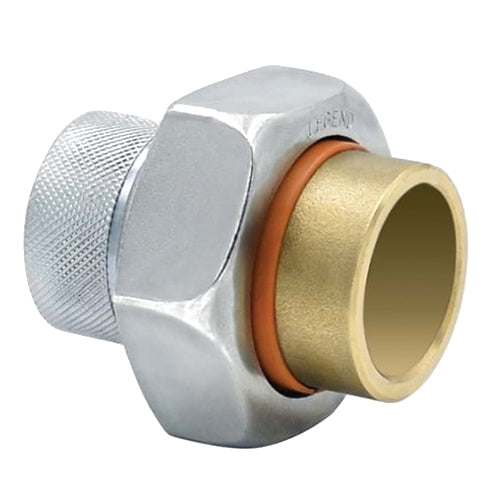

Legend Valve 301-104NL T-571 3/4 Inch Dielectric Union

Product Description

The Legend Valve 301-104NL is a dielectric union fitting with a straight type and a size of 3/4 inch. Constructed from carbon steel with a galvanized finish, it is designed for residential and commercial applications. It is lead-free and meets standards NSF/ANSI 372 and ANSI/ASME B1.20.1/B16.22.

• Designed to Reduce Galvanic Corrosion Where Two Dissimilar Metals are Joined
• Self-Aligning, Non-Conductive Elastomer Gasket and Thermoplastic Insert Create a Positive Seal and Complete Isolation Between the Tubing and Piping Ends
• High Strength, Galvanized Forged Steel Construction Make them Ideal for Residential and Commercial Applications

Product Highlights

The Legend Valve Dielectric Union Fitting is ideal for preventing corrosion in plumbing systems.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 301-104NL
• Country of Origin: Import

Technical Specifications

• Applicable Standard: NSF/ANSI 372, ANSI/ASME B1.20.1/B16.22
• Application: Residential, Commercial, Preventing corrosion caused by galvanic action
• End Connection: FNPT
• Finish: Galvanized
• Manufacturer Name: Legend Valve
• Manufacturer Part Number: 301-104NL
• Material: Carbon Steel, Forged Steel
• Material Specification: AISI 1008A
• Pressure Rating: 200 psi CWP
• Process: Forged
• Series/Model: T-571NL
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• Temperature Rating: 180 Deg F
• Type: Dielectric, Straight
• Nominal Size: 3/4 in
• Connection Size: 3/4 in
• Connection Type: FNPT x Sweat
• Model: T-571NL
• Diameter: 3/4 in
• Sweat Size: 0.750
• Pipe Size: 0.75 in
• Standards: ANSI; ASME B1.20.1
