Legend Valve 301-103NL Dielectric Union 1/2 inches FNPT x Sweat

Product Description

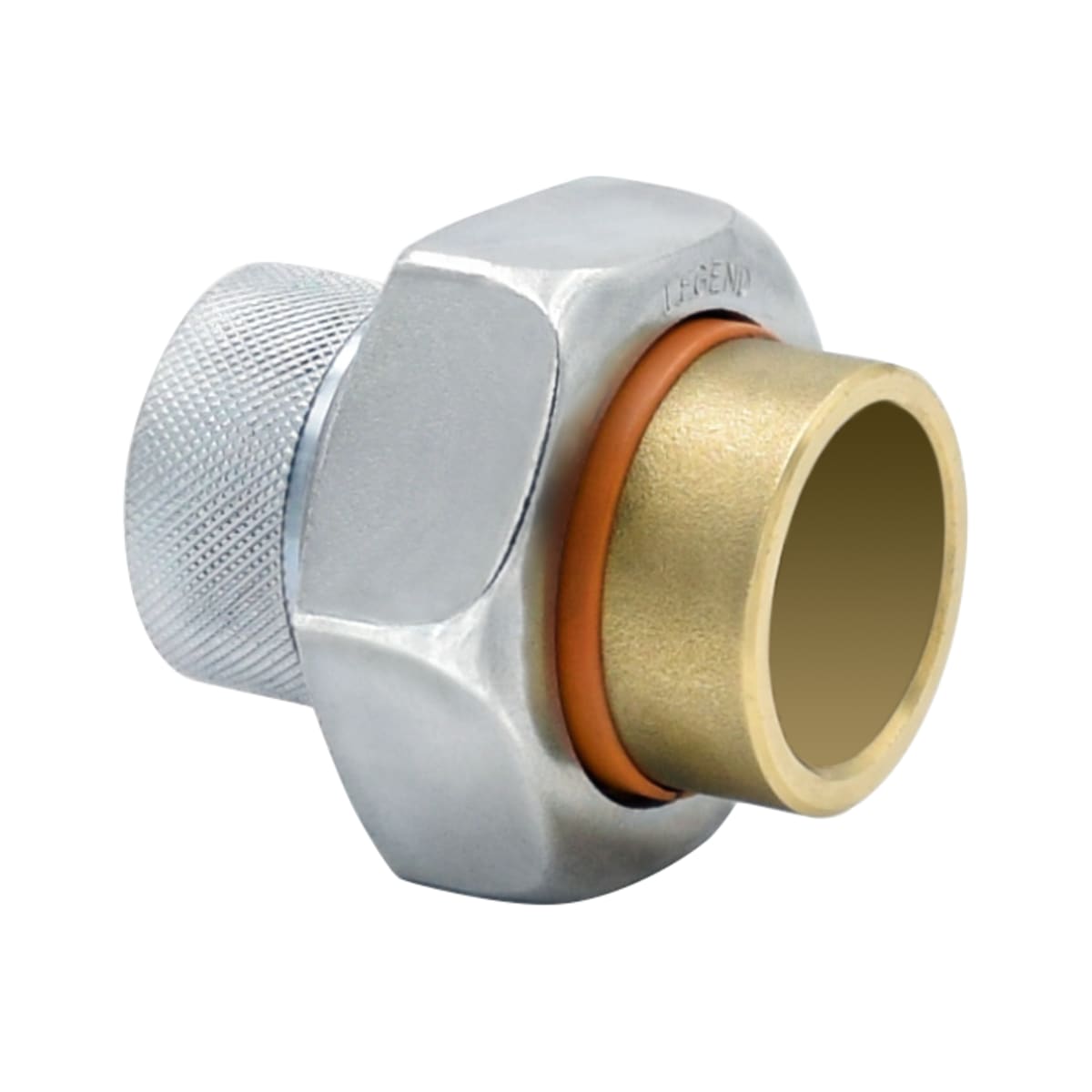

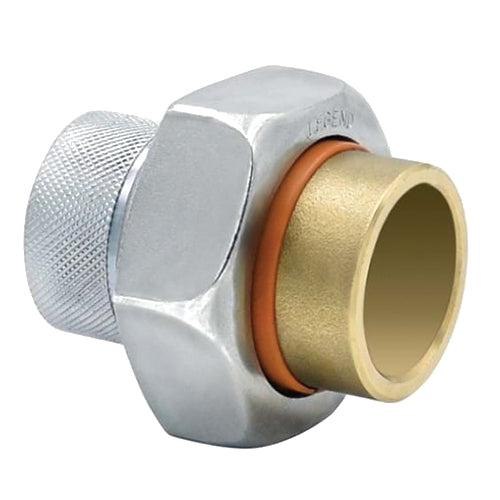

The Legend Valve 301-103NL is a T-571NL series dielectric union with a 1/2 in nominal size and FNPT x Sweat end style. It is designed to reduce stray current and galvanic corrosion when connecting dissimilar metals. The union features a galvanized forged carbon steel body and a self-aligning, non-conductive elastomer gasket.

• UL listed and FM approved for fire suppression
• Reduces stray current and galvanic corrosion
• Suitable for residential and commercial applications

Product Highlights

The Legend Valve dielectric union is made of forged carbon steel with a galvanized finish and is lead-free. It is suitable for potable water applications.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 301-103NL
• Country of Origin: US

Technical Specifications

• Brand: LEGEND VALVE
• MPN: 301-103NL
• Nominal Size: 1/2 in
• End Style: FNPT x C
• Length: 1.84 in
• Pressure Rating: 200 psi
• Temperature Rating: 180 deg F
• Finish: Galvanized
• Material: Steel
• Series: T-571NL
• Domestic/Import: Import
• Connection Size: 1/2 in
• Connection Type: FNPT|Sweat
• Item Name: Dielectric Union
• Method of Manufacturer: Forged
• Model: T-571NL
• Pressure Rating CWP: 200 psi
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type 1: FNPT
• Connection Type 2: Sweat
• Dimension Standards: ANSI/ASME B1.20.1
• Material Construction: Forged Carbon Steel
