Legend Valve 204-109 2-1/2 inches PVC COMP. Coupling

Product Description

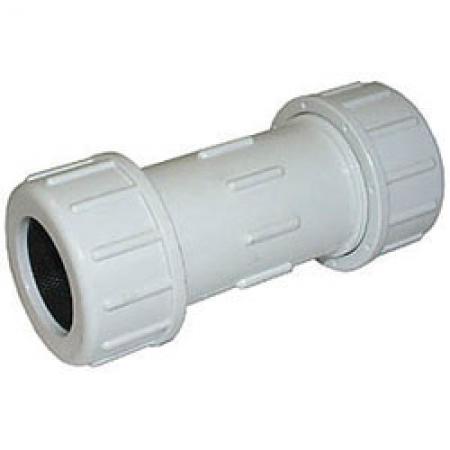

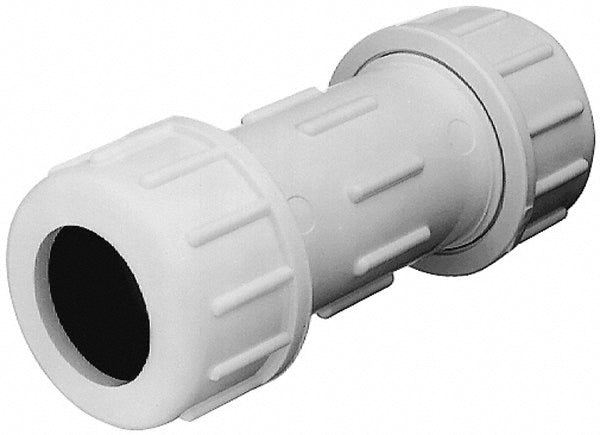

The LEGEND VALVE 204-109 is a long coupling fitting/connector with a 2-1/2 in nominal size and compression end style. Constructed from corrosion-proof, virgin PVC resin, it features high-performance commercial-grade NBR rubber gaskets. Designed for SCH 40/STD and SCH 80/XH pipe, it can handle pressures up to 150 psi at 73 deg F.

• Long-pattern bodies and large compression nuts add rigidity and minimize pipe deflection
• Constructed of corrosion proof, virgin PVC resin
• Compression-type end connections are designed to fit onto SCH 40/STD or SCH 80/XH pipe of various material types PVC, steel or red brass

Product Highlights

This PVC compression coupling is ideal for slip-on repairs and provides a secure seal for various piping materials. Suitable for use in plumbing and industrial applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 204-109
• Country of Origin: Taiwan, Province of China

Technical Specifications

• End Style: Compression
• Fitting/Connector Type: Coupling
• Material: PVC
• Nominal Size: 2-1/2 in
• Pressure Rating: 150 psi
• Schedule Rating: SCH 40/STD and SCH 80/XH
• Seal Material: NBR Buna-N Rubber Gasket
• Temperature Rating: 73 deg F
• Type: Long
• Connection Type: Comp (IPS) x Comp (IPS)
• MPN: 204-109
• Size: 2-1/2"
• ItemPackageQuantity: 1
• Wog Rating: 150
• Maximum Working Temperature: 140 F
• Lead Free: Yes
• UNSPSC Code: 40172600
