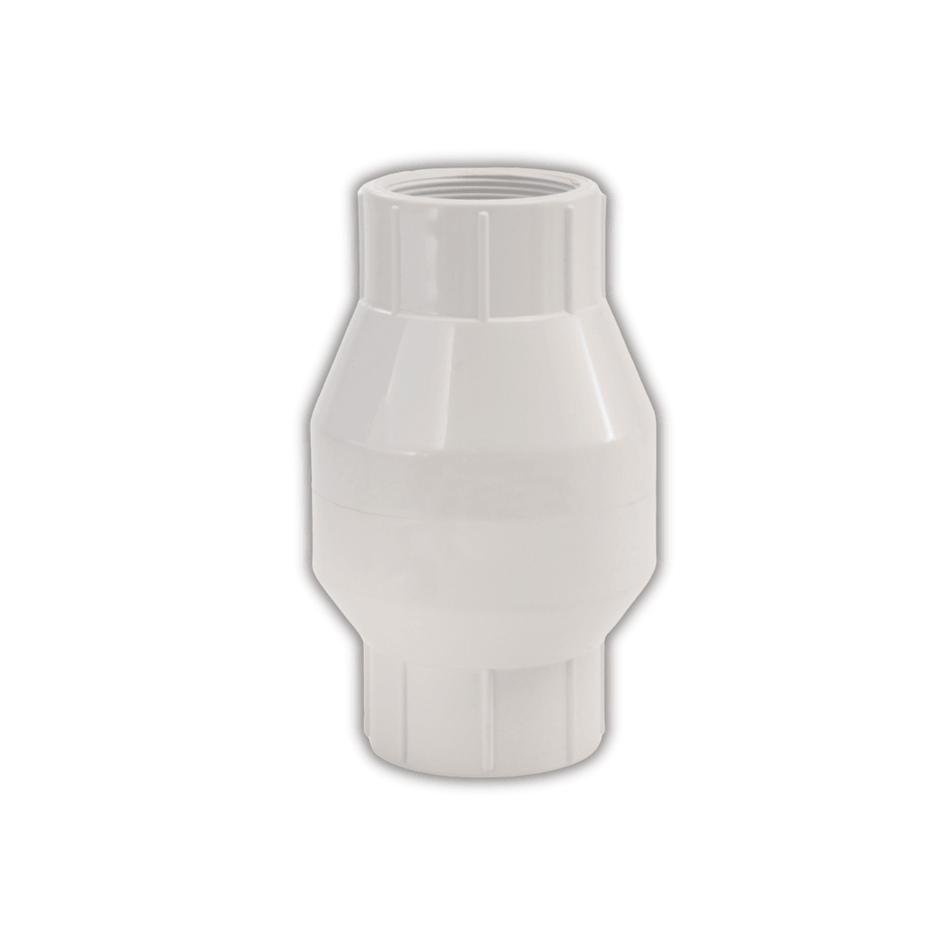

Legend Valve 203-205 1 S-611 PVC Check Valve Solvent End Style Replacement MPN

Product Description

The Legend Valve 203-205 is a one-inch PVC check valve designed for solvent welded connections. This check valve features a spring actuator and operates effectively at a maximum pressure of one hundred fifty psi CWP and a temperature rating of one hundred forty degrees Fahrenheit. The inlet to outlet length is five and one-quarter inches.

• Accepts both Schedule 40 and Schedule 80 PVC pipe
• Soft-seated poppet allows for silent operation
• Can be installed vertically or horizontally

Product Highlights

The design of the Legend Valve 203-205 promotes linear flow with minimal pressure drop. It is manufactured from one hundred percent virgin PVC resin.

Product Information

Standard Information

• Brand: Legend Valve
• MPN: 203-205

Technical Specifications

• Actuator Type: Spring
• Body Material: PVC
• Nominal Size: 1 in
• End Style: Solvent
• Inlet to Outlet Length: 5-1/4 in
• Pressure Rating: 150 psi CWP
• Temperature Rating: 140 deg F
• Softgoods Material: EPDM Seal
• Trim Material: PVC Connector Seat/Stainless Steel Spring
• Dimensions: 2.88 in H
• Warranty: 5 Years
