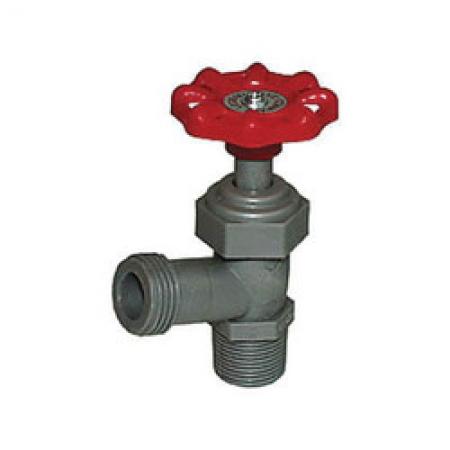

Legend Valve 202-553 1/2 T-625 Celcon Boiler Drain

Product Description

The Legend Valve 202-553 1/2 T-625 Celcon Boiler Drain is ideal for plumbing applications. This boiler drain valve features a nominal size of 1/2 inch and comes with MNPT end style. It can handle a pressure rating of 150 psi and a temperature range from -20 to 180 degrees Fahrenheit. This valve is suitable for various media, including gas, oil, and water.

• Nominal size of 1/2 inch
• Pressure rating of 150 psi
• Temperature range: -20 to 180 degrees Fahrenheit

Product Highlights

This boiler drain valve is naturally lead-free and includes a zinc-plated steel screw, polypropylene handwheel, Celcon stem and bonnet body, EPDM O-ring, washer, Celcon hard washer, and polyamide nylon 12 seat seal. This makes it highly durable and reliable for various applications.

Product Information

Standard Information

• Manufacturer: Legend Valve
• MPN: 202-553
• UPC: 662545010748

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Celcon
• Dimensions: 4.26 in
• End Style: MNPT
• Inlet to Outlet Length: 2.68 in
• Media: Gas/Oil/Water
• Nominal Size: 1/2 in
• Pressure Rating: 150 psi
• Series: T-625
• Softgoods Material: Polyamide Nylon 12 Seat Seal/EPDM O-Ring/EPDM Washer
• Temperature Rating: -20 to 180 deg F
• Trim Material: Celcon
• Manufacturer: Legend Valve
