Product Description

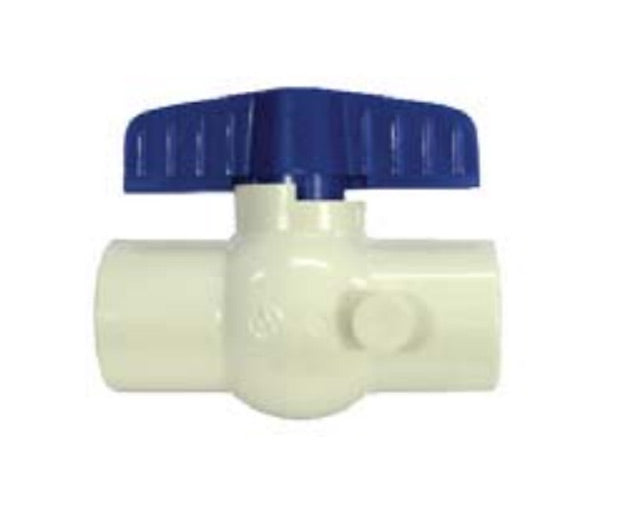

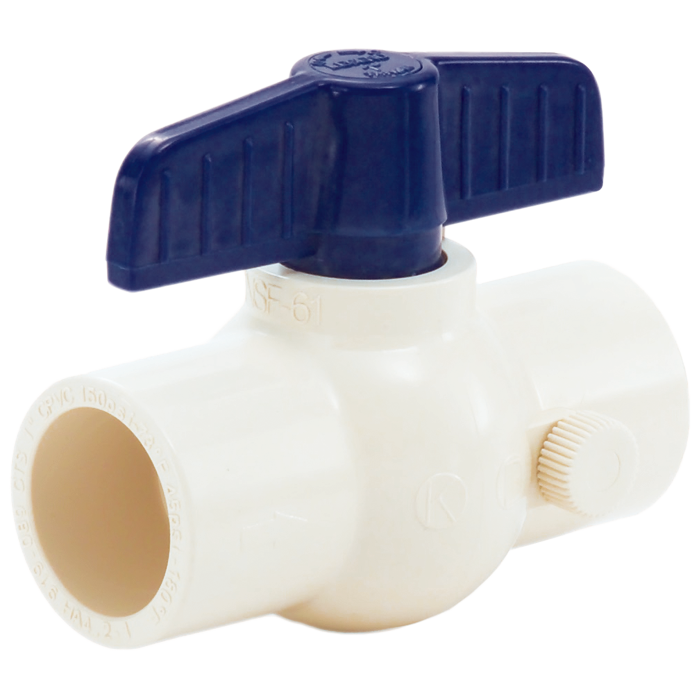

The LEGEND VALVE 202-424 is a CPVC ball valve with a 3/4 inch nominal size. Features a compact type and is lead-free. Constructed from ASTM D1784 CLASS 23447 CPVC body material with solvent x solvent end connections. Designed for full port use with a T-handle actuation.
- Compact Type
- Lead-Free
- Full port, solid ball design minimizes pressure drop
Product Highlights
The LEGEND VALVE CPVC ball valve is designed for durability and efficient flow control in plumbing systems.
Product Information
Standard Information
-
Brand: LEGEND VALVE
-
Manufacturer Part Number: 202-424
Technical Specifications
-
Applicable Standard: NSF, ISO 9002
-
Temperature Rating: 180 DEG F
-
Inclusions/Features: ZINC PLATED STEEL HANDLE RETAINING SCREW, WASTE CAP, DRAIN
-
Body Material: ASTM D1784 CLASS 23447 CPVC
-
Pressure Rating: 150 PSI CWP AT 73 DEG F
-
End Connection: SOLVENT X SOLVENT
-
Handle Material: IMPACT GRADE ABS PLASTIC
-
Stem O-Ring Seal Material: EPDM
-
End to End Distance: 3.25 INCH
-
Actuation Type: T-HANDLE
-
Seat Material: DUPONT NON-STICK PTFE
-
Stem Material: ASTM D1784 CLASS 23447 CPVC
-
Type: FULL PORT
-
Ball Material: ASTM D1784 CLASS 23447 CPVC
-
Nominal Size: 3/4 INCH X 3/4 INCH
-
Model: S-606
-
Inlet to Outlet Length: 3.27 in
-
Material Standard: ASTM D1784-23447
-
Number of Handles: 1
-
Number of Ports/Ways: 2
-
Operator Type: Handle
-
Port Type: Full
-
Series: S-606 Series
-
Configuration: Solvent x Solvent; Full Port Ball Design
-
Top to Inlet Center: 1.77 in
