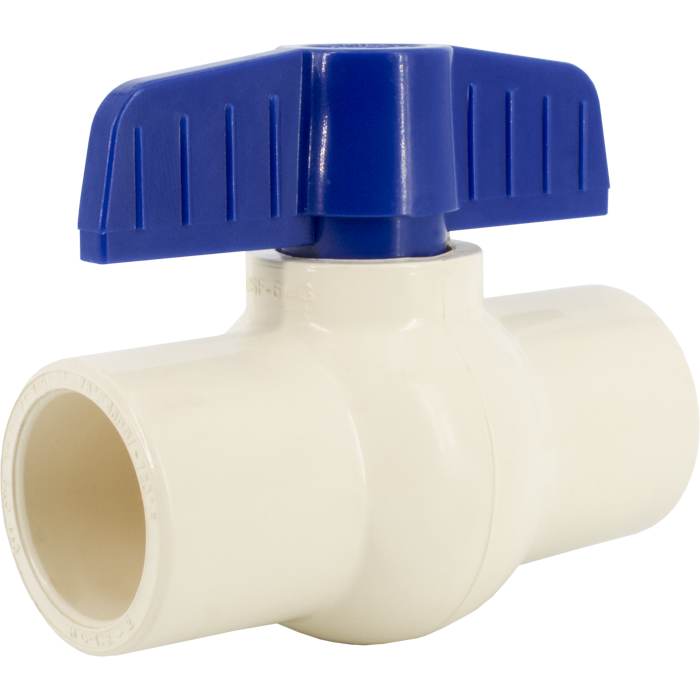

Legend Valve 202-407 1-1/2 S-605 CPVC Ball Valve

Product Description

The Legend Valve 202-407 is a 1-1/2 inch S-605 CPVC ball valve optimized for solvent applications. It is designed for durability and features a compact body that supports easy installation. The valve operates under a pressure rating of 150 psi and is suitable for oil and water media, making it ideal for a variety of plumbing tasks.

• Constructed with ASTM D1784 virgin CPVC resin
• Features a T-Handle actuator for manual operation
• Full port design allows maximum flow and minimum pressure drop

Product Highlights

This valve is compact, reliable, and facilitates solvent weld installation on CTS CPVC tubing, addressing various plumbing requirements.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Nominal Size: 1-1/2 inches

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Port Type: Full
• Pressure Rating: 150 psi
• Temperature Rating: 180 degrees Fahrenheit
• Inlet to Outlet Length: 4-1/2 inches
