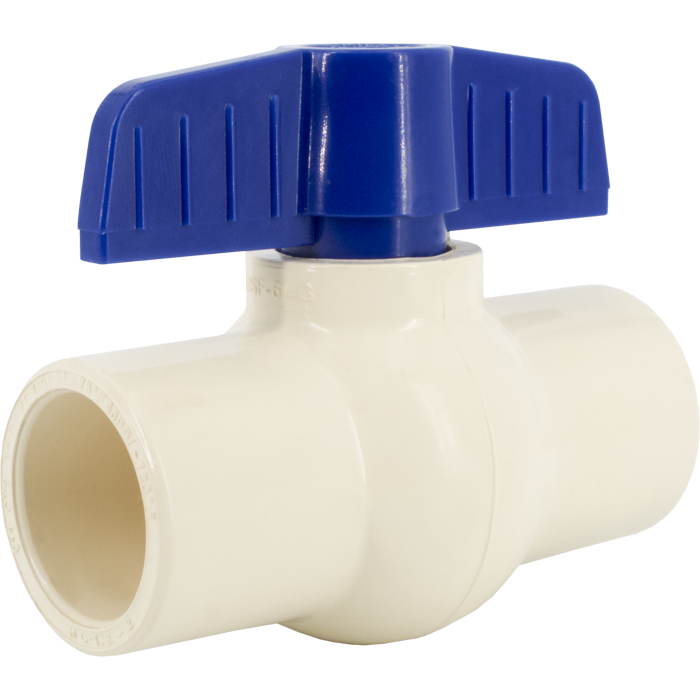

LEGEND VALVE 202-406 1-1/4 S-605 CPVC BALL VALVE

Product Description

The LEGEND VALVE 202-406 is a 1-1/4 inch S-605 CPVC ball valve designed for plumbing applications. This valve offers reliable performance and durability under various conditions. It is suitable for oil and water media and is ideal for solvent weld installation onto CTS CPVC tubing.

• Constructed from ASTM D1784 virgin CPVC resin
• Pressure rating of 150 psi and temperature rating of 180 degrees Fahrenheit
• Compact design with low torque operation

Product Highlights

This valve features large ports for maximum flow with minimum pressure drop. It has a molded-in-place body design that absorbs shock loads effectively. The valve is equipped with a T-handle for easy operation, making it suitable for various installation scenarios.

Product Information

Standard Information

• Brand: LEGEND VALVE
• MPN: 202-406

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Color: Bone
• Dimensions: 3.68 in H
• Domestic/Import: Import
• End Style: Solvent
• Inlet to Outlet Length: 4.19 in
• Media: Oil/Water
• Nominal Size: 1-1/4 in
• Port Type: Full
• Pressure Rating: 150 psi
• Series: S-605
• Softgoods Material: EPDM
• Temperature Rating: 180 degrees F
• Trim Material: CPVC Stem and Dupont PTFE Seat
