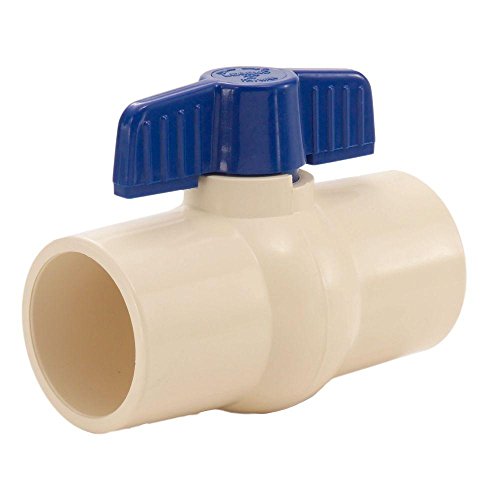

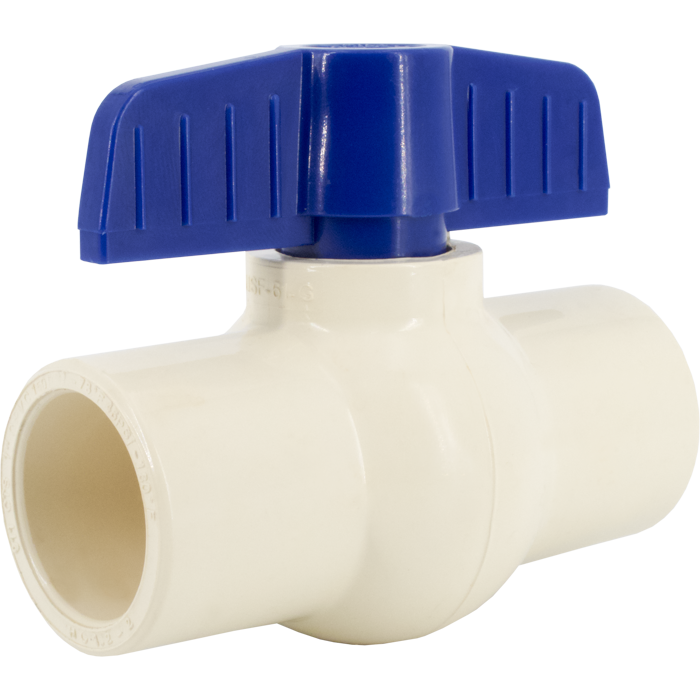

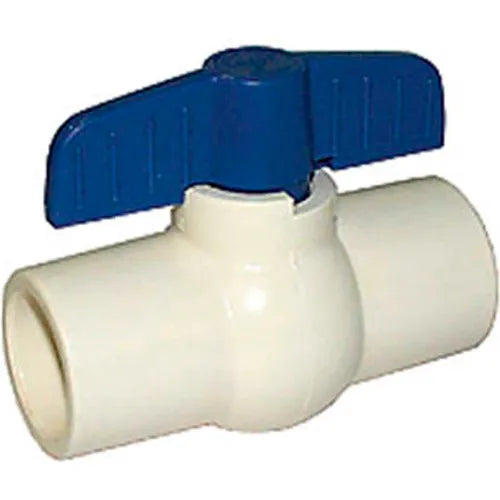

Legend Valve 202-405 S-605 CPVC Ball Valve 1 in

Product Description

The Legend Valve 202-405 S-605 compact CPVC ball valve has copper tube size ends and a large port, allowing maximum flow and minimum pressure drop or turbulence. Suitable for hot or cold water systems. Constructed of ASTM D1784 virgin CPVC resin.

• Compact CPVC ball valve
• Large port for maximum flow
• Suitable for hot or cold water systems

Product Highlights

The Legend Valve CPVC ball valve is suitable for hot or cold water systems. Large ports allow for maximum flow and minimum pressure drop.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 202-405
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Brand: Legend Valve
• Ratings: 150 PSI @ 73 0 0 0F
• Size: 1 in
• Valve Type: Full Port
• Width: 3-1/3 in
• Height: 2-1/9 in
• Length: 3-8/9 in
• Configuration: Solvent x Solvent
• Package Quantity: 1
• Manufacturers Part Number: 202-405
• MPN: 202-405
• UPC: 662545010564
• Product Type: MECHANICAL_COMPONENTS
• Manufacturer: LEGEND VALVE
• Product Group: BISS
• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Color: Bone
• End Style: Solvent
• Inlet to Outlet Length: 3-3/4 in
• Media: Oil/Water
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 150 psi
• Series: S-605
• Softgoods Material: EPDM
• Temperature Rating: 180 deg F
• Trim Material: CPVC
• Type: Compact
• Connection Type: Solvent Weld
• Handle Material: ABS
• Operator Type: T-Handle
• Material: CPVC
• Connection Style: Solvent
• Model: 202-405
