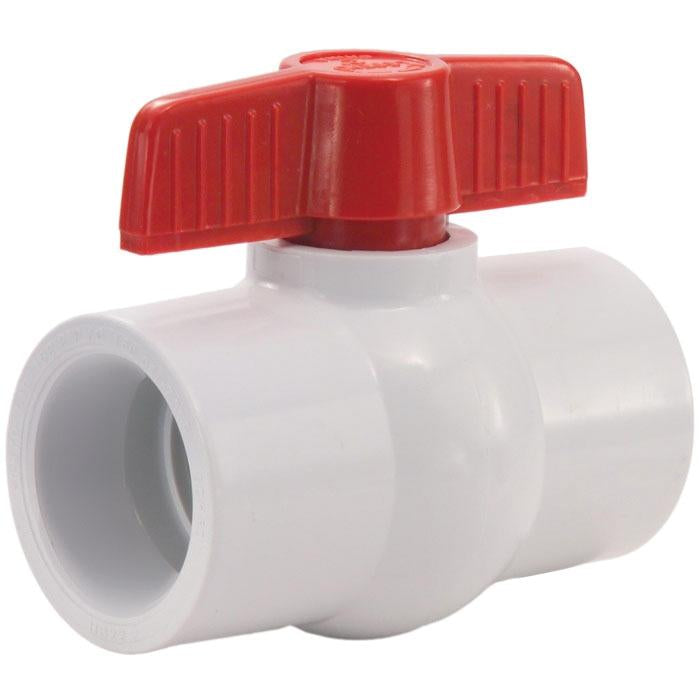

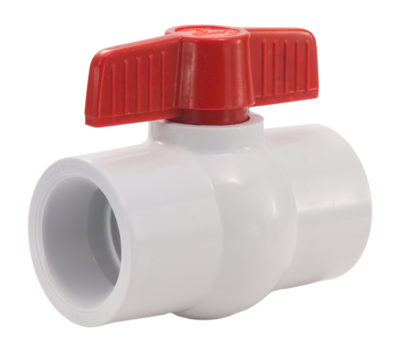

Legend Valve 201-456 S-600 PVC Ball Valve 1-1/4 inches

Product Description

The Legend Valve 201-456 S-600 PVC ball valve features solvent x solvent configurations. Made from heavy-duty, corrosion-proof, virgin PVC resin, it includes EPDM seats and a stem o-ring for durability. This valve is designed and certified for installation on schedule 40 PVC pipe, ensuring maintenance-free operation.

• NSF Listed
• Constructed of heavy-duty, corrosion-proof, virgin PVC resin
• Designed for schedule 40 PVC pipe installation

Product Highlights

The ball valve provides reliable service in plumbing, industrial, commercial, and hydronic applications.

Product Information

Standard Information

• Brand: Legend
• Model: 201-456

Technical Specifications

• Ratings: 150 p.s.i. @ seventy-three degrees Fahrenheit
• Size: 1-1/4 inches
• Configuration: Solvent x Solvent
• End To End Distance: 4.25 inches
• Actuation Type: T-Handle
• Applicable Standard: NSF, ISO 9002
• Temperature Rating: 140 degrees Fahrenheit
• Application: Plumbing, Industrial, Commercial, Hydronics
