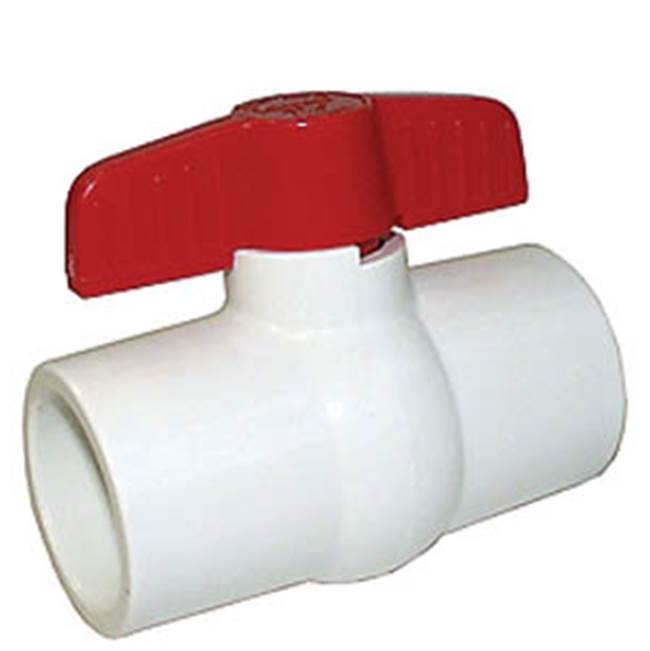

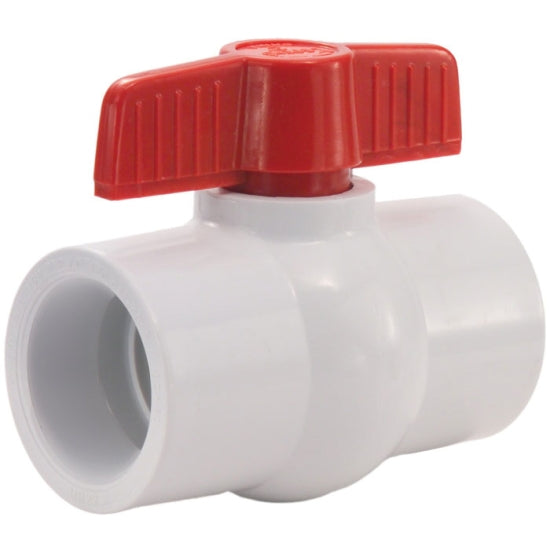

Legend Valve 201-453 1/2 S600 Nsf pvc compact ball valve

Product Description

The LEGEND VALVE 201-453 is a compact ball valve from the S-600 series with a nominal size of 1/2 IN. It features a solvent connection type and a pressure rating of 150 PSI at 73 DEG F. The valve is constructed with a PVC body, ABS handle, and EPDM seat trim, suitable for schedule 40 or 80 PVC pipe.

• Features a solvent connection type.
• Suitable for schedule 40 or 80 PVC pipe.
• NSF 61-9 Approved.

Product Highlights

This compact ball valve is ideal for use in applications requiring a reliable shutoff with NSF approval.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 201-453
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Series/Model: Model S-600
• Nominal Size: 1/2 IN
• Connection Type: Solvent x Solvent
• Pressure Rating: 150 PSI (WOG) At 73 DEG F
• Temperature Rating: 73 deg F
• Body Material: PVC
• Handle Material: ABS
• Stem Material: PVC
• Trim Material: UPVC Stem and EPDM Seat
• Packing Material: EPDM Stem
• Seat Material: EPDM
• Finish/Color: White
• Industry Standards: ISO 9002, NSF 61-9 Approved
• Lead Free: No
• Ball Material: UPVC
• Inlet to Outlet Length: 3-1/4 in
• Orifice Size: 0.55 in
• Top to Inlet Center: 2.5 in
• Pipe Size: 1/2 in
• Manufacturer: Legend
• Type: Ball
• Connection: Solvent x Solvent
• Product Type: Ball Valve
• Finish: No Finish Group
• ANSI: ANSI 14, ANSI 372, ANSI 61, ANSI B1.20.1
• ASME: ASME B18.6.7M
• ASTM: ASTM D-1784 Class 12454, ASTM D-2466, ASTM F-1498, ASTM F-1970
• End Connection 1: Socket Weld
• End Connection 2: Socket Weld
• End Connections: Socket Weld
• Material: Plastic, Rubber
• Material Type: ABS, EPDM, PVC
• NSF: NSF 14, NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Global
• Pressure - High: 150
• Pressure Class: 150#
• Recommended Valve Application: Cold Working Pressure
• Valve Body Material: PVC
• Valve Operator: Lever Handle
• Valve Seat Material: EPDM
• Valve Size: 1/2 in
• Valve Type: Ball Valve
