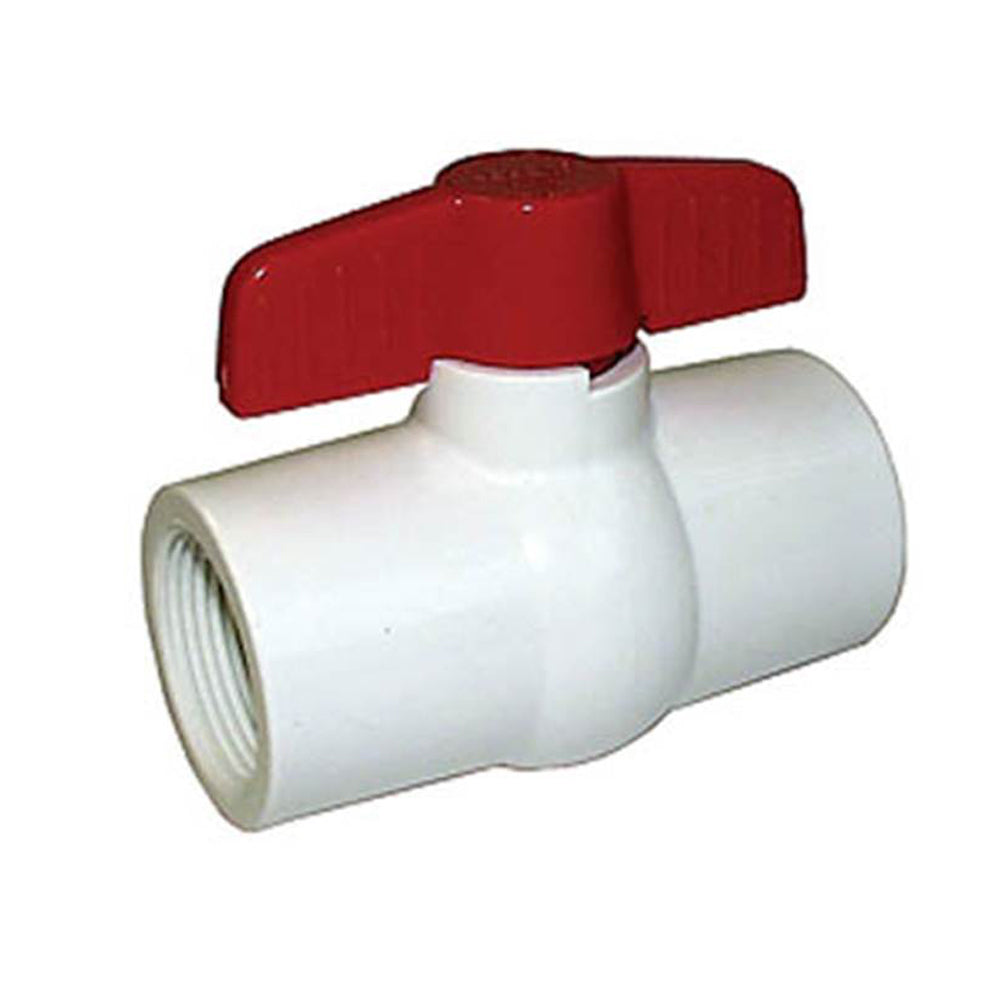

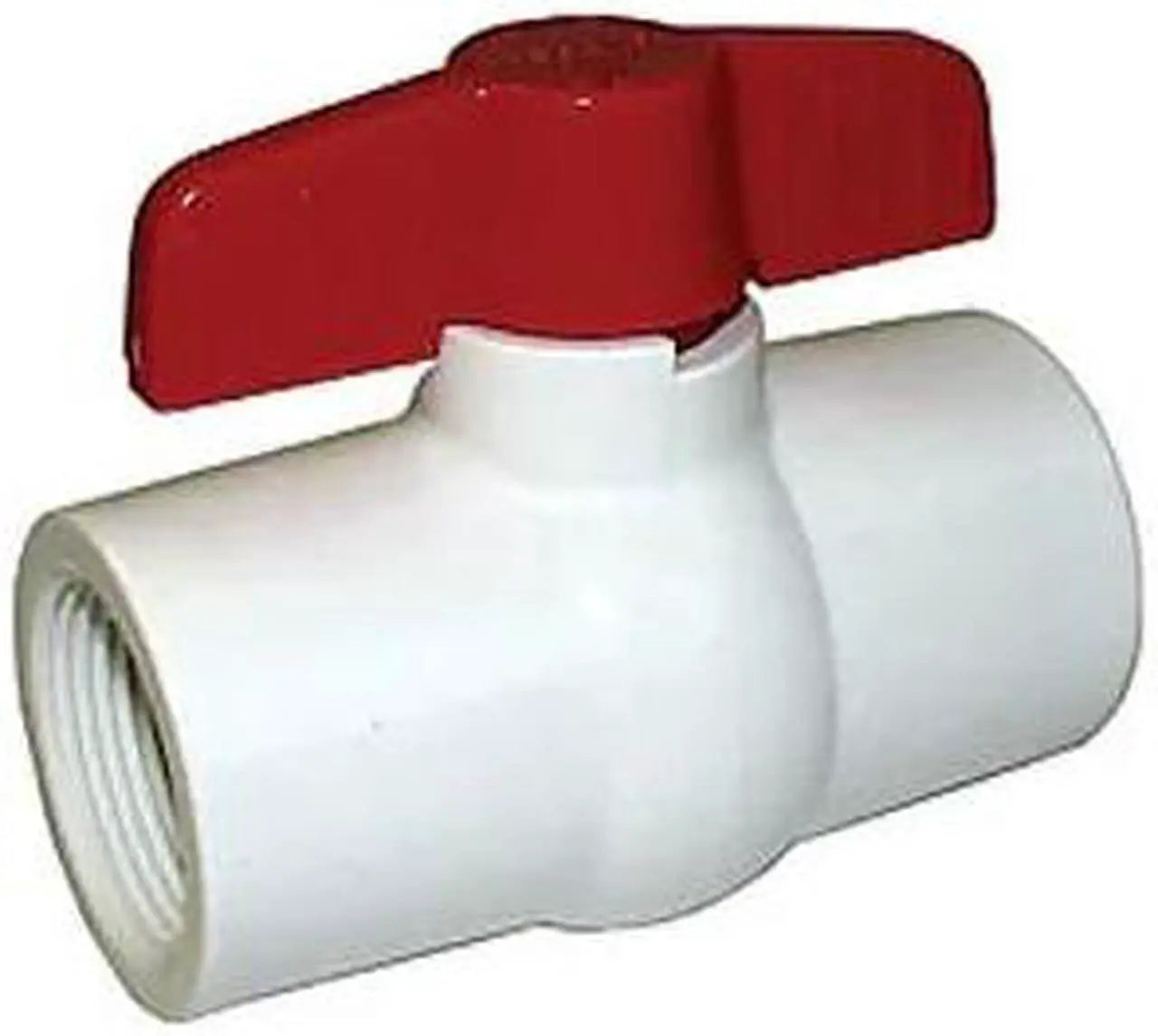

Legend Valve 201-447 1-1/2 inches T-600 PVC Ball Valve-NSF

Product Description

The Legend Valve 201-447 is a T-600 series, 1-1/2 inch nominal, compact ball valve with FNPT connections. Constructed with a PVC body, UPVC ball and stem, and EPDM seat trim, this valve is designed for use with SCH 40/STD or 80/XH PVC pipe. It is NSF approved and suitable for systems with a 150 psi CWP rating at 140 deg F.

• Lead Free Compact
• Fits SCH 40/STD or 80/XH PVC pipe
• NSF Approved

Product Highlights

The Legend Valve 201-447 ball valve is ideal for various plumbing and fluid control applications. It ensures reliable performance and is suitable for use in systems requiring NSF-approved components.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 201-447
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Ball Material: UPVC
• Body Material: PVC
• End Style: FNPT
• Inlet to Outlet Length: 5.13 in
• Nominal Size: 1-1/2 in
• Pressure Rating: 150 psi CWP
• Series: T-600
• Temperature Rating: 140 deg F
• Top to Inlet Center: 4-1/2 in
• Trim Material: UPVC Stem and EPDM Seat
• Type: Compact
• Size: 1-1/2"
• Standards: 150 PSI @ 73°F
• Connection Type: FNPT x FNPT
• Brand: Legend
• Manufacturer: Legend
• Product Type: Ball Valve
