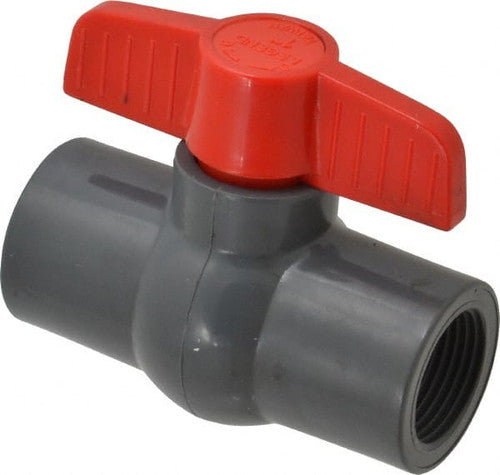

Legend Valve 201-425 T-602 PVC Ball Valve 1 in

Product Description

The Legend Valve 201-425 is a T-602 series ball valve with a 1-inch nominal FNPT size. Designed for use with SCH 40/STD or 80/XH PVC pipe, this valve features a UPVC ball and stem, and a PTFE seat trim. It is suitable for industrial applications with a pressure rating of 150 psi CWP at 140 deg F.

• Fits SCH 40/STD or 80/XH PVC pipe
• Features a T-handle actuator
• Full port type

Product Highlights

This Legend Valve ball valve is ideal for various applications. It ensures reliable performance with its robust PVC body and UPVC components.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 201-425
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: UPVC
• Body Material: PVC
• Color: Gray
• End Style: FNPT
• Inlet to Outlet Length: 4.19 in
• Nominal Size: 1 in
• Pressure Rating: 150 psi CWP
• Series: T-602
• Temperature Rating: 140 deg F
• Trim Material: UPVC Stem and PTFE Seat
• Manufacturer: LEGEND VALVE
• Standards: 150 PSI @ 73°F
• Connection Type: FNPT x FNPT
• Valve Type: Ball Valve
• Port Type: Full
• Handle Type: Tee
• Seal Material: EPDM
• Handle Material: ABS
• Schedule: 80
• Seat Material: Polytetrafluroethylene
• STEM MATERIAL: UPVC
