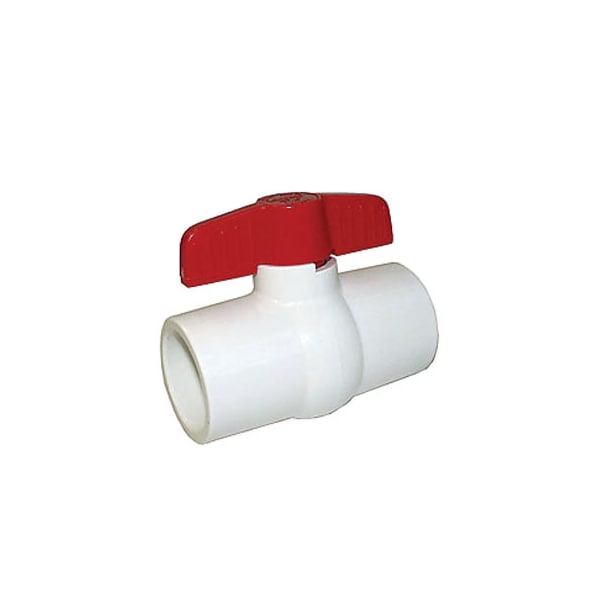

Legend Valve 201-411 4 S-601 PVC Ball Valve 150 psi 4 inches

Product Description

The Legend Valve 201-411 is a four-inch PVC ball valve designed for various fluid applications. This product is made from durable PVC material, ensuring reliability and longevity. The valve operates with a T-handle actuator, allowing for easy flow control of gas, oil, and water.

• Compact design for space-saving installation
• Full port to maximize flow with minimal pressure drop
• Rated for up to 150 psi and suitable for temperatures up to 140 degrees Fahrenheit

Product Highlights

This valve offers efficient flow management and is ideal for HVAC, plumbing, and industrial uses.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Model: S-601

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Dimensions: 9-1/4 inches height
• Inlet to Outlet Length: 11.88 inches
• Media: Gas/Oil/Water
• Nominal Size: 4 inches
• Pressure Rating: 150 psi
• Temperature Rating: 140 degrees Fahrenheit
• Trim Material: PVC Stem and EPDM Seat
• Standards/Approval: ISO 9002 Certified
• Warranty: 5/25 Years
