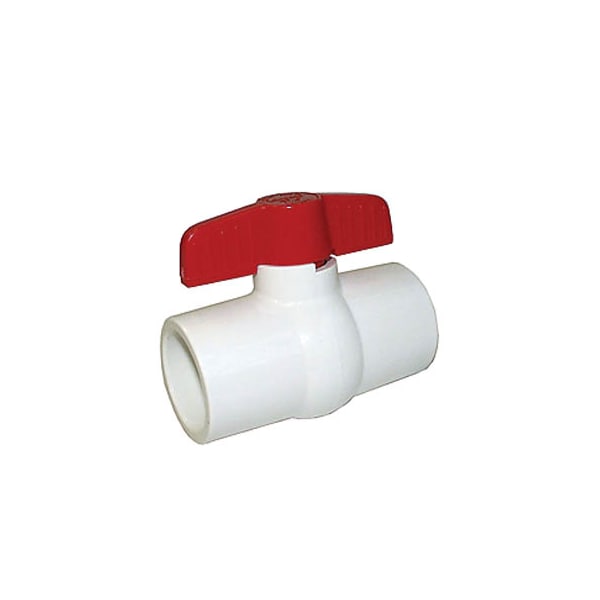

Legend valve 201-410 3 S-601 PVC ball valve

Product Description

Legend Valve 201-410 3 S-601 PVC Ball Valve is built for high performance and reliability. This valve serves a variety of applications, allowing for the control of gas, oil, and water flow. It features a T-handle actuator for easy operation.

• Constructed from ASTM D1784 virgin PVC for durability
• Pressure rated at 150 psi, ensuring safe operation
• Inlet to outlet length measures nine inches

Product Highlights

Designed for heavy-duty use, this compact valve can manage tough conditions and harsh environments effectively.

Product Information

Standard Information

• Manufacturer: Legend Valve
• UPC: 662545003573

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Dimensions: 7-1/2 in H
• Domestic/Import: Import
• End Style: Solvent
• Inlet to Outlet Length: 9 in
• Media: Gas/Oil/Water
• Nominal Size: 3 in
• Port Type: Full
• Pressure Rating: 150 psi
• Series: S-601
• Softgoods Material: EPDM
• Temperature Rating: 140 deg F
• Trim Material: PVC Stem and EPDM Seat
• Type: Compact
