Legend Valve 201-310 Miniature Ball Valve 3 in Full Port Pvc

Product Description

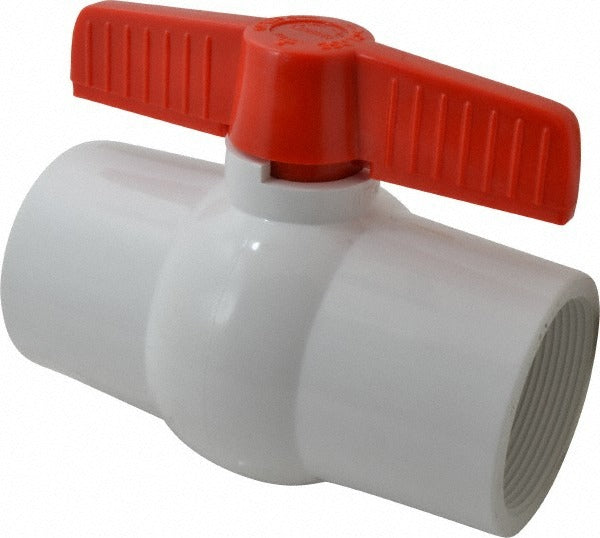

The LEGEND VALVE 201-310 is a miniature manual ball valve designed for 3-inch pipe applications requiring reliable full-port flow control. Constructed from Schedule 40 polyvinylchloride (PVC) with EPDM seals and seat, this valve delivers corrosion resistance well-suited for water, irrigation, and compatible chemical service lines. The tee-style ABS handle allows quick quarter-turn operation for shutoff or flow regulation. At 4.75 pounds, it is sized for permanent inline installation by plumbers and pipefitters working on residential or light commercial PVC piping systems.

This valve is intended for use in Schedule 40 PVC piping systems where a full-port, low-restriction shutoff is required. FNPT x FNPT end connections make it compatible with standard threaded PVC fittings. Typical applications include irrigation manifolds, water treatment lines, pool and spa plumbing, and chemical distribution systems where metal valve bodies are unsuitable. The white PVC body with red tee handle provides clear visual identification of valve position on the line.

Key Features

• Full-port design minimizes pressure drop across the valve
• Schedule 40 PVC body resists corrosion and chemical attack
• EPDM seals and seat provide durable, leak-resistant performance
• FNPT x FNPT end connections thread directly onto standard PVC pipe fittings
• Quarter-turn tee handle allows fast manual open and close operation
• White body with red handle enables quick visual status identification

Compatibility

Designed as an OEM-style replacement or new-installation valve for 3-inch Schedule 40 PVC threaded piping systems.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter. Shut off upstream flow and depressurize the line before installing or replacing the valve. Use thread sealant rated for PVC and the media being conveyed — do not overtighten threaded connections, as PVC threads can crack under excess torque. Verify that system operating pressure and temperature are within the valve rating before returning the line to service.
