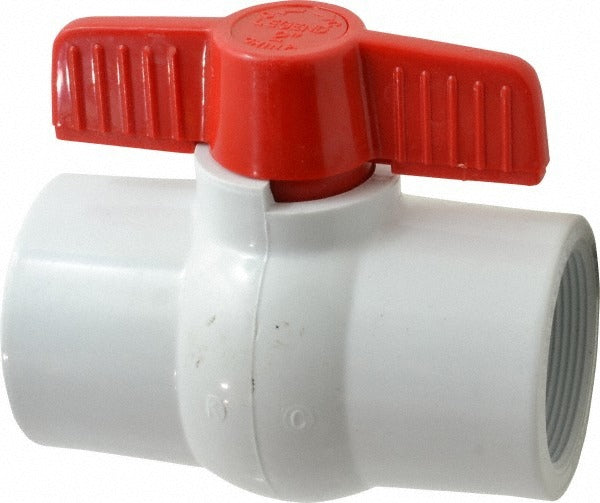

Legend Valve 201-308 2 in Full Port Pvc Ball Valve Fnpt

Product Description

The LEGEND VALVE 201-308 is a miniature manual ball valve designed for 2-inch pipe systems requiring a compact, full-port shutoff solution. Built from PVC (polyvinylchloride) with a Schedule 40 rating, it delivers unrestricted flow through its full-port bore and operates via a tee-style handle for quick quarter-turn actuation. EPDM seals and seats provide reliable chemical resistance in a range of fluid handling applications. This valve is a common choice for plumbers and mechanical contractors working on low-pressure water distribution, irrigation, and chemical handling lines where a lightweight plastic valve body is appropriate.

The 201-308 is suited for residential and light commercial plumbing installations, irrigation systems, and industrial fluid handling where PVC construction is specified. The FNPT x FNPT end connections allow for straightforward threaded installation into existing pipe runs. The white PVC body with red tee handle makes it easy to identify valve position at a glance. It is typically installed by licensed plumbers or mechanical contractors following applicable plumbing codes.

Key Features

• Full-port design minimizes flow restriction through the 2-inch valve
• PVC body construction — lightweight and corrosion-resistant
• EPDM seals and seats for chemical resistance and long service life
• FNPT x FNPT threaded end connections for standard pipe assembly
• Tee-style ABS handle for positive quarter-turn operation
• Schedule 40 rated construction for compatibility with standard PVC pipe systems

Compatibility

Designed as an OEM-style replacement or new-installation valve for 2-inch Schedule 40 PVC piping systems with female NPT threaded connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable International Plumbing Code (IPC) or local plumbing authority requirements. Depressurize and drain the line completely before removing any existing valve or fitting. Apply thread sealant tape or compound rated for PVC and the media being handled — do not overtighten threaded connections, as PVC fittings are susceptible to cracking under excessive torque. Confirm valve handle position and verify no leaks before returning the system to service.
