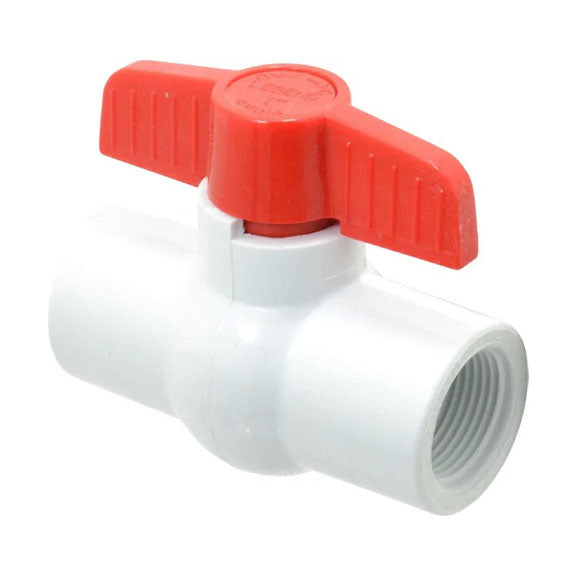

Legend Valve 201-305 1 T-601 PVC Ball Valve 150 psi WOG Replacement 201-305

Product Description

The Legend Valve 201-305 is a PVC ball valve designed for plumbing applications. This compact valve is part of the T-601 series. It has a one-inch nominal size and features an FNPT end style. The valve is rated for 150 psi WOG and can handle temperature up to 140 degrees Fahrenheit. The full port design allows for maximum flow and minimal pressure drop.

• Suitable for schedule 40 or 80 PVC pipe.
• Made of virgin PVC resin for durability.
• Equipped with a T-handle actuator for easy operation.

Product Highlights

This valve provides a reliable connection and is NSF approved. It is ideal for various plumbing applications in residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Material: PVC

Technical Specifications

• Actuator Type: T-Handle
• Nominal Size: 1 inch
• Body Material: PVC
• Ball Material: PVC
• Pressure Rating: 150 psi WOG
• Temperature Rating: 140 degrees Fahrenheit
• Dimensions: 3-3/4 inches high
• Inlet to Outlet Length: 4.19 inches
