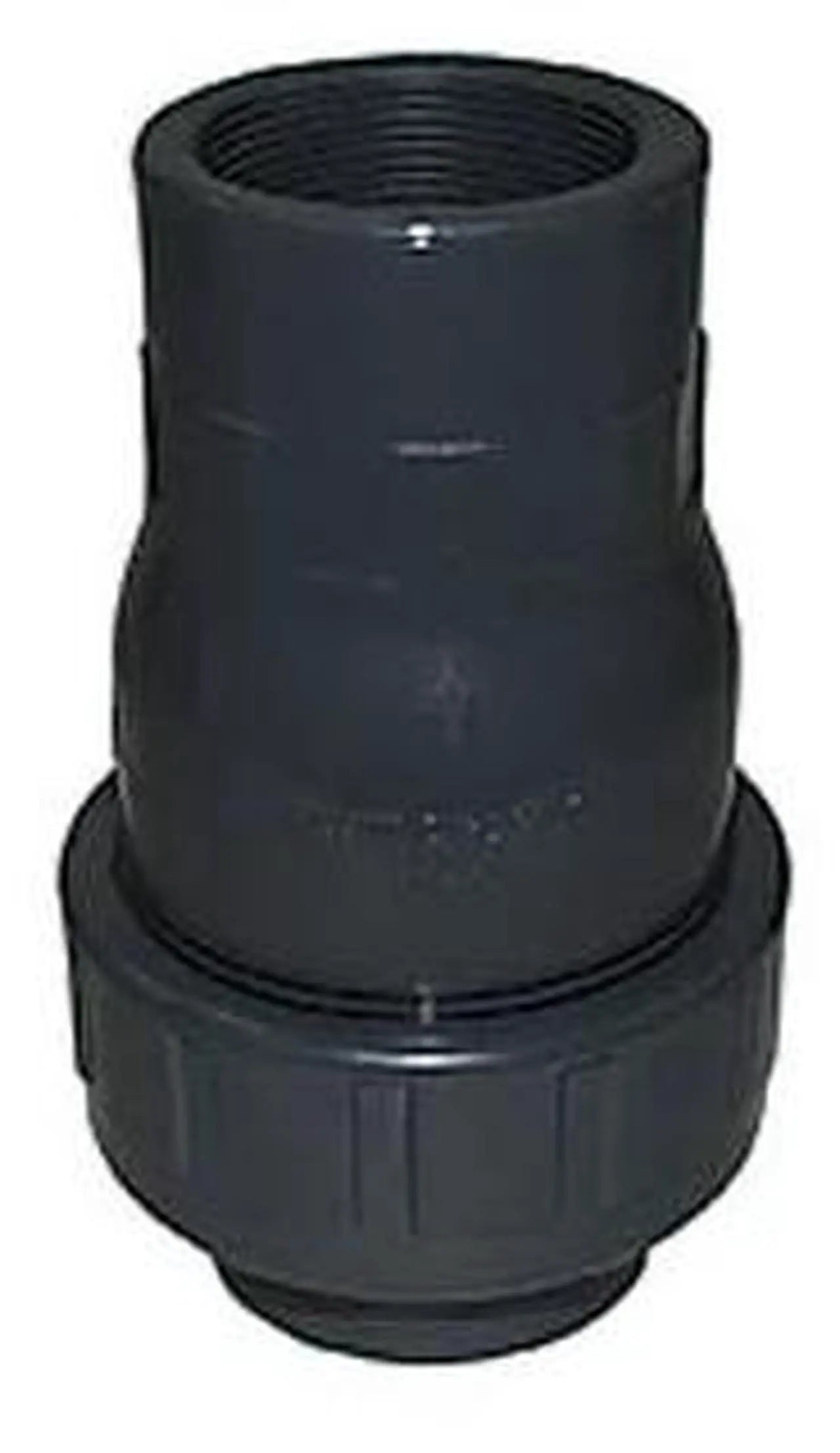

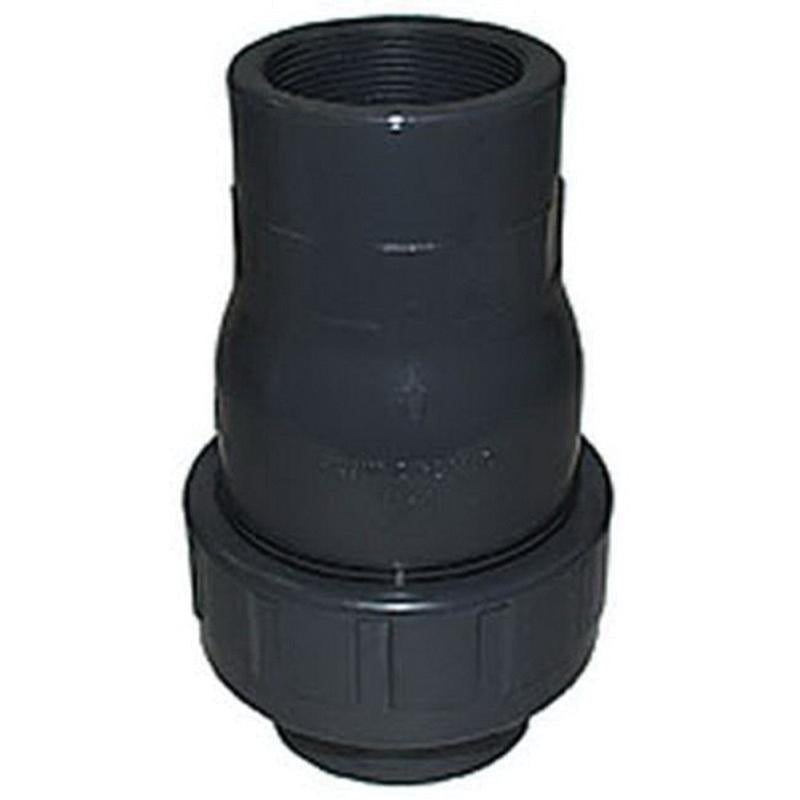

Legend Valve 201-287 S-655 PVC Ball Check 1-1/2 inches

Product Description

The LEGEND VALVE 201-287 is an S-655 PVC Ball Check Valve, 1-1/2 inch nominal size, designed for applications such as swimming pools, process/wastewater, or corrosive installations. It features a UPVC body and EPDM seal, capable of handling gas, oil, and water media. This valve operates at 150 PSI WOG pressure and up to 73 deg F, with a full port design to minimize pressure drop.

• Fully-guided conical-ball design ensures correct seal alignment and a positive seal under low or high backpressures.
• Constructed using 100% virgin resins, fitting both SCH 40/STD and SCH 80/XH pipe.
• Single union end design eases installation, and it can be converted to a foot valve with a separately furnished UPVC strainer.

Product Highlights

This UPVC ball check valve is suitable for corrosive environments, offering reliable sealing and easy installation.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 201-287
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Media: Gas/Oil/Water
• Series: S-655
• Port Type: Full
• Nominal Size: 1-1/2 in
• Ball Material: UPVC Resin
• Body Material: UPVC
• Pressure Rating: 150 PSI WOG at 73 Deg F
• Seal Material: EPDM
• Temperature Rating: 73 deg F
• End to End Distance: 6.1 in
• Connection Type: 1-1/2 Inch Solvent Weld x 1-1/2 Inch Solvent Weld
• Country of Origin: Taiwan, Province of China
• UPC: 662545010182
• Application: Industrial
