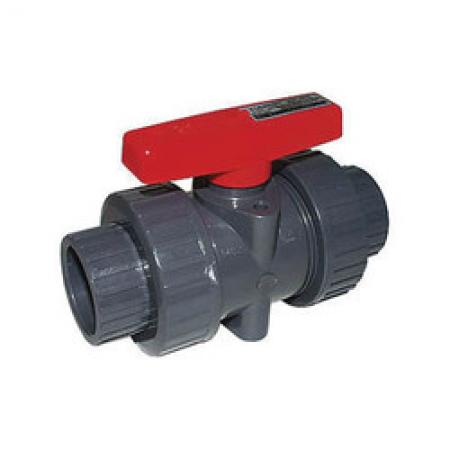

Legend Valve 201-204 True Union Ball Valve 3/4 FNPT

Product Description

The Legend Valve 201-204 is a True Union Ball Valve designed for 3/4-inch pipes. Featuring FNPT connections and a full port design, it provides optimal flow and minimal pressure drop.

• 3/4-inch nominal size
• Full port for maximum flow
• Constructed from durable UPVC material

Product Highlights

This ball valve includes FNPT & Solvent Adapters. The T-handle actuator ensures easy operation. Designed with a double union, and bayonet-style lock, facilitating easy maintenance.

Product Information

Standard Information

• Brand: Legend Valve
• Model: 201-204
• UPC: 662545003177

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: UPVC
• Body Material: UPVC
• Color: Gray
• Dimensions: 3.31 in H
• End Style: FNPT
• Inlet to Outlet Length: 5.13 in
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 150 psi
• Series: T/S-603
• Softgoods Material: EPDM
• Temperature Rating: 140 deg F
• Trim Material: UPVC Stem and PTFE Seat
• Domestic/Import: Import
