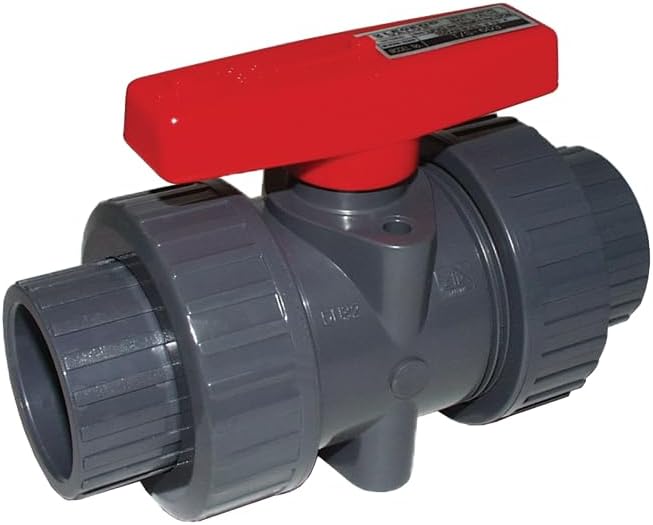

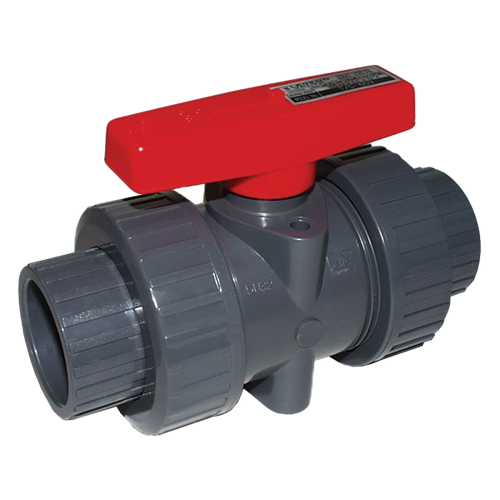

Legend Valve 201-185 T/S-603V PVC Ball Valve 1 in

Product Description

The LEGEND VALVE 201-185 is a 1 in T/S-603V series true union ball valve with FNPT and solvent adapters. It features a UPVC body, UPVC stem, and PTFE seat trim. This valve is designed for unidirectional flow and ease of maintenance or repair with its true union design.

• True union design permits ease-of maintenance or repair
• Constructed using 100% virgin resins
• Central mounting pad is ideal for panel or actuation attachment

Product Highlights

Ideal for commercial or industrial applications using compatible petroleum-based media. Compliant with ASTM D1784 Class 12454/F1970/F1498 and ANSI/ASME B1.20.1 standards.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 201-185
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Ball Material: UPVC
• Body Material: UPVC
• End Style: FNPT x Solvent
• Inlet to Outlet Length: 5.87 in
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 150 psi CWP
• Series: T/S-603V
• Temperature Rating: 140 deg F
• Top to Inlet Center: 2.6 in
• Trim Material: UPVC Stem and PTFE Seat
• Manufacturer: LEGEND VALVE
• Standards: 150 p.s.i. @ 73°F
• Connection Type: FNPT/ Solvent
• Country of Origin (subject to change): Taiwan, Province of China
• Configuration: Includes FNPT and Solvent Adapters
• Item model number: T/S-603V
• MPN: 201-185
• Product Type: Ball Valve
