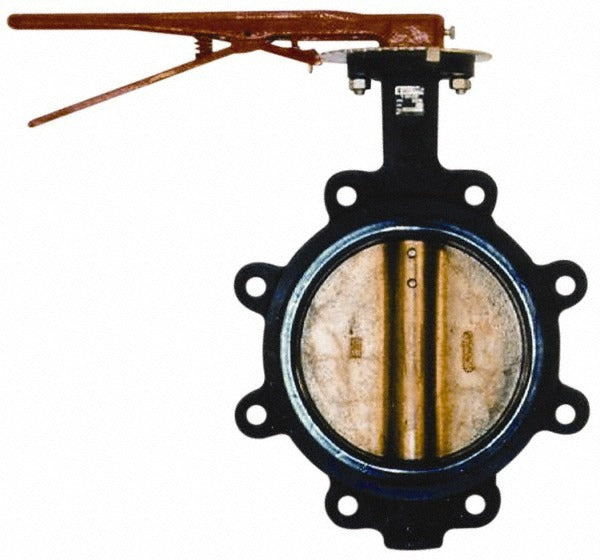

Legend Valve 116-626 Lug Butterfly Valve 6 Inch Lever Handle

Product Description

The LEGEND VALVE 116-626 is a manual lug-style butterfly valve designed for 6-inch pipe installations. It features a cast iron body, aluminum bronze disc, stainless steel stem, and a Buna-N seat. The lever handle provides direct, manual quarter-turn operation to open or close flow. At 29 pounds, this is a heavy-duty valve suited for commercial and industrial piping systems. Lug-style end connections allow the valve to be installed as an end-of-line valve or between flanges without disturbing the downstream piping during service.

This valve is appropriate for use in HVAC hydronic systems, industrial fluid handling, and commercial plumbing applications where a reliable, manually operated isolation valve is required on 6-inch pipe. The lug body style makes it compatible with standard ANSI-pattern flanged piping. It is typically installed by licensed plumbers or pipefitters working on medium to large commercial or industrial projects. The Buna-N seat material is suitable for water, mild chemicals, and general-service fluids within its rated range.

Key Features

• Lug-style body allows end-of-line service without disturbing downstream piping
• Cast iron body provides durability for commercial and industrial service
• Aluminum bronze disc resists corrosion in fluid handling applications
• Stainless steel stem for long-term reliability and corrosion resistance
• Buna-N seat material compatible with water and general-service fluids
• Lever handle delivers simple, direct quarter-turn manual actuation

Compatibility

Designed as an OEM-style replacement or new-installation lug butterfly valve for 6-inch flanged piping systems in commercial HVAC, plumbing, and industrial fluid handling applications.

Installation Notes

Installation of this valve should be performed by a licensed plumber or pipefitter in accordance with applicable local mechanical and plumbing codes. Shut down and depressurize the piping system fully before removing any existing valve or breaking a flanged connection. Verify flange bolt-hole pattern and pressure rating of adjacent flanges match the valve before installation. Do not exceed the valve seat material compatibility limits for the fluid type and temperature in the system.
