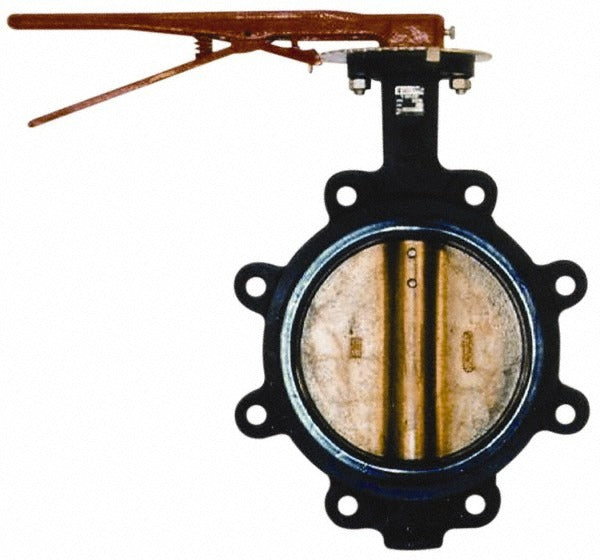

Legend Valve 116-625 Lug Butterfly Valve 5 Inch Lever

Product Description

The LEGEND VALVE 116-625 is a manual lug-style butterfly valve designed for flow isolation and regulation in industrial and commercial piping systems. Built for 5-inch pipe, it features a cast iron body, aluminum bronze disc, stainless steel stem, and a Buna-N seat. The lever handle provides direct, quarter-turn operation without the need for an actuator. At 26 pounds, this is a heavy-duty valve suited for demanding fluid handling applications. Licensed plumbers and pipefitters install this type of valve in mechanical rooms, process piping, and HVAC hydronic systems where positive shutoff and easy manual operation are required.

The 116-625 is appropriate for 5-inch lug-style butterfly valve applications in commercial and industrial settings. The lug configuration allows the valve to be installed as an end-of-line valve or in-line between flanges without requiring a downstream flange to maintain system integrity. This makes it especially useful in systems where sections of piping need to be isolated and serviced independently. The Buna-N seat offers compatibility with water, mild chemicals, and many common process fluids.

Key Features

• Lug-style body allows end-of-line or in-line installation between flanges
• Cast iron body provides durability for commercial and industrial service
• Aluminum bronze disc resists corrosion in water and mild fluid service
• Stainless steel stem adds corrosion resistance at the stem interface
• Buna-N seat material compatible with water and a broad range of process fluids
• Quarter-turn lever handle enables fast, direct manual operation

Compatibility

Designed as an OEM-style lug butterfly valve for 5-inch pipe flanged connections in commercial plumbing, industrial process piping, and HVAC hydronic systems.

Installation Notes

Installation of lug butterfly valves should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and local mechanical codes. Isolate and depressurize the system completely before installation or removal. Ensure flange bolt patterns and pressure ratings of adjacent piping components are compatible before assembly. Do not use the lever handle as a leverage point during installation.
