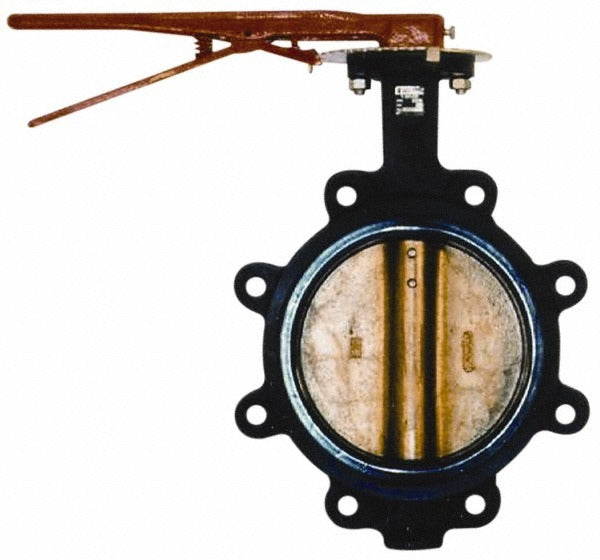

Legend Valve 116-622 Lug Butterfly Valve 2.5 Inch

Product Description

The LEGEND VALVE 116-622 is a manual lug-style butterfly valve designed for 2.5-inch pipe systems. It features a lever handle for quick quarter-turn operation, making it well suited for isolation and flow control in commercial and industrial piping applications. The cast iron body provides structural durability under demanding service conditions, while the aluminum bronze disc offers corrosion resistance in water and mild fluid systems. The stainless steel stem resists corrosion and wear through repeated cycling. At 13 pounds, this is a robust valve built for systems where reliable shutoff is essential. Installation is handled by licensed plumbers or pipefitters.

This valve is a fit for commercial HVAC piping, hydronic heating and cooling systems, water distribution, and general industrial fluid handling. The lug-style body allows the valve to be installed as an end-of-line isolation valve or in a full in-line position without removing the downstream piping. The lever handle provides fast manual actuation without additional actuator components, making it a practical choice for accessible service locations in mechanical rooms and equipment installations.

Key Features

• Lug-style body allows end-of-line service without disturbing downstream piping
• Quarter-turn lever handle provides fast manual open and close operation
• Cast iron body construction for durability in demanding service environments
• Aluminum bronze disc offers corrosion resistance in water and compatible fluid systems
• Stainless steel stem resists corrosion and wear through repeated cycling
• Buna-N seat material provides a reliable seal for general liquid service

Compatibility

Designed as an OEM-style lug butterfly valve for 2.5-inch pipe systems in commercial HVAC, hydronic, and general industrial fluid handling applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter following applicable IPC and local mechanical code requirements. Shut off and depressurize the piping system completely before installing or servicing this valve. Verify that the seat and disc materials are chemically compatible with the fluid being handled before placing the valve in service. Confirm flange bolt patterns and pressure ratings match the existing piping system prior to installation.
