Legend Valve 116-606 T-365AB butterfly valve with EPDM seals & 10 position handle 6 inch lug

Product Description

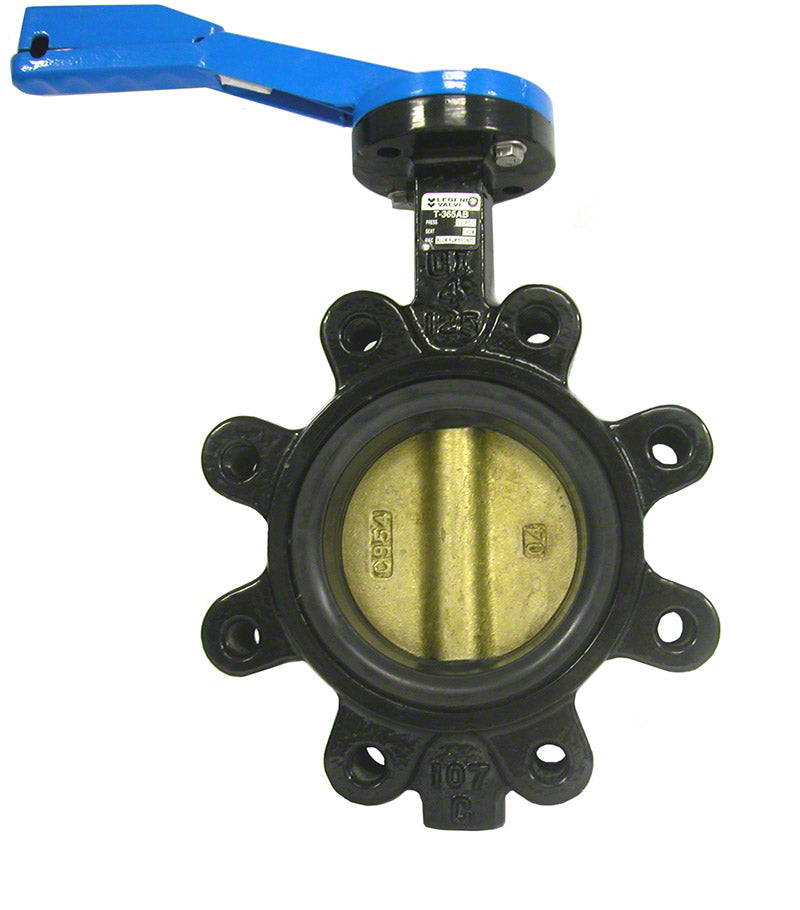

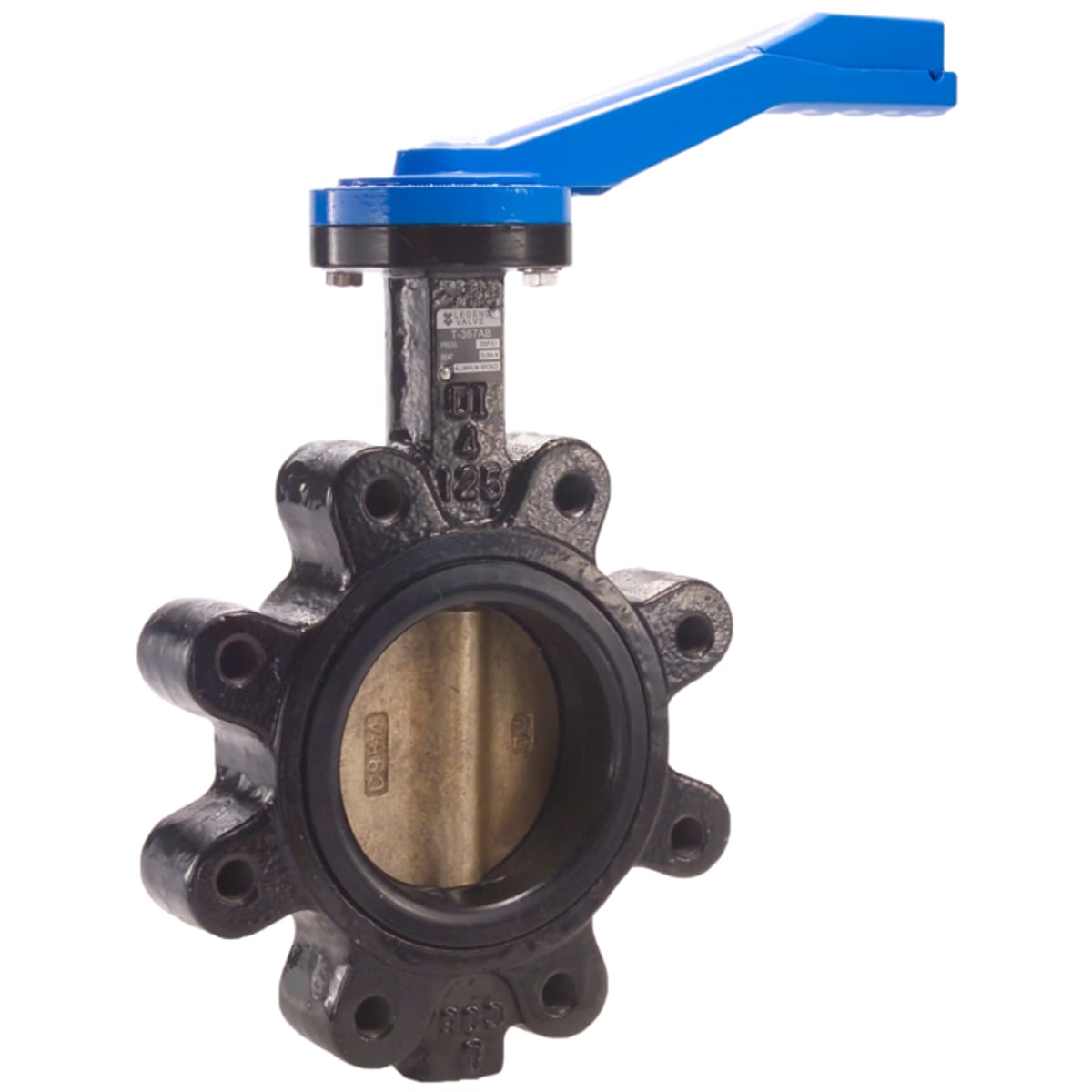

The LEGEND VALVE 116-606 is a 6 inch T-365AB Ductile Iron Lug Type Butterfly Valve designed for industrial and commercial applications. It features an Aluminum Bronze Disc and EPDM Seats, ensuring reliable performance. This valve is equipped with a heavy-duty lockable ten-position handle for precise flow control and is rated for 200 psi Cold Working Pressure (CWP) and 125 psi Working Steam Pressure (WSP) up to 250°F.

• Epoxy coated lug body allows precise positioning between flanges.
• Tapped lugs and supported seat permit single-flange, 'dead-end' service.
• Rigid, phenolic-backed seat allows positive, bubble-tight shutoff.

Product Highlights

Durable ductile iron construction with EPDM seals and a 10-position handle for reliable flow control.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 116-606
• Country of Origin: China

Technical Specifications

• Brand: Legend Valve
• Body Material: Ductile Iron
• Softgoods Material: EPDM/PTFE
• Nominal Size: 6 in
• Valve Type: Butterfly
• Bolt Size: 3/4-10 in
• Connection Style: Lug
• Manufacturer Part Number: 116-606
• Type: Lug Style
• Media: Steam
• Finish: Epoxy Powder Coated
• Series: T-365AB
• End Style: Flanged
• Manufacturer: LEGEND VALVE
• Actuator Type: Lever Handle
• Disc Material: Aluminum Bronze
• Pressure Class: 125/150 lb
• Temperature Rating: 250 deg F
• Stem & Pin Material: 416 Stainless Steel (Stem)/(Disc Pin)
• Cold Working Pressure: 200 psi
• Working Steam Pressure: 125 psi
• Connection Type: EPDM Seat Lug
• Product Category: Butterfly Valves
