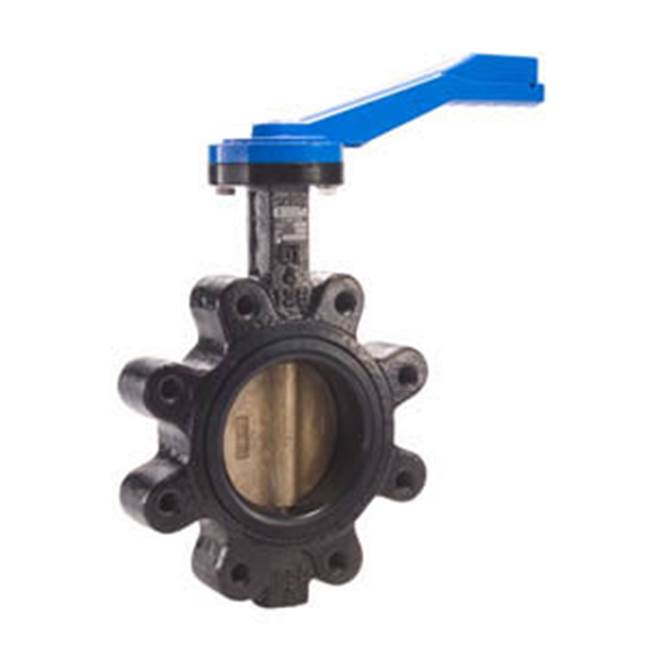

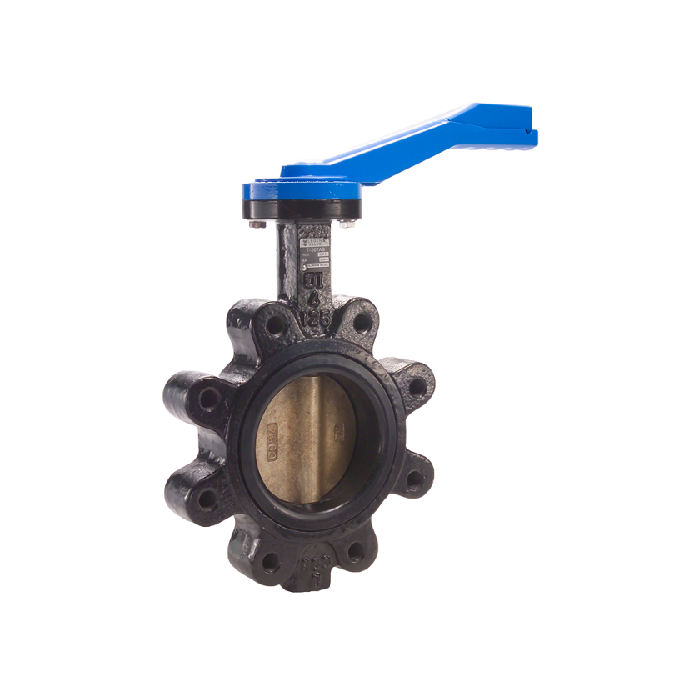

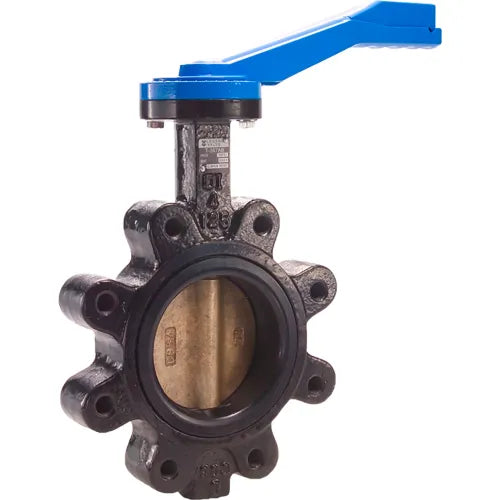

Legend Valve 116-605 T-365AB Butterfly Valve with EPDM Seals & 10 Position Handle 5 inch Lug

Product Description

The LEGEND VALVE 116-605 is a 5-inch T-365AB ductile iron lug type butterfly valve designed for precise flow control in piping systems. Featuring an aluminum bronze disc and EPDM seats, this valve is suitable for steam applications up to 250°F at 125 psi and has a cold working pressure of 200 psi. Its epoxy-coated lug body allows for precise positioning between flanges, supporting bi-directional flow.

• Aluminum Bronze Disc ensures durability and corrosion resistance.
• EPDM Seats provide positive, bubble-tight shutoff.
• Epoxy coated lug body allows precise positioning between flanges.

Product Highlights

Heavy-duty lockable ten-position handle offers reliable control and an extended neck clears most piping insulation.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 116-605
• Country of Origin: China

Technical Specifications

• Brand: Legend Valve
• MPN: 116-605
• Model: T-365AB
• Valve Type: Butterfly
• Size: 5 inch
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Seal Type: EPDM
• Connection Style: Lug
• Actuator Type: Lever Handle
• Finish: Epoxy Powder Coated
• Media: Steam
• Pressure Class: 125/150 lb
• Cold Working Pressure (CWP): 200 psi
• Working Steam Pressure (WSP): 125 psi
• Temperature Rating: 250 deg F
• Stem & Pin Material: 416 Stainless Steel (Stem)/(Disc Pin)
• Bolt Size: 3/4-10 inch
• Top To Inlet Center: 10-3/4 inch
• Standards Conformance: MSS SP-67, API 609, AWWA C504, EN 593
• Manufactured in ISO Accredited Facility: Yes
• Country of Origin: China
• UPC: 662545020945
• Product SKU: B3150855
• Package Quantity: 1
