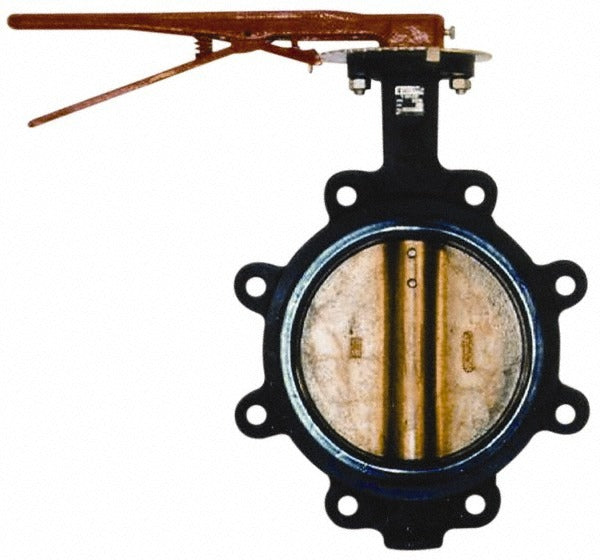

Legend Valve 116-602 Lug Butterfly Valve 2-1/2 Inch

Product Description

The LEGEND VALVE 116-602 is a manual lug-style butterfly valve designed for flow control in commercial and industrial piping systems. Built with a cast iron body, aluminum bronze disc, and stainless steel stem, this valve delivers corrosion resistance and mechanical durability across a wide range of fluid handling applications. The EPDM seat provides a reliable seal for water and compatible media. The lever handle allows quick quarter-turn actuation without the need for a gear operator, making it practical for accessible service locations. Plumbers and pipefitters install this valve in both new construction and retrofit applications where a compact, flanged shutoff is required at 2-1/2 inch pipe size.

This lug butterfly valve is suited for commercial HVAC hydronic systems, industrial water service, and general plumbing distribution where lug-style mounting between flanges is specified. The lug body design allows the valve to be installed as an end-of-line valve or in-line between standard ANSI flanges without additional hardware constraints. At 13 pounds, the valve is appropriately sized for 2-1/2 inch service and handles typical system pressures found in building mechanical rooms and process piping.

Key Features

• Lug-style body for bolted installation between ANSI flanges or as an end-of-line shutoff
• Cast iron body for strength and durability in commercial piping environments
• Aluminum bronze disc resists corrosion in water and compatible fluid service
• Stainless steel stem provides reliable actuation and resists pitting
• EPDM seat material compatible with water, steam, and many water-treatment chemicals
• Lever handle enables fast quarter-turn operation in accessible locations

Compatibility

Designed as an OEM-style replacement or new-installation lug butterfly valve for 2-1/2 inch pipe systems using standard ANSI flange bolt patterns in commercial plumbing and HVAC hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASME B31.9 building services piping standards. Isolate and depressurize the system completely before removing any existing valve or breaking a flanged connection. Verify flange bolt pattern and gasket compatibility before torquing fasteners. Confirm flow-direction orientation and lever clearance before final installation.
