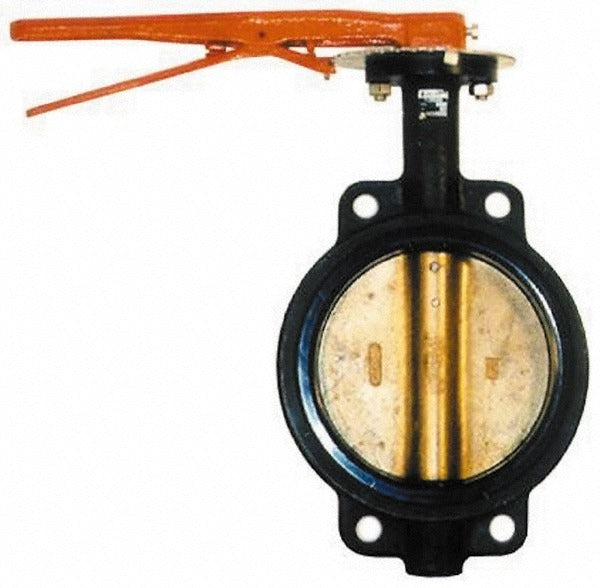

Legend Valve 116-401 Wafer Butterfly Valve 2 Inch

Product Description

The LEGEND VALVE 116-401 is a manual wafer-style butterfly valve designed for 2-inch pipe systems. It uses a lever handle for on/off flow control and is built with a cast iron body, aluminum bronze disc, and stainless steel stem. The EPDM seat provides a reliable seal against a wide range of media. Weighing 9 pounds, this valve is sized for straightforward installation between pipe flanges. It is well-suited for commercial and industrial plumbing, HVAC hydronic systems, and mechanical piping where a compact, low-profile shutoff is required. Licensed plumbers and pipefitters are the typical installers.

This wafer butterfly valve fits into 2-inch flanged piping systems and is designed for manual isolation or flow control duties. The wafer-style body sandwiches directly between two pipe flanges, keeping overall installed length to a minimum. The lever handle provides quick quarter-turn operation, making it practical for accessible mechanical room installations, cooling tower lines, chilled water loops, and similar applications where frequent manual actuation may be needed.

Key Features

• Cast iron body provides durable, cost-effective construction for commercial piping service
• Aluminum bronze disc offers corrosion resistance in water and mild fluid applications
• Stainless steel stem resists corrosion and wear over repeated cycles
• EPDM seat material is compatible with water, steam, and many common system fluids
• Wafer-style body keeps face-to-face dimension compact for tight mechanical spaces
• Quarter-turn lever handle allows fast manual open and close operation

Compatibility

Designed as an OEM-style wafer butterfly valve replacement or new installation fitting for 2-inch flanged piping systems in commercial HVAC, plumbing, and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IPC guidelines. Isolate and depressurize the system fully before installing or replacing this valve. Ensure flange bolt patterns and pipe schedules are confirmed before torquing flanges, and verify disc clearance through the full range of travel before returning the system to service. Do not use the valve for throttling service unless the application is confirmed compatible with butterfly valve construction.
