Legend Valve 116-222 T-312 Ductile Iron Check Valve 2-1/2 inches Wafer

Product Description

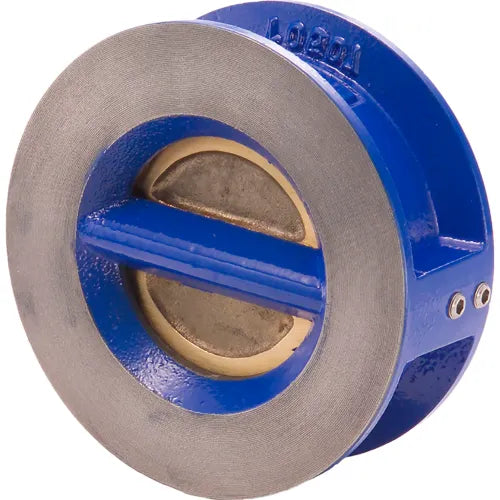

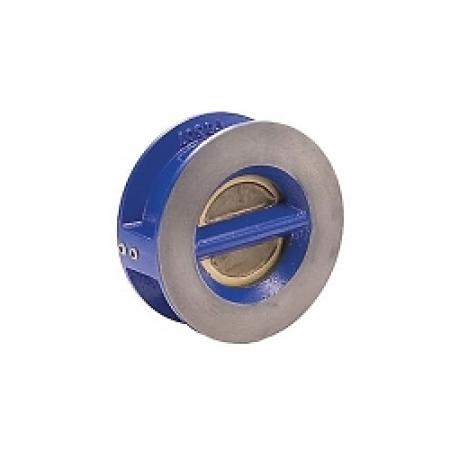

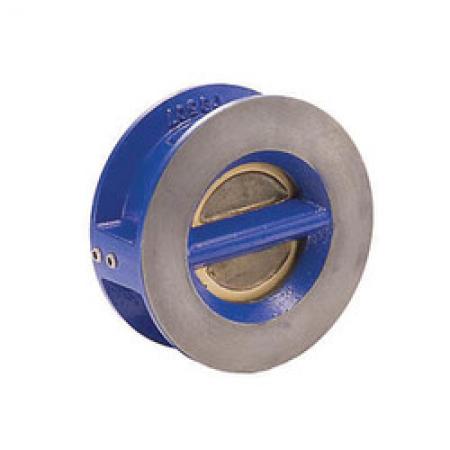

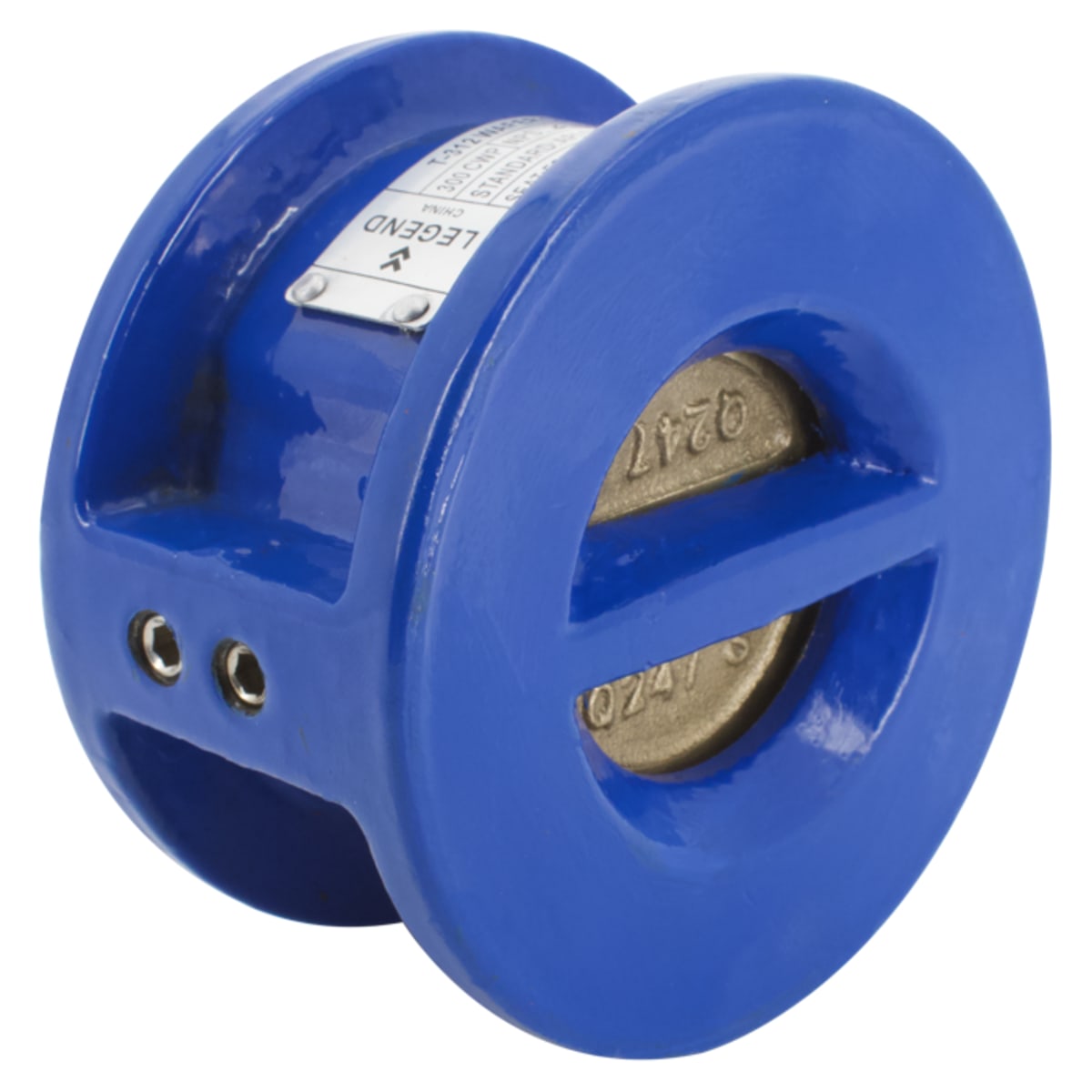

The Legend Valve 116-222 T-312 is a 2-1/2" ductile iron wafer check valve with EPDM seats and an aluminum bronze disc. This valve features dual spring-loaded discs for quick, silent closure and elastomer seats to create a positive seal against backflow. Designed for installation between Class 125/150 companion flanges.

• Dual spring-loaded discs assure quick, silent closure
• Elastomer seats create a positive seal against backflow
• Can be installed vertically or horizontally, in any orientation

Product Highlights

Ductile iron body, compact design, and split-disc spring minimize pressure drop. Suitable for cold working pressure up to 300 psi and maximum service temperature of 180°F.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 116-222
• Country of Origin: China

Technical Specifications

• Brand: Legend Valve
• Material: Ductile Iron
• Size: 2-1/2 in
• Valve Type: Check
• Description: Wafer Check Valve with EPDM Seats, Aluminum Bronze Disc
• Length: 4-3/4 in
• Diameter: 4-3/4 in
• Max Temperature: 180 °F
• Connection Style: Wafer
• Package Quantity: 1
• Connection Size: 2-1/2 in
• PSI: 300 psi
• Manufacturers Part Number: 116-222
• Body Material: Ductile Iron
• End Style: Flanged
• Inlet to Outlet Length: 2.13 in
• Nominal Size: 2-1/2 in
• Pressure Rating: 200 psi CWP
• Series: T-312
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 200 deg F
• Trim Material: EPDM Rubber Seat
• Type: Twin Disc Wafer Style
• Connection_Type: Flange
• Standards: 200 CWP, 200°F Max. Temp.
• Manufacturer: Legend
• Connection: Wafer
