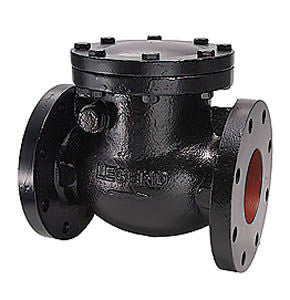

Legend Valve 116-201 T-311 Cast Iron Swing Check Valve

Product Description

The Legend Valve 116-201 is a T-311 two-inch flanged cast iron swing check valve. It features a swing-check design that is ideal for basic commercial and industrial backflow prevention applications.

• Durable cast iron construction for resistance against pipeline stresses.
• IBBM design with bronze body seat and sealing rings provides improved sealing.
• Compatible with both vertical and horizontal installations.

Product Highlights

This check valve effectively prevents backflow in piping systems. It can be used in various applications requiring reliable fluid control.

Product Information

Standard Information

• Manufacturer: Legend Valve
• Product Type: Check Valve

Technical Specifications

• Body Material: Cast Iron
• Nominal Size: 2 inches
• Pressure Rating: 200 psi CWP
• Temperature Rating: 450 degrees Fahrenheit
• End Style: Flanged
• Inlet to Outlet Length: 8 inches
• Top to Inlet Center: 4.76 inches
• Pressure Class: 125/150 lb
