Legend Valve 114-953NLB 1/2 Push x 3/8 OD T596NL Stop

Product Description

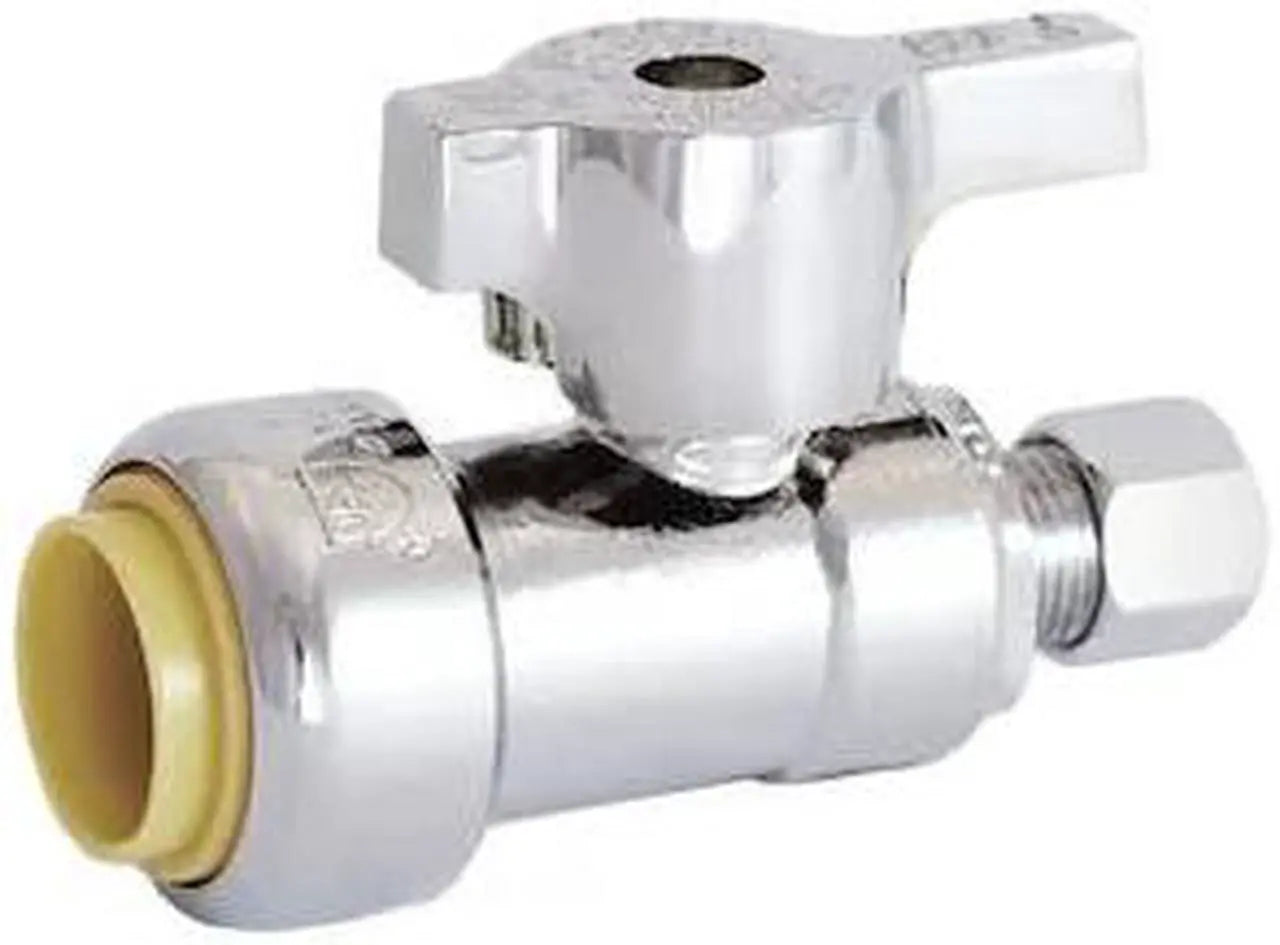

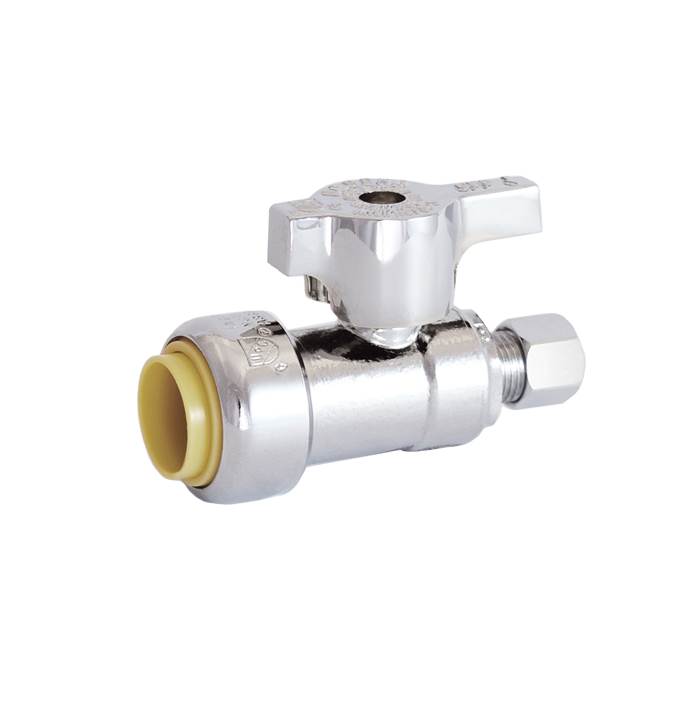

The LEGEND VALVE 114-953NLB is an Insta-Loc II Straight Stop Valve designed for potable water installations. This lead-free, 1/4-turn removable ball valve features a push-fit end style and a durable brass body with brass/PTFE trim. It is rated for 125 psi CWP and operates up to 120 deg F, ensuring reliable shutoff and re-opening in plumbing systems.

• Lead-free design suitable for all lead-free potable water installations, complying with plumbing laws.
• 1/4-turn, self-cleaning ball valve resists mineral and scale build-up, ensuring positive shutoff.
• Ball-seat operation and dual O-ring stem seal outperform traditional multi-turn stop designs.

Product Highlights

Lead-free 1/4-turn push-fit stop valve with durable brass construction for potable water systems.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-953NLB
• Country of Origin: Import

Technical Specifications

• Type: 1/4-Turn Removable Ball
• Media: Water
• Series: T-596NL
• End Style: Push-Fit
• Nominal Connection Size: 1/2"P X 3/8" OD
• Body Material: Brass
• Trim Material: Brass/PTFE
• Pressure Rating: 125 psi CWP
• Softgoods Material: EPDM
• Temperature Rating: 120 deg F
• Country of Origin: China
• Finish: No Finish Group
