Legend Valve 114-704nlb 5/8odx3/8od t596 nl chro stop

Product Description

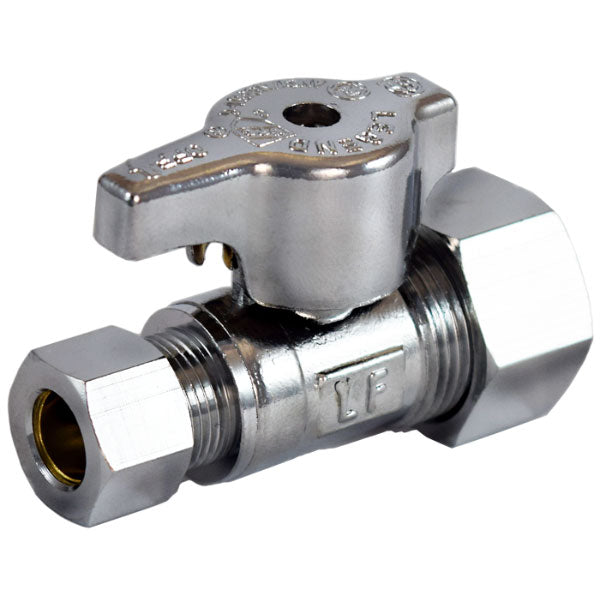

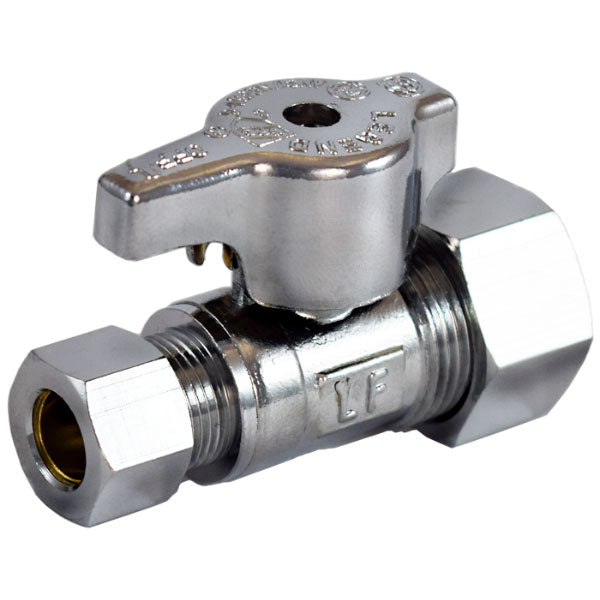

The LEGEND VALVE 114-704NLB is a lead-free 1/4-turn ball straight stop valve, Series T-596NL, designed for water media. This compact, chrome-plated forged brass body valve features a 5/8 x 3/8 inch nominal compression end style, suitable for potable water installations. It operates efficiently up to 125 psi CWP and 120 deg F, ensuring positive shutoff and re-opening in plumbing systems.

• Lead-free design suitable for all lead-free potable water installations.
• 1/4-turn, self-cleaning ball valve design resists mineral and scale build-up.
• Compact, chrome plated, forged brass body for durability and aesthetic appeal.

Product Highlights

Lead-free 1/4-turn ball valve for reliable water shutoff in plumbing applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-704NLB
• Country of Origin: Imported

Technical Specifications

• Type: 1/4-Turn Ball
• Media: Water
• Series: T-596NL
• End Style: Compression
• Nominal Size: 5/8 x 3/8 in
• Body Material: Brass
• Trim Material: Brass/EPDM
• Pressure Rating: 125 psi CWP
• Softgoods Material: NBR
• Temperature Rating: 120 deg F
