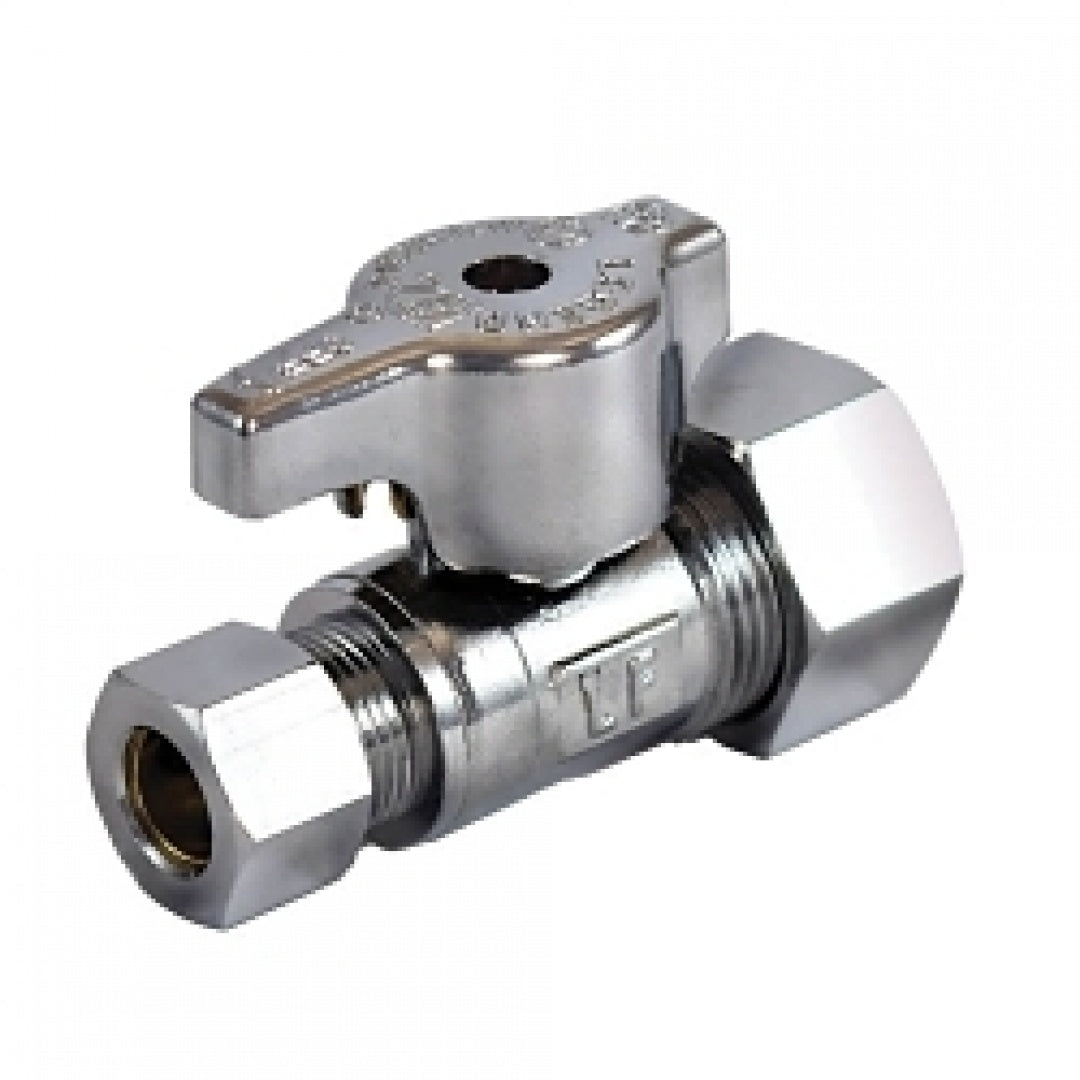

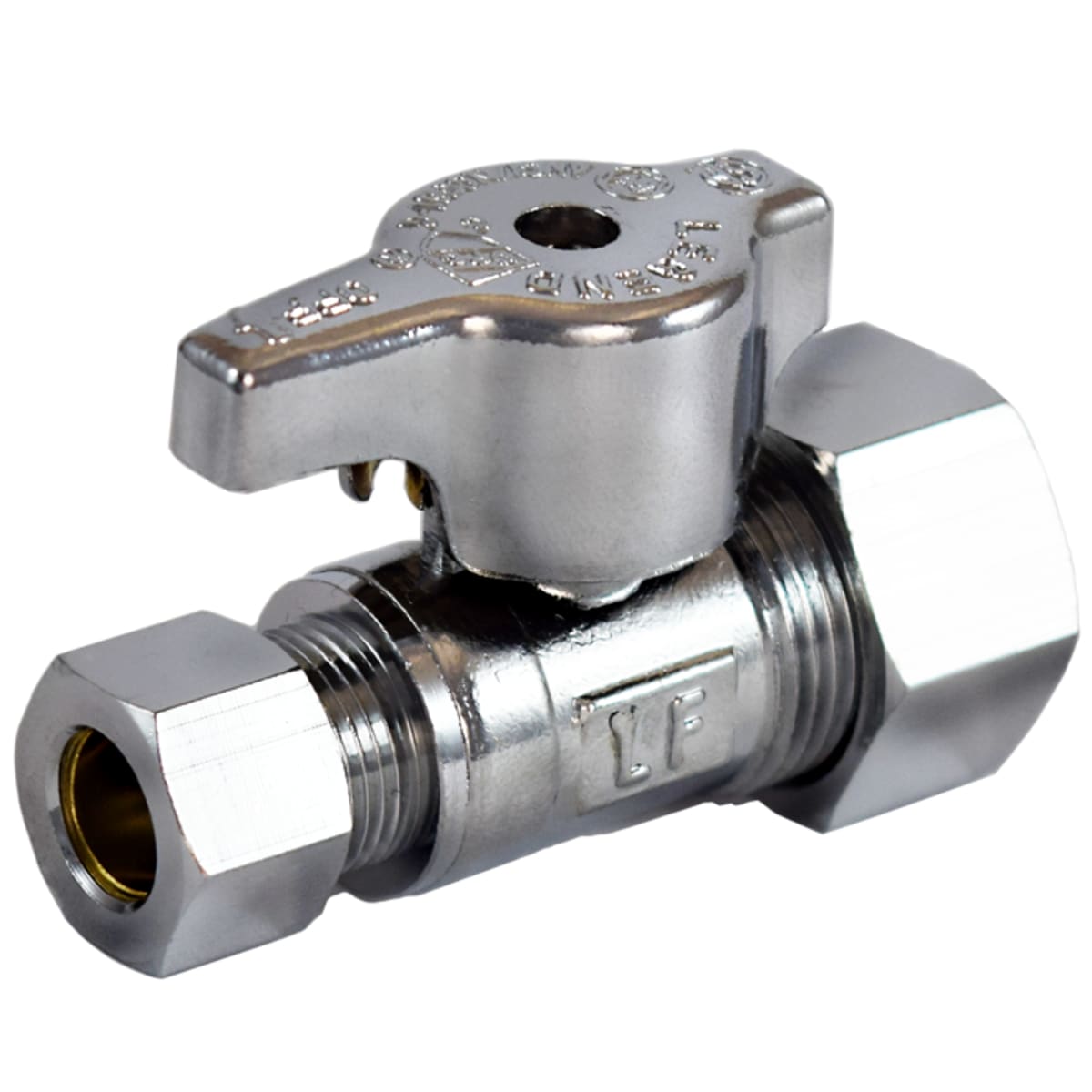

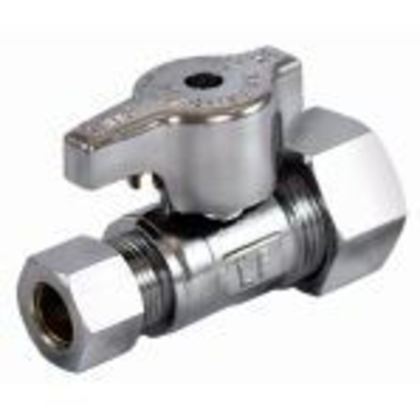

Legend Valve 114-704NL 5/8x3/8 Str Stop Qt

Product Description

The Legend Valve 114-704NL is a straight stop valve with a 5/8 x 3/8 inch connection size. This lead-free valve is suitable for potable water installations and complies with lead-free plumbing laws. Its quarter-turn, self-cleaning ball valve design resists mineral and scale build-up, ensuring positive shut-off. The compact, forged brass body is both durable and decorative.

• Lead-free design suitable for potable water installations
• 1/4-turn, self-cleaning ball valve resists mineral and scale build-up
• Compact, forged brass body

Product Highlights

Lead-free, quarter-turn straight stop valve with durable brass construction for potable water systems.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 114-704NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Connection Size: 5/8 x 3/8 in
• Connection Type: Compression
• Finish: Chrome-Plated
• Item Name: Straight Stop Valve
• Material: Brass
• Model: T-596NL
• Pressure Rating: 125 psi
• Temperature Rating: 120 deg F
• Size: 5/8" x 3/8"
• Standards: 125 CWP
• Type: Straight Stop Valve
• Features: Lead-free
• Operation: Quarter-turn, self-cleaning ball valve design
• Application: Potable water installations
• Body Material: Brass
• Domestic/Import: Import
• End Style: Compression
• Nominal Size: 5/8 x 3/8 in
• Series: T-596NL
• Softgoods Material: EPDM
• Trim Material: Brass
• Manufacturer: LEGEND VALVE
• MPN: 114-704NL
• SKU: LEGE-114-704NL
• Brand: Legend Valve
• Configuration: Compression (OD) x Compression (OD)
• Inlet to Outlet Length: 2.44
• Top to Inlet Center: 1.10
• Diameter: 5/8 in, 3/8 in
