Legend Valve 114-703nl Chrome Straight Stop Valve

Product Description

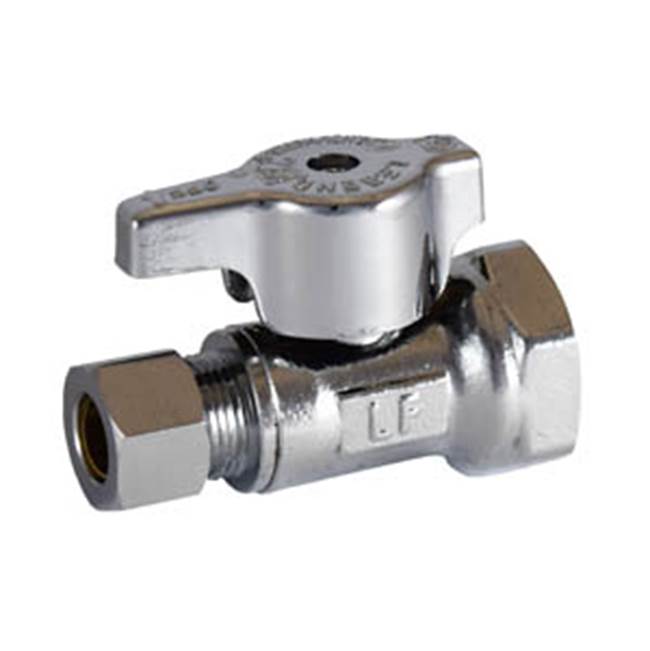

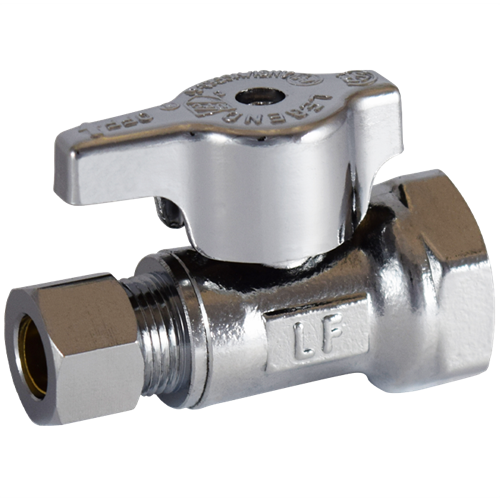

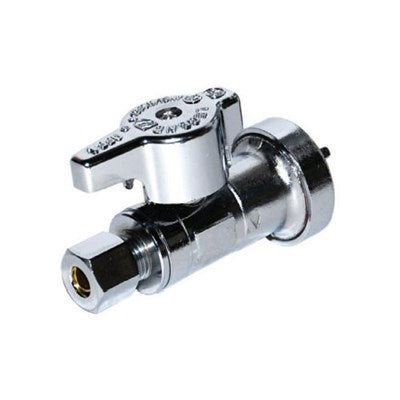

The LEGEND VALVE 114-703nl is a no-lead chrome brass 1/4-turn straight stop valve designed for residential and light commercial plumbing supply line connections. It features a 1/2-inch female iron pipe (FIP) inlet and a 3/8-inch OD compression outlet, making it a standard configuration for connecting supply lines to faucets, toilets, and similar fixtures. The quarter-turn ball-style operation allows the valve to open or close with a 90-degree handle rotation, reducing service time and improving shutoff reliability. The no-lead brass construction meets regulatory requirements for potable water systems. Chrome finish suits exposed under-sink installations where appearance matters.

This stop valve is used in residential and light commercial plumbing systems where a local shutoff is needed at a fixture supply point. Typical applications include under-sink faucet connections, toilet fill valve supply lines, and similar fixture rough-in scenarios. It is installed by licensed plumbers or experienced plumbing contractors as part of new construction, remodel work, or fixture replacement projects.

Key Features

• No-lead brass construction complies with Safe Drinking Water Act requirements for potable water contact
• 1/4-turn operation provides fast, reliable shutoff with a single 90-degree handle movement
• 1/2-inch FIP inlet fits standard 1/2-inch threaded supply branches
• 3/8-inch OD compression outlet accommodates standard fixture supply lines
• Chrome finish suitable for exposed under-sink installations
• Straight stop configuration for in-line supply connections

Compatibility

Designed as an OEM-style replacement or new-installation stop valve for residential and light commercial plumbing fixtures requiring a 1/2-inch FIP inlet and 3/8-inch OD compression outlet connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the main water supply and relieve line pressure before removing any existing valve or fitting. Apply thread sealant or PTFE tape to the male threads before making the FIP connection, and do not overtighten the compression nut on the 3/8-inch OD outlet. After installation, restore water pressure gradually and inspect all connections for leaks before closing the cabinet or finishing the rough-in.

Technical Specifications

• Inlet Connection: 1/2 inch Female Iron Pipe (FIP)
• Outlet Connection: 3/8 inch OD Compression
• Configuration: Straight Stop
• Operation: 1/4 Turn
• Material: No-Lead Chrome Brass
• Finish: Chrome
• Lead Compliance: No Lead (Potable Water Approved)
• Country of Origin: China

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-703nl
