Legend Valve 114-702NL T-596NL 1/4 turn straight stop valve 3/8 in

Product Description

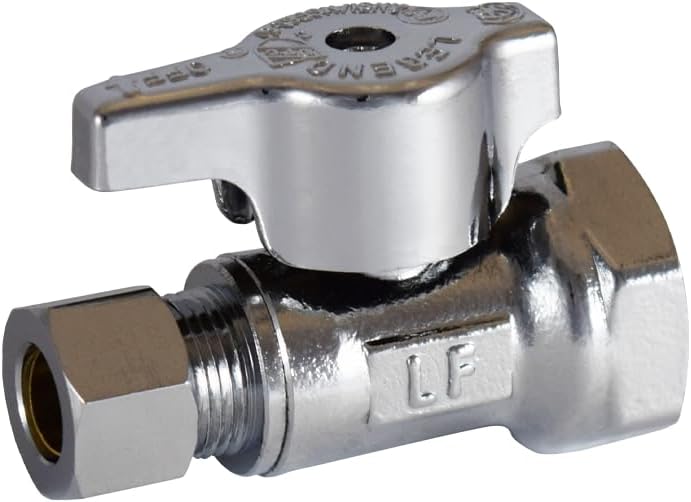

The Legend Valve 114-702NL is a T-596NL chrome-plated brass 1/4 turn straight stop valve, designed for lead-free potable water installations. This 3/8 inch valve features FNPT x Compression connections and a durable forged brass body. It operates with a 1/4 turn mechanism, ensuring positive shut-off and re-opening, and is rated for 125 psi pressure and 120 deg F temperature. Its self-cleaning ball valve design resists mineral and scale build-up, making it an ideal component for plumbing systems.

• Lead-free design suitable for all no-lead potable water installations.
• 1/4 turn operation with self-cleaning ball valve design resists mineral and scale build-up.
• Ball-seat operation and dual O-ring stem seal features outperform traditional multi-turn stop designs.

Product Highlights

Compact, forged brass, chrome-plated body ensures durability and a decorative finish, ideal for upgrading plumbing systems.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-702NL
• Country of Origin: Import

Technical Specifications

• Brand: LEGEND VALVE
• MPN: 114-702NL
• Model: T-596NL
• Body Material: Forged Brass
• Finish: Chrome-Plated
• Operation: 1/4 Turn
• Type: Straight Stop Valve
• Size: 3/8 in
• Connection: FNPT x Compression
• Pressure Rating: 125 psi
• Temperature Rating: 120 deg F
• Softgoods Material: EPDM
• Trim Material: Brass/EPDM
• Applications: For potable water installations
• Standards/Certifications: ANSI/ASME B1.20.1, ASTM B124 UNS C46400, IAPMO/UPC Listed, Truesdail Labs Certified to ANSI/NSF 61-G, US Federal Public Law 111-380 (National Lead Free Plumbing Law)
• Actuator Type: Handle
• Handle Material: Chrome Plated Zinc
