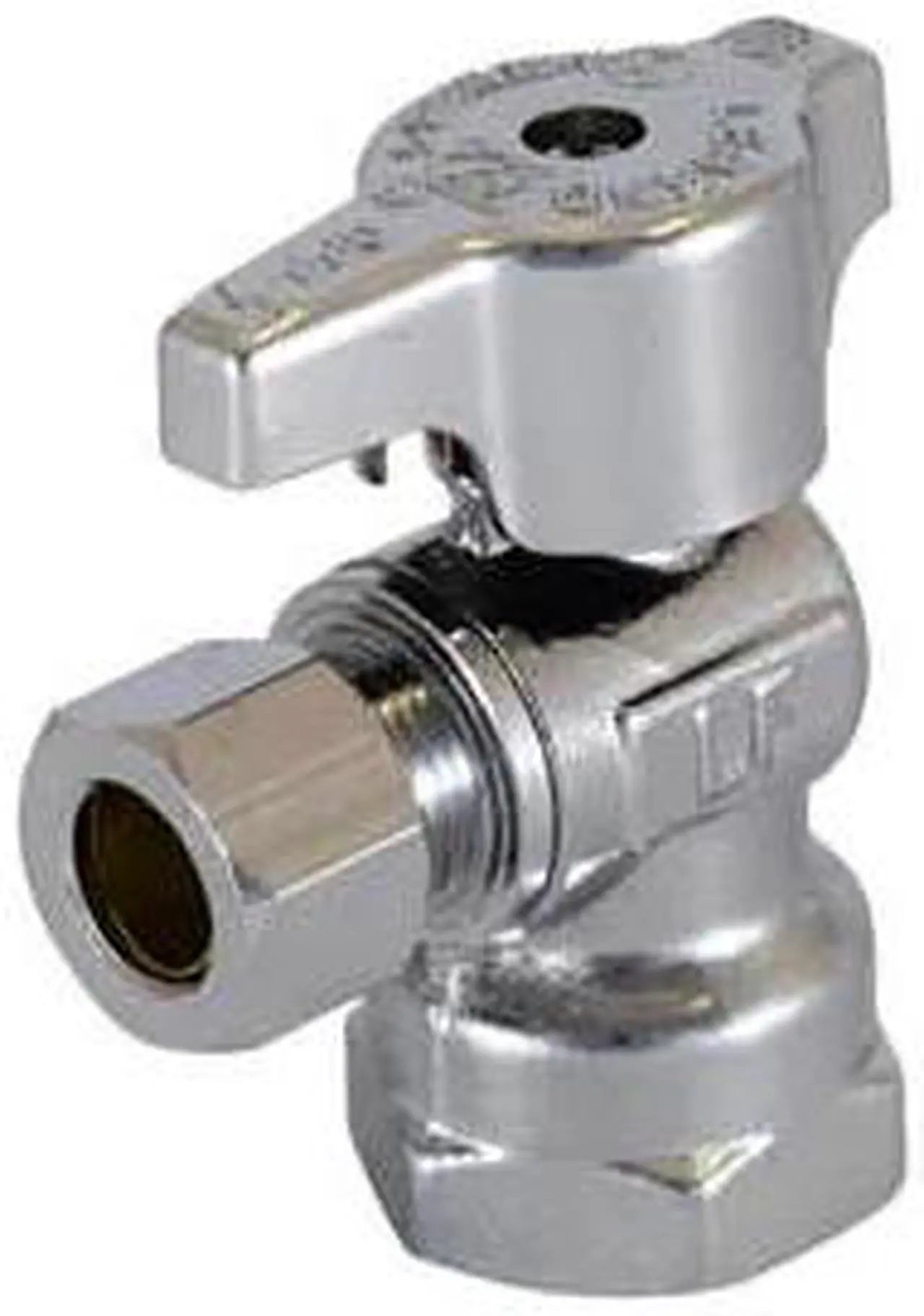

Legend Valve 114-613NLB Lead Free 1/4-Turn Ball Angle Stop Valve 1/2 x 3/8 in

Product Description

The LEGEND VALVE 114-613NLB is a lead-free 1/4-turn ball angle stop valve, Series T-595NL, designed for potable water installations. This valve features a 1/2 x 3/8 inch nominal solder x compression connection, a brass body, and brass/EPDM trim. It is rated for 125 psi CWP and operates up to 120 deg F, ensuring reliable water flow control in plumbing systems.

• Lead-free design suitable for all lead-free potable water installations, complying with plumbing laws.
• 1/4-turn, self-cleaning ball valve design resists mineral and scale build-up, ensuring positive shutoff.
• Ball-seat operation and dual O-ring stem seal features outperform traditional multi-turn stop designs.

Product Highlights

Durable, chrome-plated forged brass body ensures longevity and a clean aesthetic for plumbing applications.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-613NLB
• Country of Origin: China

Technical Specifications

• Type: 1/4-Turn Ball
• Media: Water
• Series: T-595NL
• End Style: 1/2 inch Solder x 3/8 inch O.D. Compression
• Nominal Size: 1/2 x 3/8 in
• Body Material: Brass
• Trim Material: Brass/EPDM
• Pressure Rating: 125 psi CWP
• Softgoods Material: NBR
• Temperature Rating: 120 deg F
• Finish: Chrome
• Lead Status: No-Lead
