Legend Valve 114-609NLB 1/2 PEX X 3/8 OD 1/4 Turn Cp Angle Stop

Product Description

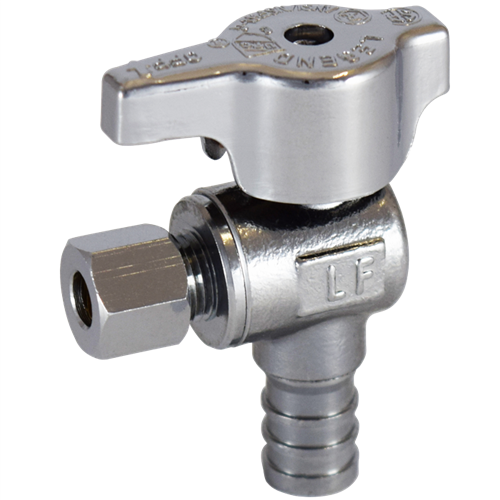

The LEGEND VALVE 114-609NLB is a 1/2 PEX X 3/8 OD 1/4 turn angle stop valve. The lead-free design is suitable for all no-lead potable water installations, fully compliant with all lead-free plumbing laws. It features a self-cleaning ball valve design that resists mineral and scale build-up, ensuring positive shutoff and re-opening. Compact, forged brass bodies are durable.

• Lead free design suitable for potable water installations
• Self-cleaning ball valve resists mineral and scale build-up
• Ball-seat operation and dual O-ring stem seal

Product Highlights

This angle stop valve features a lead-free design, self-cleaning ball valve, and durable forged brass body.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-609NLB
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Body Material: Brass
• End Style: F1807 PEX x Compression
• Finish: Polished Chrome
• Media: Potable Water
• Nominal Size: 1/2 x 3/8 in
• Pressure Rating: 125 psi
• Series: T-595NL
• Softgoods Material: Buna-N
• Temperature Rating: 120 deg F
• Trim Material: Brass/EPDM
• Type: 1/4 Turn
• Manufacturer: LEGEND VALVE
• Size: 1/2" x 3/8"
• Standards: 125 CWP
• Connection Type: 1/2" F1807 PEX x 3/8" O.D. compression, angle
• Configuration: PEX (F1807) x Compression (OD)
