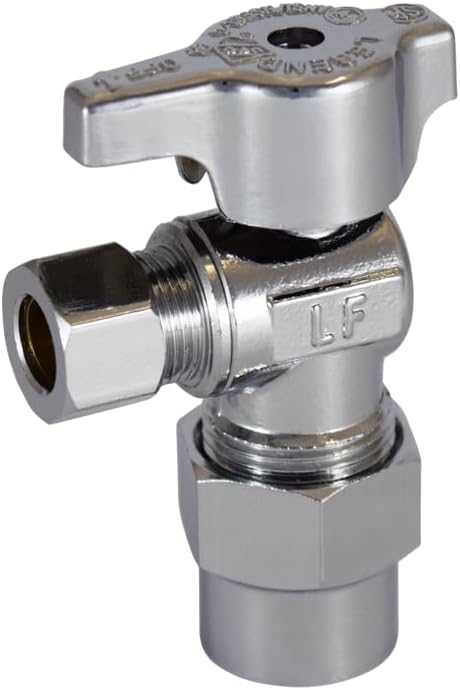

Legend Valve 114-607NLB T595 NL Stop 1/2CPVCX3/8OD

Product Description

The LEGEND VALVE 114-607NLB is a T-595NL series 1/4-turn ball angle stop valve designed for water applications. Featuring a lead-free brass body and brass/EPDM trim, this valve is suitable for potable water installations. It offers a 125 psi CWP pressure rating and operates up to 120 deg F. The compact design with CPVC x Compression end style ensures positive shutoff and re-opening, making it an ideal upgrade for worn stops.

• Lead-free design is suitable for all lead-free potable water installations, in full compliance of all lead-free plumbing laws.
• 1/4-turn, self-cleaning ball valve design resists mineral and scale build-up, assuring positive shutoff and re-opening.
• The ball-seat operation and dual O-ring stem seal features, out-perform traditional multi-turn stop designs.

Product Highlights

Durable forged brass body ensures longevity, providing an an ideal upgrade for worn or leaking angle stop valves.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-607NLB
• Country of Origin: Import

Technical Specifications

• Body Material: Brass
• End Style: CPVC x Compression
• Media: Water
• Nominal Size: 1/2 x 3/8 in
• Pressure Rating: 125 psi CWP
• Series: T-595NL
• Softgoods Material: NBR
• Temperature Rating: 120 deg F
• Trim Material: Brass/EPDM
• Type: 1/4-Turn Ball
