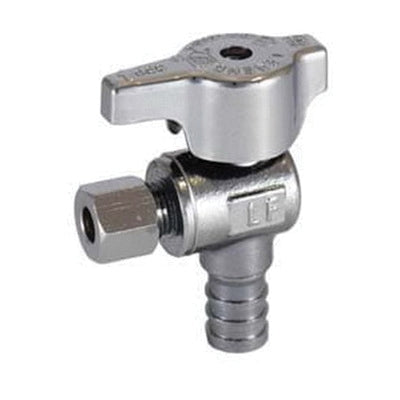

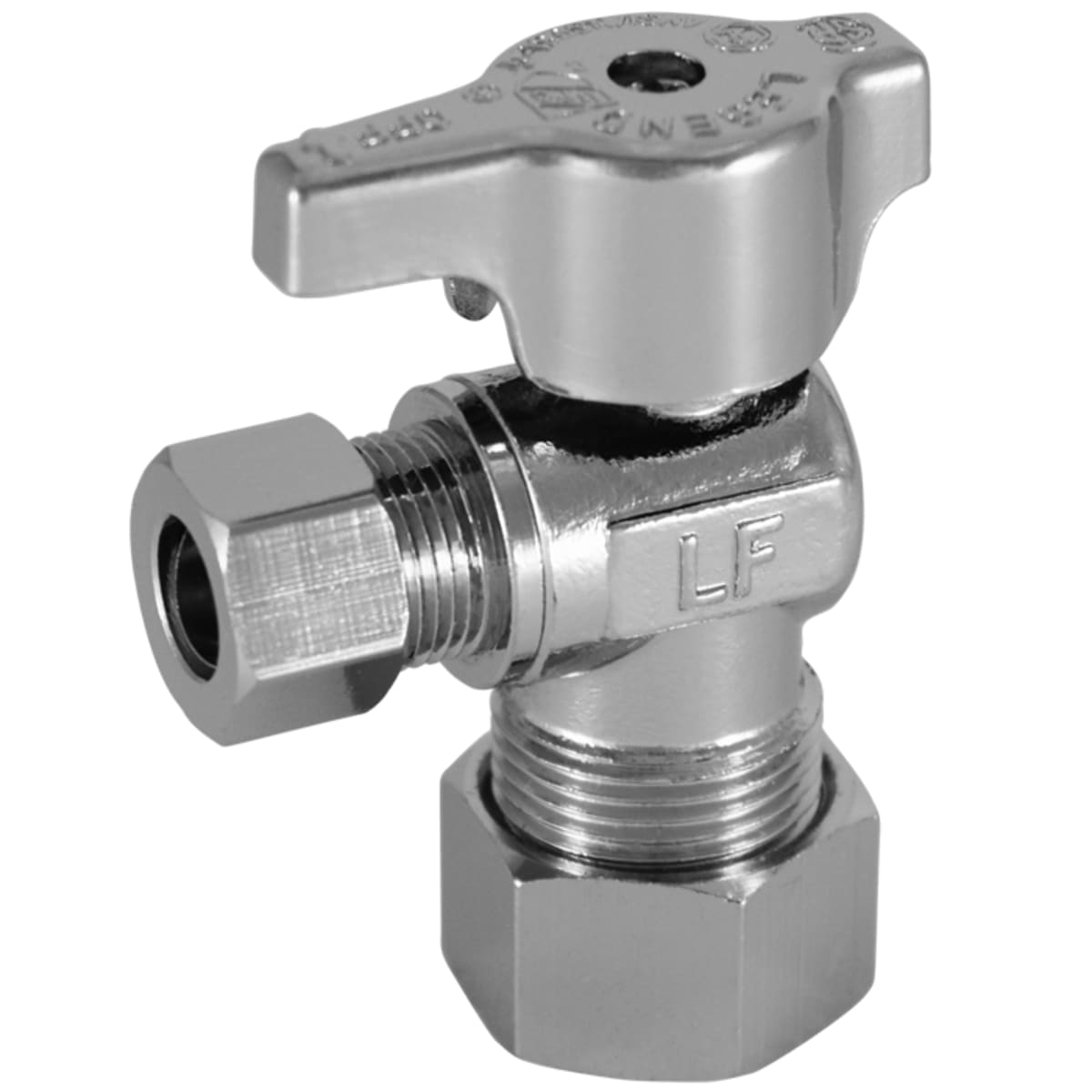

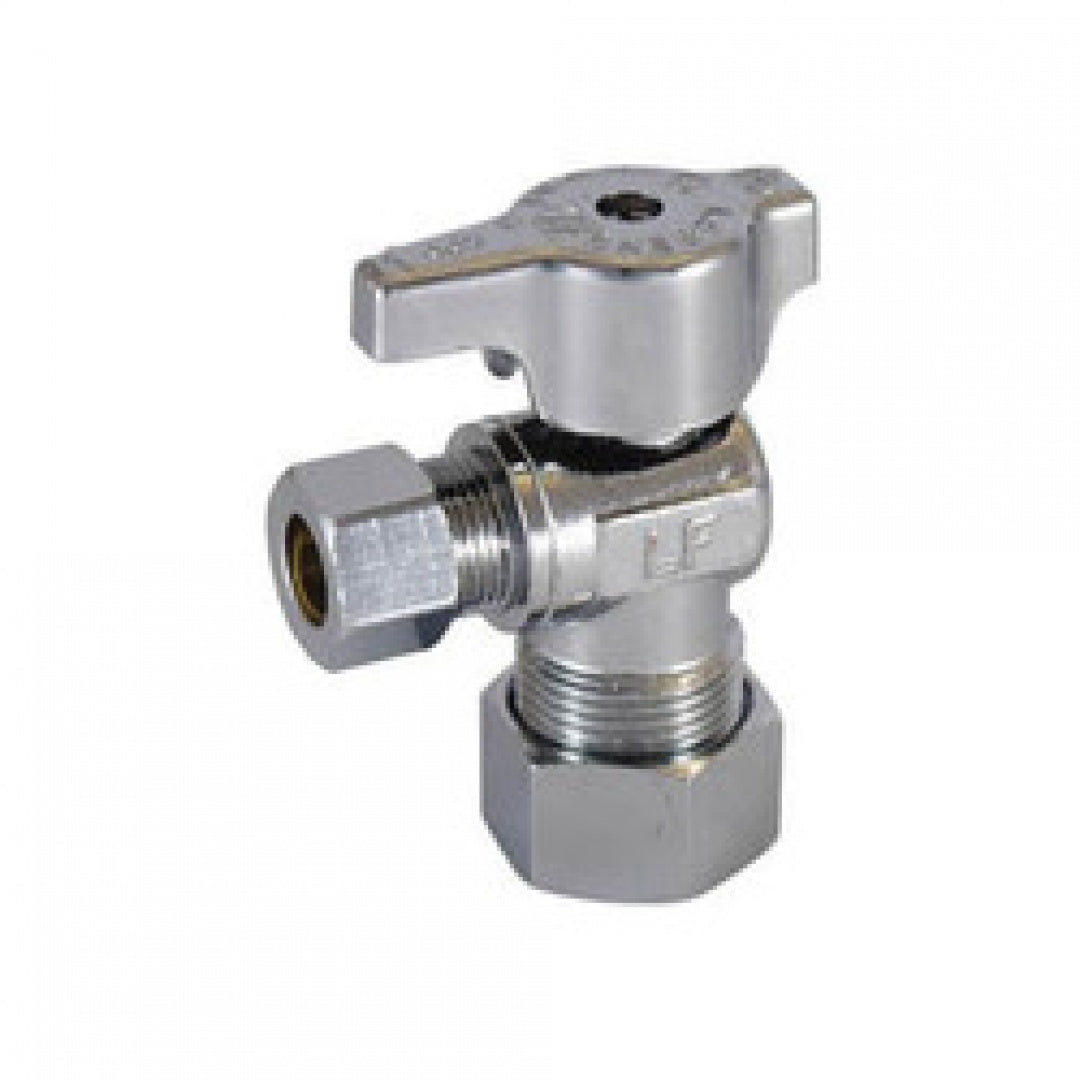

Legend Valve 114-604NL 5/8ODx3/8OD T595 No Lead Chrome Brass 1/4 Turn Angle Stop Valve

Product Description

The Legend Valve 114-604NL T-596 is a 1/4 turn lead free Chrome Supply Stop. It features a straight design for water flow control to household plumbing fixtures and appliances like faucets, toilets, dishwashers, ice makers and washing machines. The valve has a 5/8 x 3/8 in size and a 125 CWP rating.

• 1/4 turn
• Lead free
• Chrome

Product Highlights

This lead-free chrome supply stop offers quarter-turn operation for easy water flow control to household fixtures and appliances.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 114-604NL
• Country of Origin: Import

Technical Specifications

• Brand: Legend Valve
• Ratings: 125 CWP
• Size: 5/8 x 3/8 in
• Valve Type: Quarter Turn Angle Supply Stop
• Width: 2-2/5 in
• Height: 1-1/3 in
• Length: 3 in
• Configuration: OD x OD
• Package Quantity: 1
• Manufacturers Part Number: 114-604NL
• Body Material: Brass
• Domestic/Import: Import
• End Style: Compression
• Finish: Polished Chrome
• Media: Water
• Pressure Rating: 125 psi
• Series: T-595NL
• Softgoods Material: Buna-N/EPDM
• Temperature Rating: 120 deg F
• Trim Material: Brass
• Type: 1/4 Turn
• Connection Size: 5/8 x 3/8 in
• Connection Type: Compression
• Item Name: Angle Stop Valve
• Material: Brass
• Model: T-595NL
• Actuation Type: 1/4 Turn
• Applicable Standard: ANSI/NSF 61-G, UPC, IAPMO, ISO 9002
• Application: Potable Water
• End Connection: Compression x Compression
• End to End Distance: 2.52 Inch
• Handle Material: Chrome Plated Zinc
• Inclusions/Features: 1/4 Turn Handle, Handle Screw, Self-Cleaning Ball Valve Design, O-Ring Stem Seal, Compression Ferrule, Compression Nut, End Adapter
• Nominal Size: 5/8 Inch x 3/8 Inch
• Seat Material: EPDM Rubber
• Actuator Type: Handle
• Manufacturer #: 114-604NL
