Legend Valve 114-603nl Angle Stop Valve 1/2 Fip X 3/8 Od

Product Description

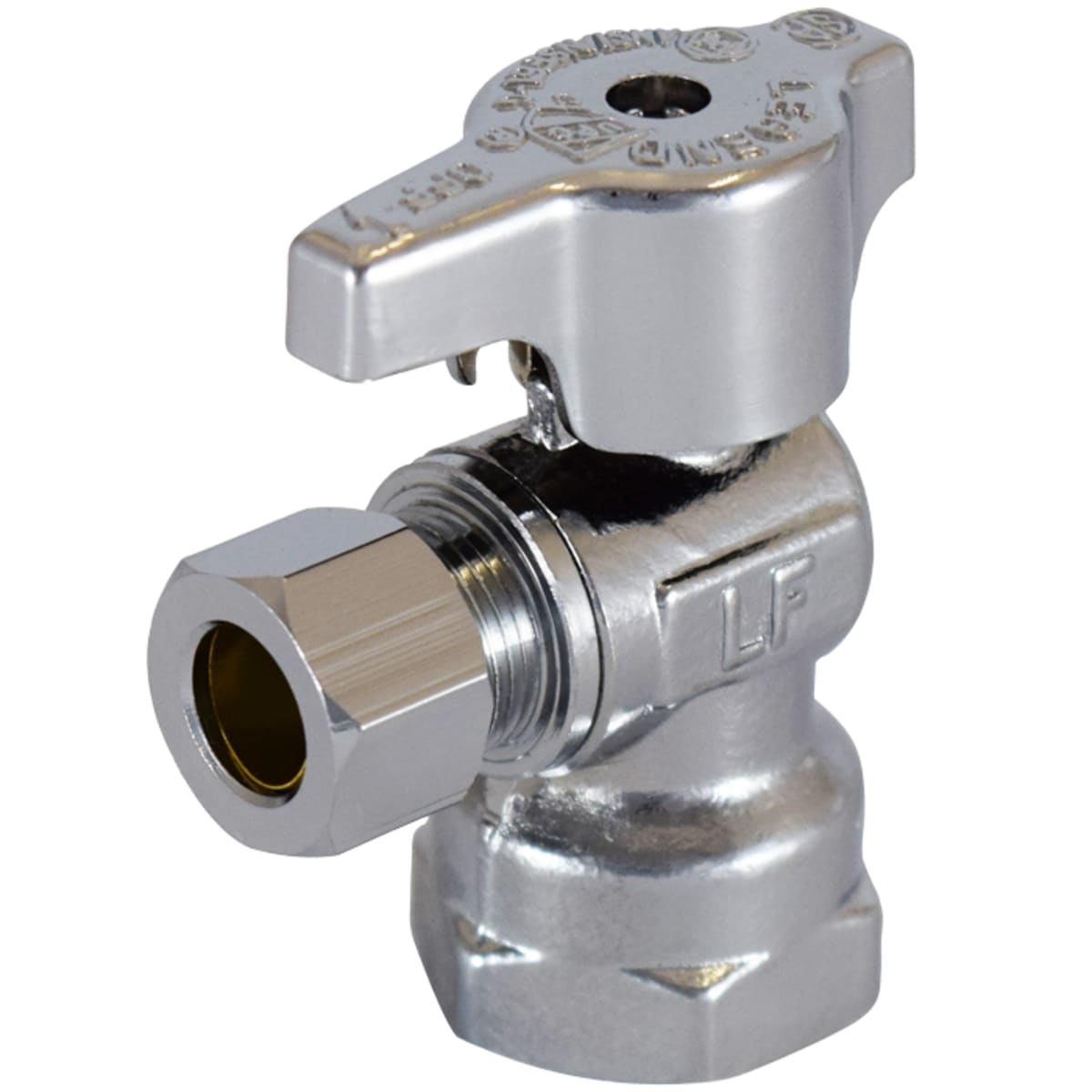

The LEGEND VALVE 114-603nl is a no-lead chrome brass quarter-turn angle stop valve designed for residential and light commercial water supply shutoff applications. Built to a 1/2-inch female iron pipe (FIP) inlet and 3/8-inch OD compression outlet, this valve provides a reliable, code-compliant shutoff point between the supply line and fixtures such as faucets, toilets, and supply tubes. The quarter-turn ball-style operation allows fast, full shutoff without multiple handle rotations. Chrome finish suits exposed under-sink or wall-mount installations where appearance matters.

This angle stop valve is commonly installed under sinks, behind toilets, and at other point-of-use water supply connections in residential plumbing systems. The 1/2-inch FIP inlet threads directly onto standard copper or galvanized supply stubs, while the 3/8-inch OD compression outlet accepts standard fixture supply tubes. The no-lead brass construction meets requirements for potable water service in jurisdictions that enforce no-lead plumbing standards.

Key Features

• No-lead brass construction compliant with potable water regulations
• Quarter-turn operation for fast, positive shutoff
• Chrome finish for clean appearance in exposed installations
• 1/2-inch FIP inlet by 3/8-inch OD compression outlet configuration
• Angle-body design routes supply from wall stub to vertical fixture supply tube

Compatibility

Designed as an OEM-style replacement or new-installation angle stop valve for standard residential potable water supply shutoff applications requiring a 1/2-inch FIP inlet and 3/8-inch OD compression outlet.

Installation Notes

A licensed plumber typically installs or replaces angle stop valves in compliance with local plumbing codes and the International Plumbing Code (IPC). Shut off the main water supply and relieve line pressure before removing an existing valve. Use appropriate thread sealant tape or compound on the FIP threads and verify the compression fitting is fully seated before restoring pressure. Inspect for leaks at both connections immediately after pressurization.

Technical Specifications

• Inlet Connection: 1/2 inch Female Iron Pipe (FIP)
• Outlet Connection: 3/8 inch OD Compression
• Material: No-Lead Chrome Brass
• Operation: 1/4 Turn
• Body Style: Angle
• Finish: Chrome
• Country of Origin: China

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-603nl
