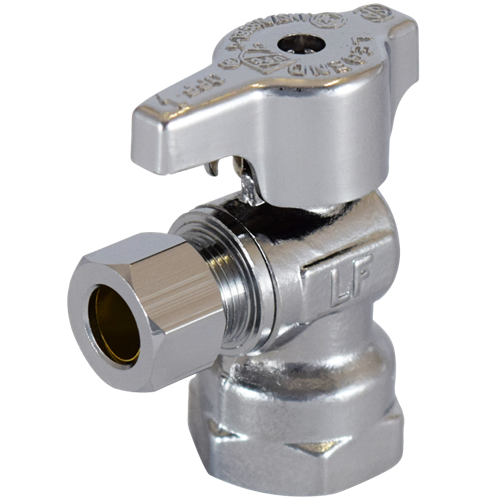

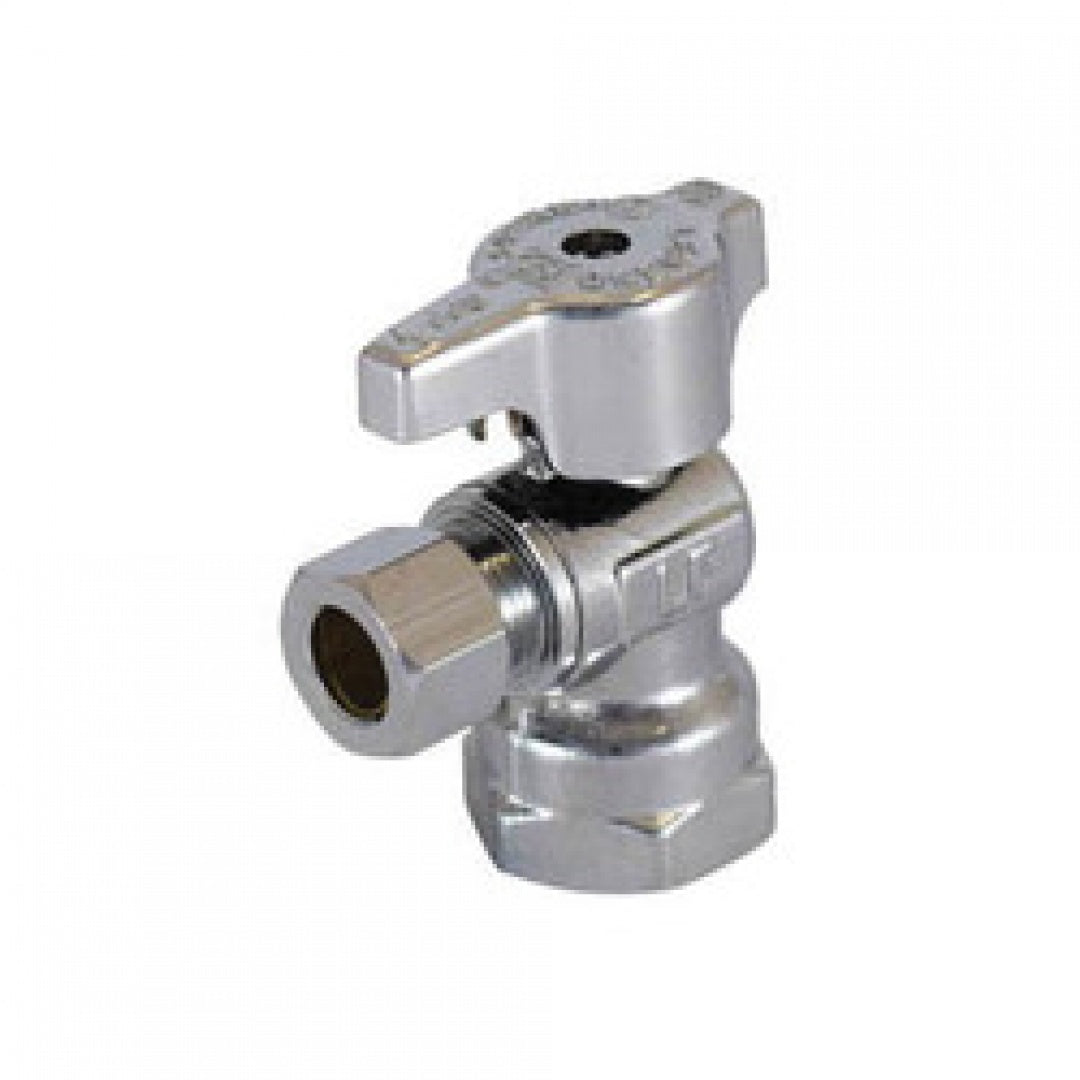

Legend Valve 114-602NL T-595NL Chrome-Plated Brass 1/4 Turn Angle Stop Valve 3/8 in, FNPT x Compression

Product Description

The Legend Valve 114-602NL is a T-595NL chrome-plated brass 1/4 turn angle stop valve with 3/8 in, FNPT x Compression, and is lead-free. The lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws. Compact, forged brass bodies are both durable and decorative.

• Chrome-Plated Brass
• 1/4 Turn Angle Stop Valve
• 3/8 in, FNPT x Compression
• Lead-Free

Product Highlights

This angle stop valve is an ideal upgrade replacement for worn, leaking stops that won't close completely. Self-cleaning ball valve design resists mineral and scale build-up.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 114-602NL
• Country of Origin: China

Technical Specifications

• Body Material: Brass
• End Style: FNPT x Compression
• Finish: Polished Chrome
• Nominal Size: 3/8 in
• Pressure Rating: 125 psi
• Series: T-595NL
• Temperature Rating: 120 deg F
• Trim Material: Brass/EPDM
• Type: 1/4 Turn
• Connection Size: 3/8 in
• Material: Brass
• Model: T-595NL
• Actuator Type: Handle
• Softgoods Material: EPDM Rubber Seat
• Valve Operation: Manual
• MPN: 114-602NL
• Ratings: 125 CWP
• Configuration: FNPT x Compression (OD)
