Legend Valve 114-403 Dual Outlet Angle Stop 110 Psi

Product Description

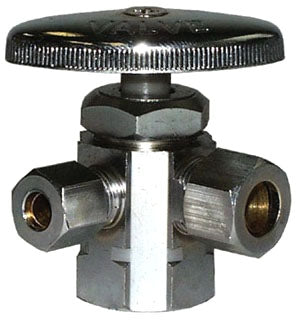

The LEGEND VALVE 114-403 is a dual-outlet chrome-plated brass angle stop valve designed for shutoff and flow control in residential and light commercial plumbing supply lines. It features a 1/2 inch FIP inlet and two 3/8 inch OD compression outlets, making it suitable for applications that require a single shutoff point feeding two fixtures or supply lines simultaneously. The valve is rated at 110 psi WOG (water, oil, gas) and uses a handwheel actuation for reliable manual operation. The chrome-plated brass body provides corrosion resistance in exposed under-sink and vanity installations.

This angle stop is typically installed under sinks, lavatories, and vanities where a single 1/2 inch IPS supply stub-out must serve two fixtures at once, such as a faucet hot or cold line paired with a secondary outlet. It is well-suited for residential remodel and new construction plumbing work where dual supply connections are needed from a single wall or floor stop. Licensed plumbers and experienced plumbing tradespeople handle this type of installation as part of fixture rough-in and trim-out work.

Key Features

• Dual 3/8 inch OD compression outlets allow two supply connections from a single 1/2 inch IPS inlet
• Chrome-plated brass body resists corrosion and suits exposed installations
• 110 psi WOG pressure rating for reliable shutoff service
• Handwheel actuation provides positive, tactile shutoff control
• 1/2 inch FIP inlet connection for standard wall or floor supply stub-outs

Compatibility

Designed as an OEM-style replacement or new-installation angle stop for residential plumbing systems with 1/2 inch FIP supply stub-outs requiring dual 3/8 inch OD compression outlets. Model T-587 per manufacturer designation.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the main water supply and relieve line pressure before removing any existing stop valve. Compression fittings should be hand-tightened and then snugged with a wrench — do not overtighten, as this can crack the compression sleeve or fitting body. Verify the FIP threads are clean and use an appropriate thread sealant or tape on the inlet connection before torquing.

Technical Specifications

• Body Material: Chrome-plated brass
• Pressure Rating: 110 psi WOG
• Inlet Connection: 1/2 inch FIP
• Outlet Connections: 3/8 inch OD compression x 3/8 inch OD compression
• Actuation Type: Handwheel
• Nominal Size: 1/2 inch x 3/8 inch x 3/8 inch
• Weight: 0.36 pounds

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-403
