Legend Valve 114-207nl 1/2 cpvcx 3/8 od t-582 no lead

Product Description

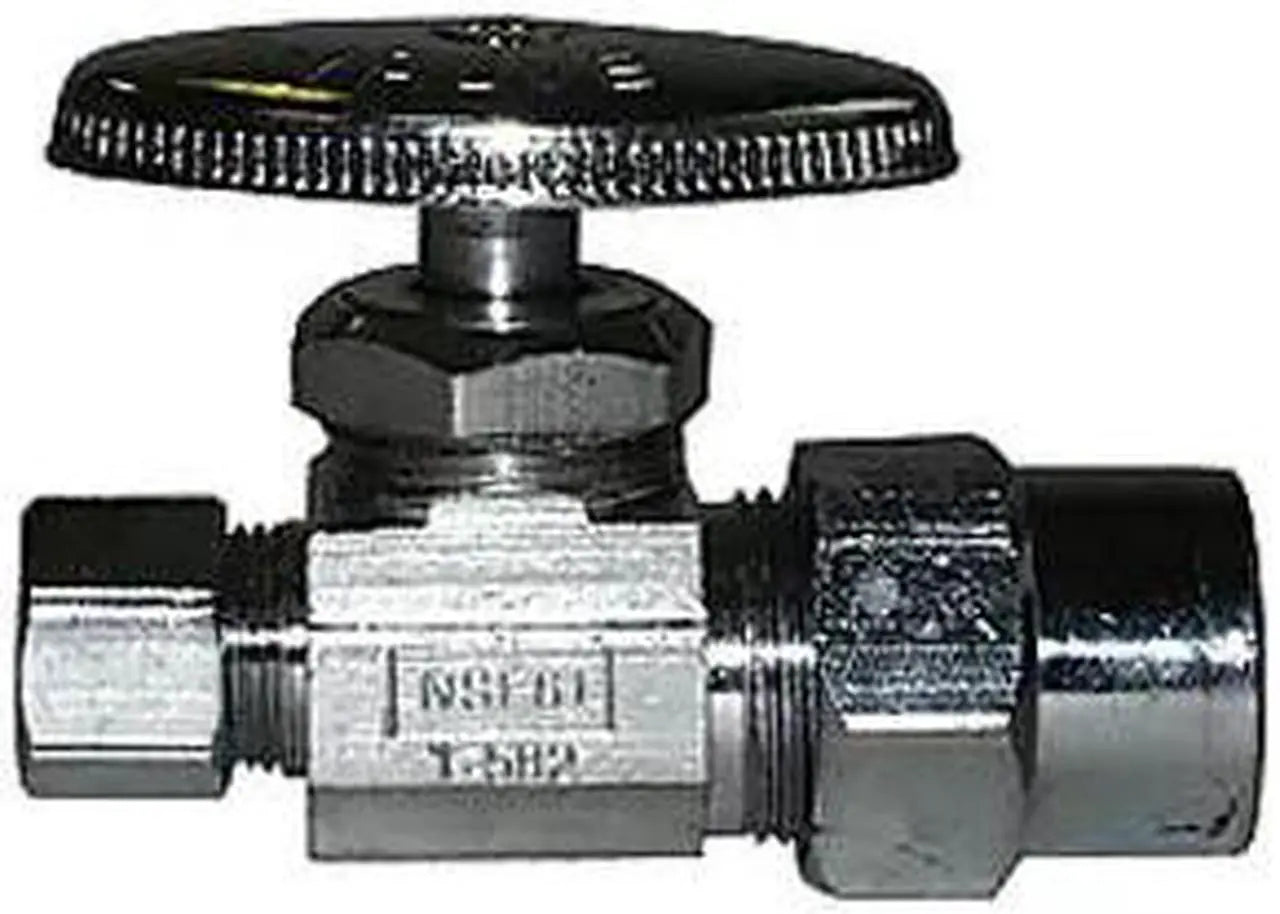

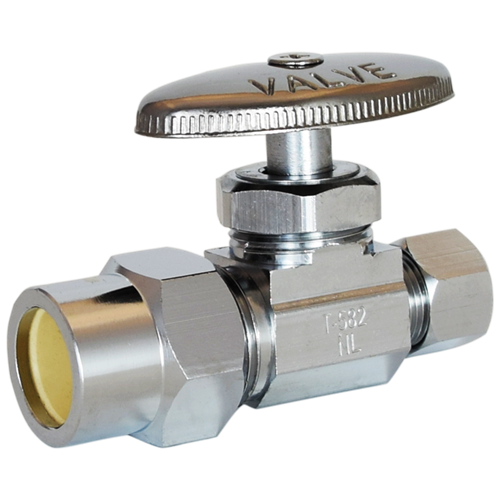

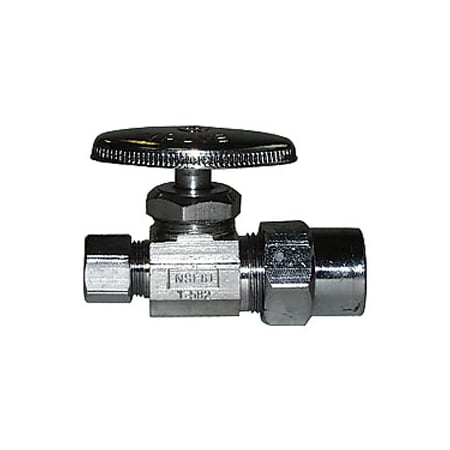

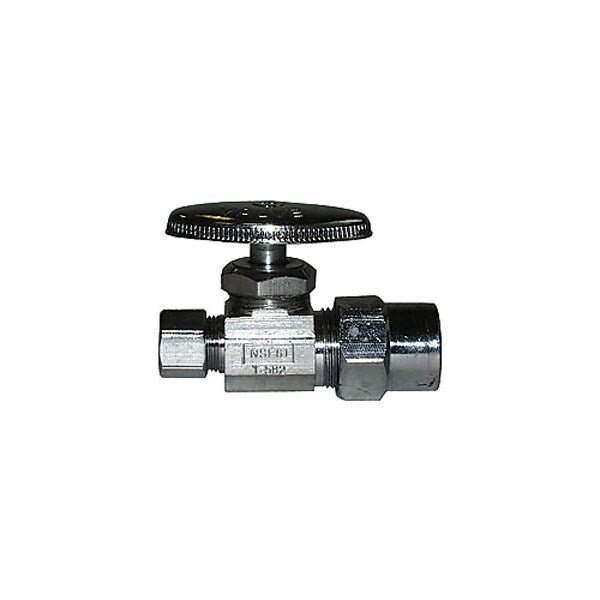

The LEGEND VALVE 114-207NL is a lead-free, multi-turn straight supply stop valve from the T-582NL (PR-14) series. It features a forged brass body and CPVC x compression end style. Suitable for potable water installations, this valve ensures compliance with lead-free plumbing laws.

• Lead free design suitable for potable water installations.
• Individually packaged to prevent component loss and contamination.
• Thermoplastic stems resist scale and debris build-up.

Product Highlights

This lead-free stop valve is ideal for potable water systems, offering durability and protection against contamination and scale build-up.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-207NL
• Country of Origin: Indonesia

Technical Specifications

• Body Material: Brass
• End Style: CPVC x Compression
• Finish: Polished Chrome
• Media: Water
• Nominal Size: 1/2 x 3/8 in
• Pressure Rating: 110 psi
• Series: T-582NL (PR-14)
• Softgoods Material: Buna-N/EPDM
• Trim Material: Acetyl Copolymer
• Type: Multi-Turn
• Manufacturer: LEGEND VALVE
• Size: 1/2" x 3/8"
• Standards: 110 CWP
• Connection Type: CPVC x OD
• Configuration: CPVC x Compression (OD)
• Application Type: For Potable Water Installations
