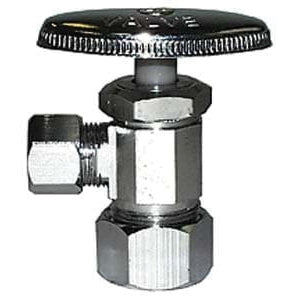

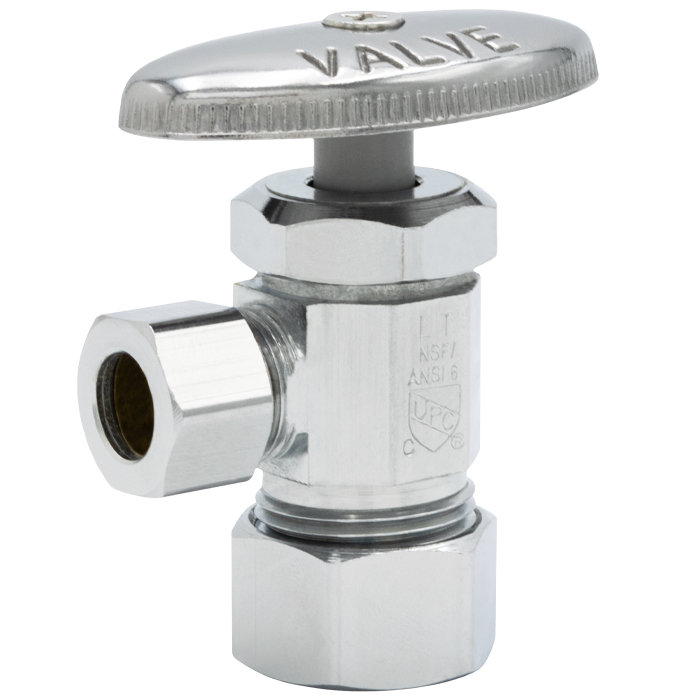

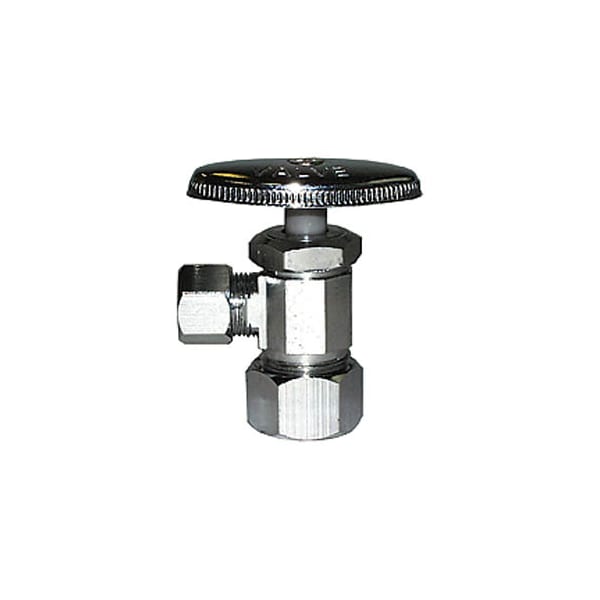

Legend Valve 114-116NL T-581NL Angle Supply Stop Valve (5/8 x 1/4 in Compression)

Product Description

Legend Valve 114-116NL is a T-581NL multi-turn angle supply stop valve with 5/8 x 1/4 in compression connections intended for no-lead potable water installations. The valve features a compact one-piece machined brass body, chrome-plated finish, acetal copolymer thermoplastic stem for scale resistance, and a 110 psi CWP pressure rating suitable for icemaker or appliance shutoff applications.

• 5/8 x 1/4 in compression (OD x OD) connections; compact machined one-piece brass body
• No-lead chrome-plated forged brass construction with acetal copolymer thermoplastic stem and chrome-plated die cast brass handle
• Certified to ANSI/NSF 61-G and ANSI/ASME B16.18; rated 110 psi CWP; individually packaged

Product Highlights

Lead-free chrome-plated brass multi-turn angle stop valve, 5/8 x 1/4 in compression connections, acetal copolymer stem, 110 psi CWP, ANSI/NSF and ASME certified.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-116NL
• Country of Origin: Indonesia

Technical Specifications

• Brand: Legend Valve
• Manufacturer Part Number: 114-116NL
• Model: T-581NL
• Item Name: Angle Supply Stop Valve
• Type: Multi-Turn Angle Stop Valve
• Connection Size: 5/8 x 1/4 in
• Connection Type: Compression (OD x OD)
• Material: Lead-free forged brass
• Finish: Chrome-plated
• Stem Material: Acetal copolymer (thermoplastic)
• Operator Type: Chrome-plated die cast brass handle
• Pressure Rating: 110 psi CWP
• Dimensions: 1.51 in L x 2.45 in H (closed)
• Standards/Certifications: ANSI/NSF 61-G; ANSI/ASME B16.18; UPC listed
• Applications: No-lead potable water installations; icemaker supply shutoff
• UPC: 662545087245
• Country of Origin: Indonesia
