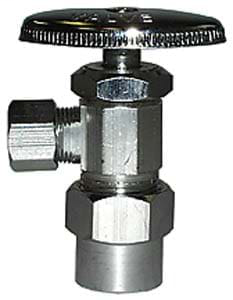

Legend Valve 114-107NL Angle Stop Valve 1/2 Cpvc X 3/8 Od

Product Description

The LEGEND VALVE 114-107NL is a no-lead chrome brass angle multi-turn stop valve designed for residential and light commercial plumbing applications. It features a 1/2 inch CPVC inlet connection and a 3/8 inch OD compression outlet, making it a direct-fit supply stop for sinks, toilets, and similar fixtures. The chrome finish suits exposed under-sink installations. Built to no-lead standards, this valve meets the material compliance requirements now enforced in most state and local plumbing codes. Multi-turn operation provides precise, controlled shutoff without the snap-action wear associated with quarter-turn designs.

This angle stop valve is suited for under-sink and toilet supply line connections where a CPVC supply pipe transitions to a 3/8 inch OD flexible or rigid supply line. It is intended for installation in potable water systems requiring no-lead brass components. Licensed plumbers and pipefitters typically install this valve during new construction rough-in or fixture replacement service calls.

Key Features

• No-lead chrome brass construction meets current potable water material standards
• 1/2 inch CPVC inlet connects directly to CPVC supply piping without additional adapters
• 3/8 inch OD compression outlet fits standard fixture supply lines
• Angle configuration routes flow 90 degrees for wall-supply to fixture installations
• Multi-turn stem provides smooth, incremental shutoff and reduced seat wear
• Chrome finish suitable for exposed installations under sinks and behind toilets

Compatibility

Designed as an OEM-style replacement or new-installation angle stop valve for residential and light commercial plumbing systems with 1/2 inch CPVC supply piping and 3/8 inch OD outlet connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the main water supply and relieve line pressure before removing an existing valve or making any connections. When connecting to CPVC piping, use only CPVC-rated solvent cement and follow the manufacturer cure time requirements before pressurizing the line. Do not use pipe wrenches directly on the chrome body — use a strap wrench or protect the finish with a cloth to avoid damage during tightening.

Technical Specifications

• Inlet Connection: 1/2 inch CPVC
• Outlet Connection: 3/8 inch OD compression
• Body Material: No-lead chrome brass
• Valve Type: Angle multi-turn stop
• Lead-Free Compliant: Yes
• UPC: 662545087207

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 114-107NL
