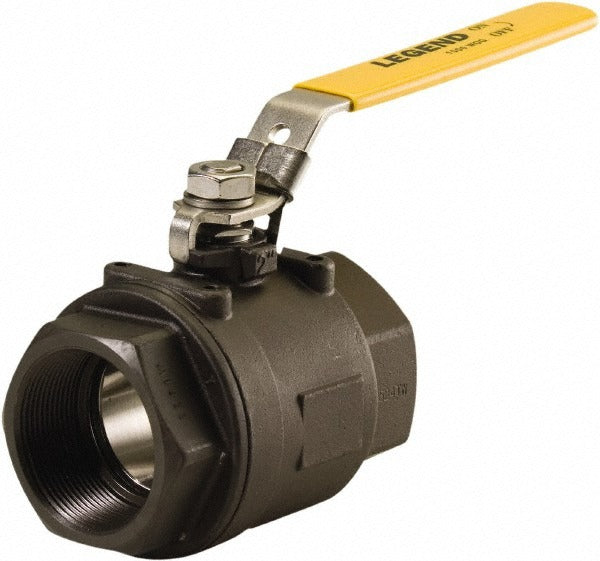

Legend Valve 113-228 Full Port Ball Valve 2 in Fnpt

Product Description

The LEGEND VALVE 113-228 is a 2-inch full port manual ball valve designed for inline shutoff and flow control in water, oil, and gas piping systems. Built with a 2-piece carbon steel body and stainless steel trim, it delivers reliable service in demanding trade applications. The full port design minimizes pressure drop across the valve. A locking lever handle prevents accidental operation, making it well suited for mechanical rooms, equipment isolation, and any service point where unintended actuation is a concern. PTFE seats and seals provide low-friction operation and resistance to a wide range of media. Licensed plumbers and pipefitters are the typical installers for this type of valve.

This valve is rated for water, oil, and gas service, covering the most common piping applications found in commercial and residential mechanical systems. The FNPT x FNPT end connections allow direct threaded installation into standard female NPT pipe runs. The 2-piece body construction simplifies field servicing when maintenance is required. At 6.7 pounds, the valve is substantial enough for permanent installation in fixed piping systems rather than temporary or flexible connections.

Key Features

• Full port design minimizes flow restriction and pressure drop
• 2-piece carbon steel body for durability in industrial and commercial environments
• Stainless steel trim and handle resist corrosion across water, oil, and gas media
• PTFE (polytetrafluoroethylene) seats and seals provide low-friction, long-service operation
• Locking lever handle prevents accidental valve actuation
• FNPT x FNPT connections for direct integration into standard threaded pipe runs

Compatibility

Designed as an OEM-style replacement or new-installation full port ball valve for 2-inch threaded piping systems handling water, oil, or gas service.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, IPC, and IFGC requirements for the service medium. Shut off and depressurize the piping system completely before installing or replacing any ball valve. Apply thread sealant or tape rated for the specific media to all FNPT connections. Verify the locking lever is in the closed position during installation to prevent unintended flow.
