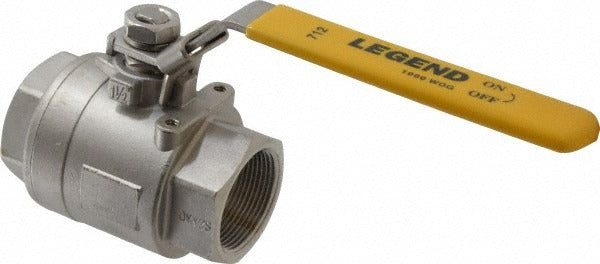

Legend Valve 113-147 Ball Valve 1-1/2 in Stainless Steel

Product Description

The LEGEND VALVE 113-147 is a standard manual ball valve designed for reliable on/off flow control in fluid piping systems. Built from 316 stainless steel throughout the body, trim, and handle, this valve is suited for applications where corrosion resistance is critical. It features a full port design, which minimizes pressure drop across the valve. The seat is constructed from reinforced polytetrafluoroethylene (PTFE) for chemical compatibility and long-term sealing performance. A locking lever handle prevents accidental actuation, making it appropriate for both permanent installations and service environments where valve position needs to stay fixed.

This valve is used in residential and commercial plumbing, hydronic heating, industrial fluid systems, and process piping where a 1-1/2 inch female-threaded connection is required on both ends. The FNPT x FNPT configuration makes it a direct thread-in installation for standard NPT pipe. The full port bore supports unrestricted flow and is well suited for systems where flow velocity and pressure drop are a concern. Licensed plumbers and pipefitters are the typical installers on commercial jobs; experienced tradespeople handle residential installs.

Key Features

• 316 stainless steel body, trim, and handle for superior corrosion resistance
• Full port design minimizes flow restriction and pressure drop
• FNPT x FNPT end connections fit standard 1-1/2 inch NPT pipe threads
• Locking lever handle prevents unintended valve operation
• Reinforced PTFE seat provides chemical resistance and reliable sealing
• Two-piece body construction for ease of inspection and maintenance

Compatibility

Designed as an OEM-style replacement or direct installation fitting for 1-1/2 inch NPT threaded piping systems requiring a standard full port stainless steel ball valve.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local codes and the International Plumbing Code. Shut off and depressurize the system fully before threading the valve into the line. Apply appropriate thread sealant or PTFE tape to the male NPT threads before engagement. Do not overtighten threaded connections, as this can damage the valve body or mating fittings.
